Hy-Tuf axles are optimized for Drag Race use only
See our Alloy axle packages for street / track applications
Hy-Tuf Applications & Splines Available
Chevy 8.2 10 bolt… 28 / 33
Chevy 8.5 10 bolt… 28 / 30 / 33
Chevy 12 bolt car… 30 / 33 / 35
Dana 60……………… 35 / 40 *
Ford 8.8……………… 28 / 31 / 33 / 35
Ford 9″……………….. 28 / 31 / 33 / 35 (requires 3.250″ bore case) / 40 *
Mopar 8 3/4″……….. 30 / 35
Olds/Pontiac……….. 31 / 35
* For 40 spline packages- See P1014 / P1016
Notes For This Axle Package
All Chevy & Ford 8.8 require replacement 3.150″ housing ends
Packages with C-clip Eliminator kit for OEM housing ends are shown below

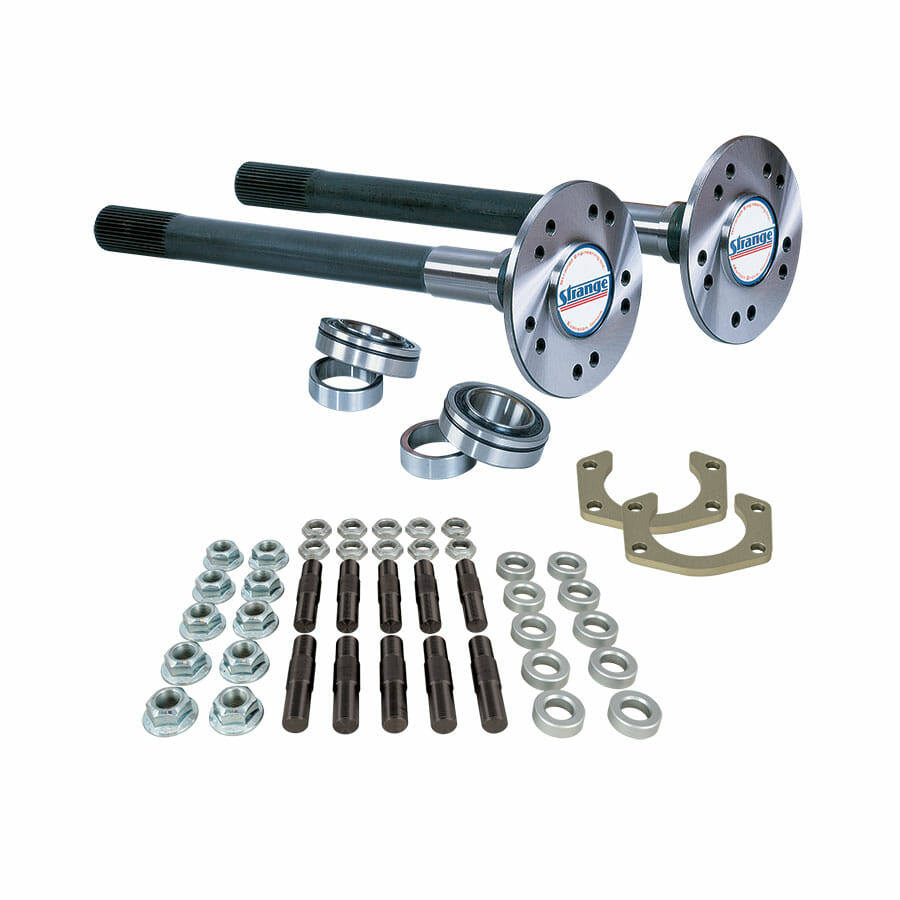

This Pro Race Axle Package Includes:
Hy-Tuf Ultra Strength Axles- A1000
– Forged from low carbon, high manganese, high nickel, and high molybdenum steel
– Majority of machining performed before heat treat to provide consistent hardness
– Thru hardened to Rc 45-48 to maximize the material's torsional strength
– Finish machined after heat treat to ensure accuracy
– Choice of 28 up to 35 spline
– Lengths up to 34 7/8″
– Choice of bolt circle
– Forged in the USA
– Designed and machined by Strange Engineering
Sealed Ball Bearings- A1019 / A1021 / A1023 * / A1022 * / A1022OB *
– Low friction bearings designed specifically for Drag Racing
– O.D. grooved for o-ring to eliminate inner axle seal
– Includes o-rings and locking collars
* These bearings include retainer plates
Retainer Plates- A1016 / A1018 / A1114 / H1147B
– For A1019 or A1021 bearings
– New plates ensure proper axle retension
Choice of 5/8″-18 Stud Kit
Bolt Style – See A1027
– 5/8″-18 x 3″ Grade 8 fully threaded bolts
– Thin .200″ hex head provides additional clearance
– Width choice of anti-marring/spacer washers
– Includes threaded sleeves, installation tool & flanged lug nuts
Shank Style – See A1036 / A1037 / A1037MD / A1038 / A1039 / A1041
– 5/8″-18 chrome moly stud available in six different shank lengths
– Width choice of anti-marring/spacer washers
– Includes thin head self locking inner nuts & flanged lug nuts
Options
Install axle bearings & retainer plates…………. See A1008R
Five 1″ round lightening holes in axle flange… See A1003
Ultra Light flange………………………………………. See A1006
Gun-drill 35 spline axles……………………………. See A1005 / A1005AC
Other Pro Race Axle Packages
With 1/2″ studs………. See P1008
With spool…………….. See P2005 / P200558
Pro Race Axle Packages With C-Clip Eliminator Kit
OEM Chevy ends…………………. See P1011GDR58
OEM Ford 8.8 ends… See P1011F8658 / P1011F9458 / P1011F0558
Pro Race 40 spline Axle Packages
Gundrilled…. See P1014
Solid…………. See P1016
With spool…. See P2015 / P2017
Street / Strip / Oval Track Axle Package With Eliminator Kit
OEM Chevy ends……………………………… See P1011GOT58
Alloy Street / Track Axle Packages
With 1/2″ studs… See P3102 / P3502
With 5/8″ studs… See P310258 / P350258
With spool……….. See P3102S / P310258S / P3502S / P350258S
