Small Ford Axle Bearing With Retainer Plate
For Strange Axles With 1.5635" Bearing Area


Part Number: A1023

Sold as Each

Sealed Ball BearingA1023A
• 2.834″ OD x 1.562″ ID
• Outer seal & O-ring
• Eliminates inner axle seal
• Includes locking collar

Retainer PlateA1023B
• 2024 T-351 aluminum .250″ thick
• 3 3/8″ x 2″ bolt pattern with holes for 3/8″ studs

This retainer plate is essential when using drum brakes and this bearing
It starts out flat until the axle bearing is fully seated
Further tightening causes deflection until it secures the backing plate

Cold Press Only
Should be pressed on at room temperature
Heating can reduce holding power and ruin seal surface
Tack-welding can alter the axles heat treating and cause cracking

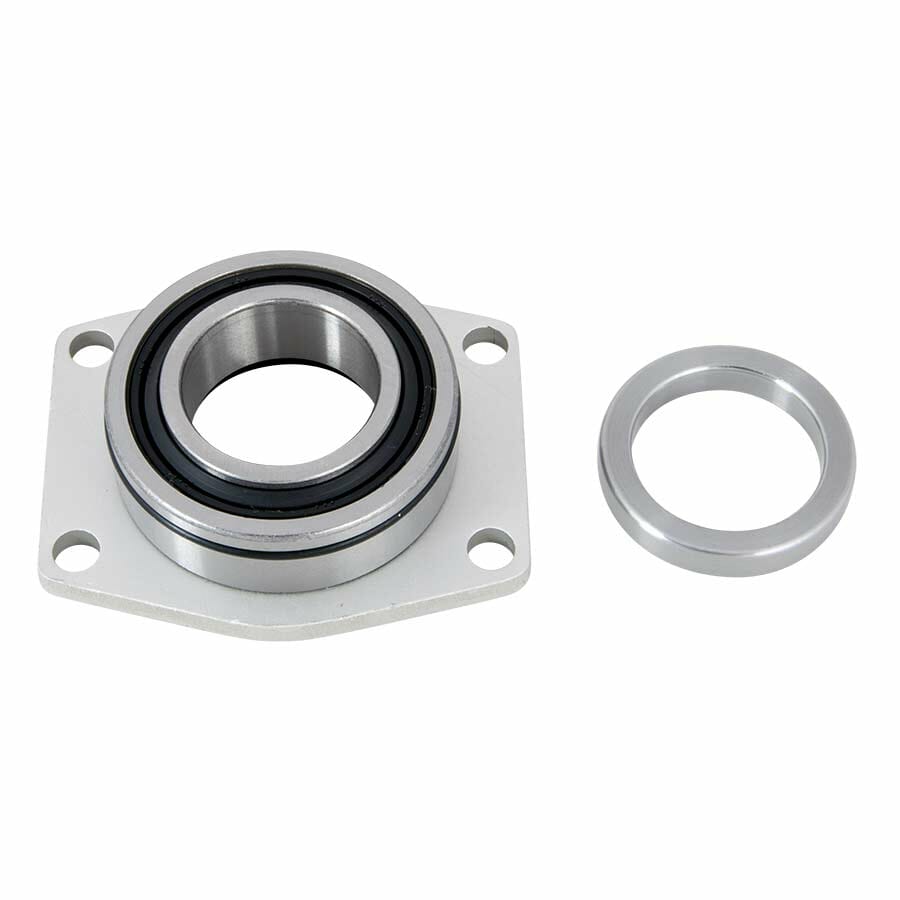

2.834″ x 1.562″ small Ford axle bearing with retainer plate

Parts List and Installation Guide pdf File
