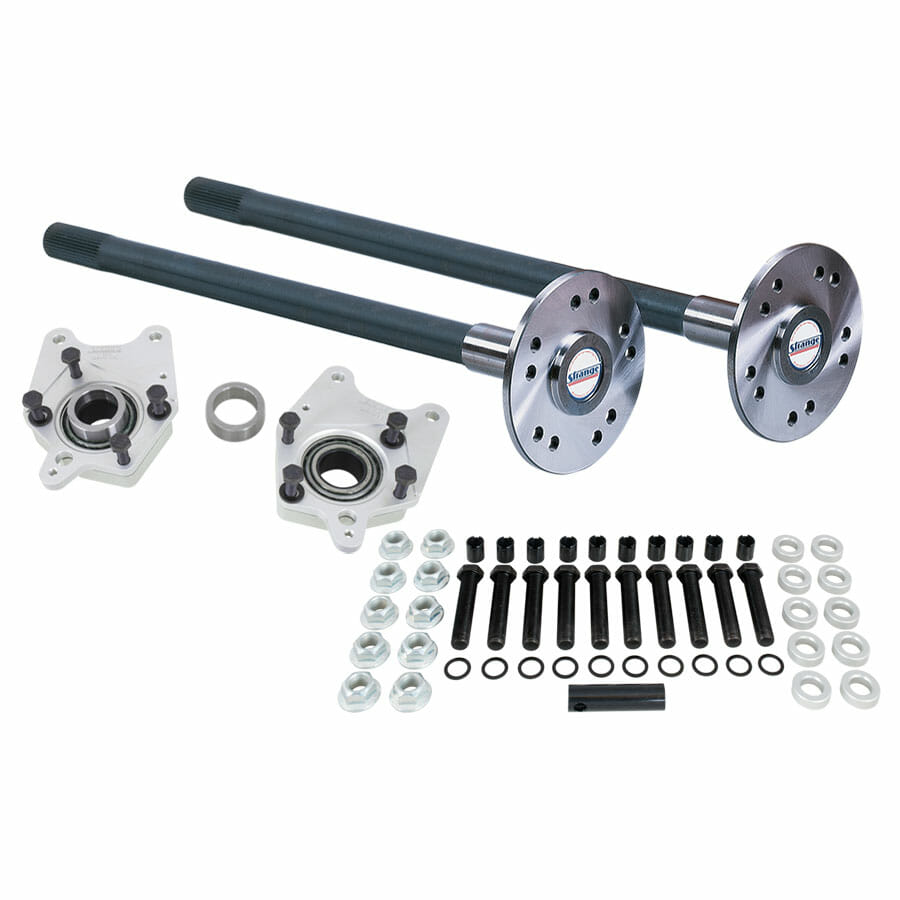

05-14 Mustang Drag Race Axle Package
31, 33 or 35 Spl Axles, Eliminator, & 5/8" Studs

$889.00

Part Number: P1011F0558


Designed Specifically For Drag Racing
Thru-hardening maximizes the torsional strength of Hy-Tuf axles
This also reduces the flexibility necessary for street driving

Packages For Street & Track – P3109F0558 / P3509F0558

Application
2005-2014 Mustang
With OEM housing ends and GT disc brakes
Rotors will need to be drilled to suit larger studs

Aftermarket Differentials & Spools
33 spline will vary on design
Specify manufacturer to ensure proper fit

35 spline requires 30° pressure angle
Will not fit Mark Williams spools

Includes

Hy-Tuf Ultra Strength AxlesA1000
• Forged from high nickel, molybdenum and chromium steel
• Increases torsional strength and material toughness
• Manganese added to improve hardness consistency
• Majority of machining performed before heat treat
• Thru hardened to Rc 45-48
• Finish machined after heat treat to ensure trueness
• Choice of 31, 33, or 35 spline
• Custom lengths available at no additional charge
• Choice of bolt circle
• Forged in the USA
• Designed and machined by Strange Engineering

C-Clip Eliminator KitA1099
• Billet aluminum caliper mounts to accept GT brakes
• Aluminum inner halves
• Tapered Unit bearings for long bearing life
• Bearing spacer/reluctor ring adapters
• Locking rings
• Outer seals
• O-rings
• Housing end bolts
• Hardened washers
Reuses OEM caliper mounting bolts

Choice of 5/8″ Bolt Style Stud KitA1027 / A1027S / A1027L
• 5/8″-18 x 3″ Grade 8 fully threaded bolts *
• Thin .200″ hex head provides additional clearance
• Part number suffix determines width of aluminum washers
• No suffix = .4375″ / S = .250″ / L = .688″
• Includes threaded sleeves, installation tool & flanged lug nuts

* Length measured from underneath the hex of the stud
Double Ended 5/8″ Studs Will Not Clear This Eliminator Kit

ABS
This kit will work with factory reluctor rings
Read instructions carefully beforehand as assembly order is crucial

Part Option
Supply pair of reluctor rings – OPAX05

Labor Option
Install eliminator kit – A1008C
Install eliminator kit & studs – A1008SC
Install eliminator kit, studs & reluctor rings – A1008SRC
Lightening holes – A1003
Ultra Light flange – A1006


Description

2005-2014 Ford Mustang 8.8 Pro Race axles, eliminator kit & 5/8″ stud kit
