2005-2014 Mustang 8.8 Alloy Axle Package
35 Spline Axles, Eliminator Kit, & 5/8" Studs

$845.00

Part Number: P3509F0558

Alloy axle packages are optimized for street & track use
See our Hy-Tuf axles for maximum torsional strength for all out Drag Racing

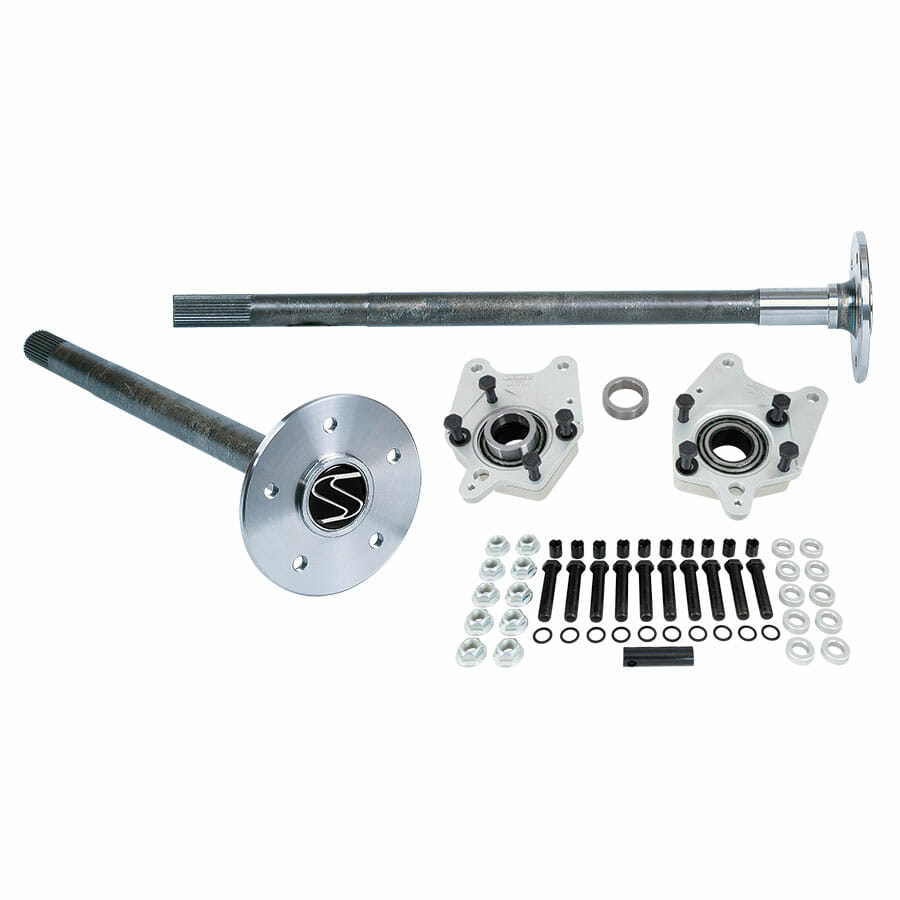

Package Includes

Alloy Axles – A3500
• Forged from modified 1550 premium steel
• Majority of machining performed before heat treat to provide consistent hardness
• Induction hardened to Rc 58-62 to increase torsional strength while remaining ductile
• Finish machined after heat treat to ensure accuracy
• 35 spline with 30° pressure angle
• Custom lengths available at no additional charge
• Choice of bolt circle
• Designed and machined by Strange Engineering
• Forged in the USA

C-Clip Eliminator Kit – A1099ST
• Billet aluminum caliper mounts to accept OEM GT brakes
• Aluminum inner halves
• Timken® Tapered Unit bearings for long bearing life
• Bearing spacer/reluctor ring adapters
• Locking rings
• Outer seals
• O-rings
• Housing end bolts
• Hardened washers for use with OEM caliper mounting bolts

Choice of 5/8″ Bolt Style Stud Kit – A1027S / A1027 / A1027L
• 5/8″-18 x 3″ Grade 8 fully threaded bolts *
• Thin .200″ hex head provides additional clearance
• Width choice of anti-marring/spacer washers
• Includes threaded sleeves, installation tool & flanged lug nuts

* Measured from underneath the hex of the stud

Double Ended 5/8″ Studs Will Not Clear This Eliminator Kit

Notes For ABS
This kit will work with factory reluctor rings
Read instructions carefully beforehand as assembly order is crucial

Options
Supply pair of reluctor rings …………………… OPAX05

Labor Only
Install eliminator kit…………………………………. A1008C
Install eliminator kit & studs…………………… A1008SC
Install studs, reluctors & eliminator kit….. A1008SRC

Other Packages
Alloy
1986-1993…………………………………………….. P3509F8658
1994-2004…………………………………………….. P3509F9458

Pro Race
1986-1993…………………………………………….. P1011F8658
1994-2004…………………………………………….. P1011F9458
2005-2014…………………………………………….. P1011F0558

  • Total

Description

2005-2014 Ford Mustang 8.8 35 spline Alloy axles, eliminator kit & 5/8″ stud kit
