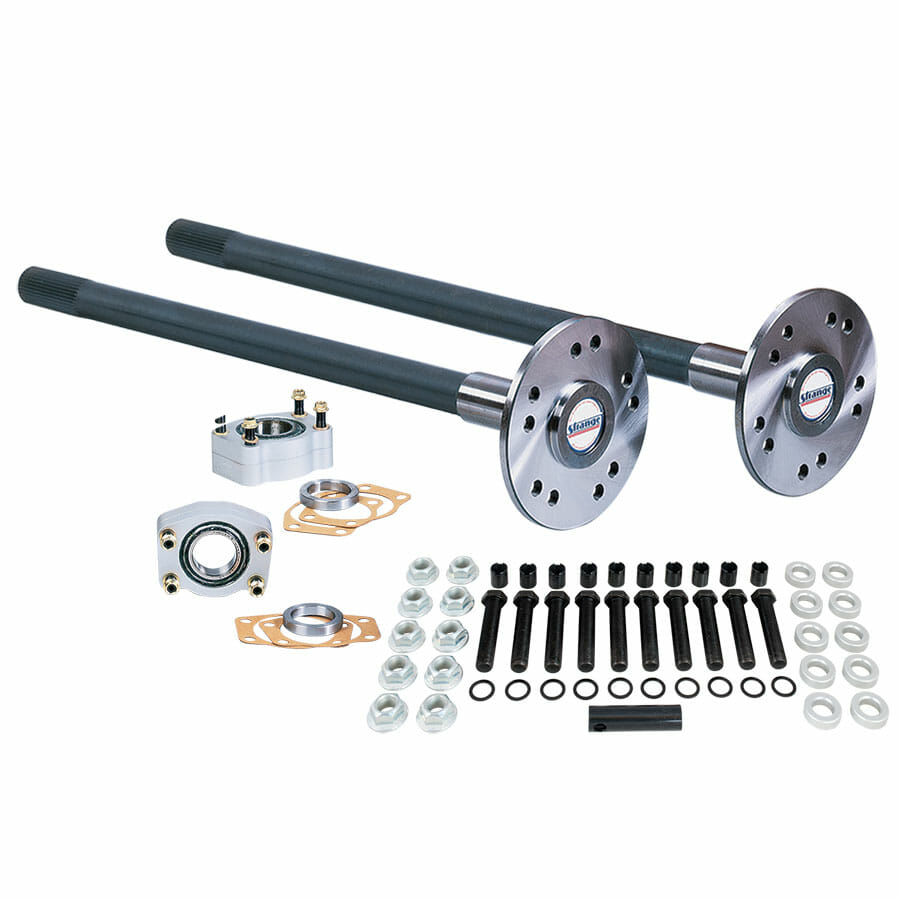

86-93 Mustang Drag Race Axle Package
Axles, Eliminator Kit & 5/8" Studs

$629.00

Part Number: P1011F8658


Designed Specifically For Drag Racing
Hy-Tuf Axles are not acceptable for street use

Packages For Street & Track – P3109F8658 / P3509F8658

Application
1986-1993 Mustang with OEM housing ends
Drums will need to be drilled to suit larger studs

Aftermarket Differentials & Spools
33 spline will vary on spline design
Specify manufacturer to ensure proper fit

35 spline requires 30º pressure angle
Will not fit Mark Williams spools

Includes

Hy-Tuf Ultra Strength AxlesA1000
• Forged from high nickel, molybdenum and chromium steel
• Increases torsional strength and material toughness
• Manganese added to improve hardness consistency
• Majority of machining performed before heat treat
• Thru hardened to Rc 45-48
• Finish machined after heat treat to ensure trueness
• Choice of 31, 33, or 35 spline
• Custom lengths available at no additional charge
• Choice of bolt circle
• Designed and machined by Strange Engineering
• Forged in the USA

C-Clip Eliminator KitA1090
• Billet aluminum inner and outer halves
• Tapered bearings ensure long bearing life
• Locking rings
• Outer seals
• Gaskets
• Grade 8 studs with locking nuts & washers

Choice of 5/8″ Bolt Style Stud KitA1027 / A1027S / A1027L
• 5/8″-18 x 3″ Grade 8 fully threaded bolts *
• Thin .200″ hex head provides additional clearance
• Part number suffix determines width of aluminum washers
• No suffix = .4375″ / S = .250″ / L = .688″
• Includes threaded sleeves, installation tool & flanged lug nuts

* Length measured from underneath the hex of the stud
Double Ended 5/8″ Studs Will Not Clear This Eliminator Kit

Labor Option
Install eliminator kit – A1008C
Install eliminator kit & studs – A1008SC
Install eliminator kit, studs & reluctor rings – A1008SRC
Lightening holes in flange – A1003
Ultra Light flange – A1006


Description

Ford 8.8 1986-1993 Pro Race axles, c-clip elim. kit, & 5/8″ stud KIT
