86-93 Mustang Drag Race Axle Package
31, 33 or 35 Spl Axles, Eliminator, & 1/2" Studs

$589.00

Part Number: P1011F86


Designed Specifically For Drag Racing
Thru-hardening maximizes the torsional strength of Hy-Tuf axles
This also reduces the flexibility necessary for street driving

Packages For Street & Track – P3109F86 / P3509F86

Application
1986-1993 Mustang
With OEM housing ends & factory drum brakes *

* Aftermarket disc brakes if designed for this Strange Eliminator Kit

Aftermarket Differentials & Spools
33 spline will vary on spline design
Specify manufacturer to ensure proper fit

35 spline requires 30° pressure angle
Will not fit Mark Williams spools

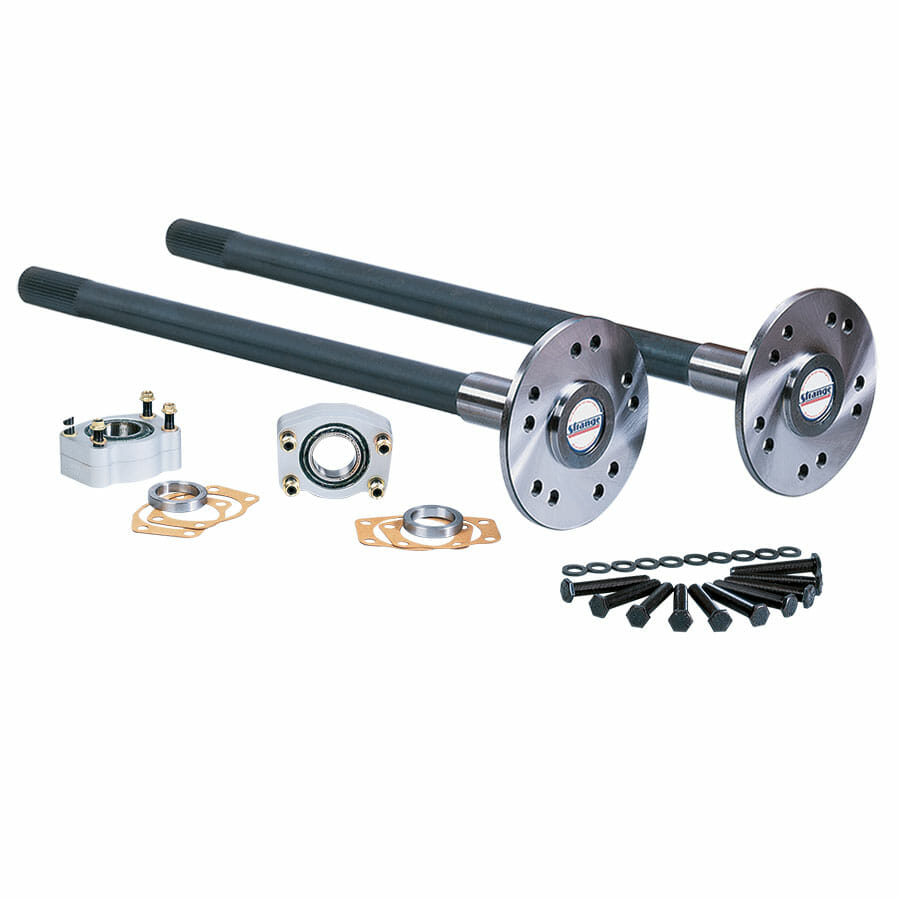

Includes

Hy-Tuf Ultra Strength AxlesA1000
• Forged from high nickel, molybdenum and chromium steel
• Increases torsional strength and material toughness
• Manganese added to improve hardness consistency
• Majority of machining performed before heat treat
• Thru hardened to Rc 45-48
• Finish machined after heat treat to ensure trueness
• Choice of 31, 33, or 35 spline
• Custom lengths available at no additional charge
• Choice of bolt circle
• Forged in the USA
• Designed and machined by Strange Engineering

C-Clip Eliminator KitA1090
• Billet aluminum inner and outer halves
• Tapered bearings ensure long bearing life
• Locking rings
• Outer seals
• Gaskets
• Grade 8 studs with locking nuts & washers

Choice of Screw-in Wheel Studs
• 1/2″-20 studs 2″ long * – A1025
• 1/2″-20 studs 3″ long * – A1026

* Length measured from underneath the hex of the stud

Labor Option
Install eliminator kit – A1008C
Install eliminator kit & studs – A1008SC
Lightening holes – A1003
Ultra Light flange – A1006


Description

Ford 8.8 1986-1993 Pro Race axles, c-clip elim. kit, & 1/2″ wheel studs
