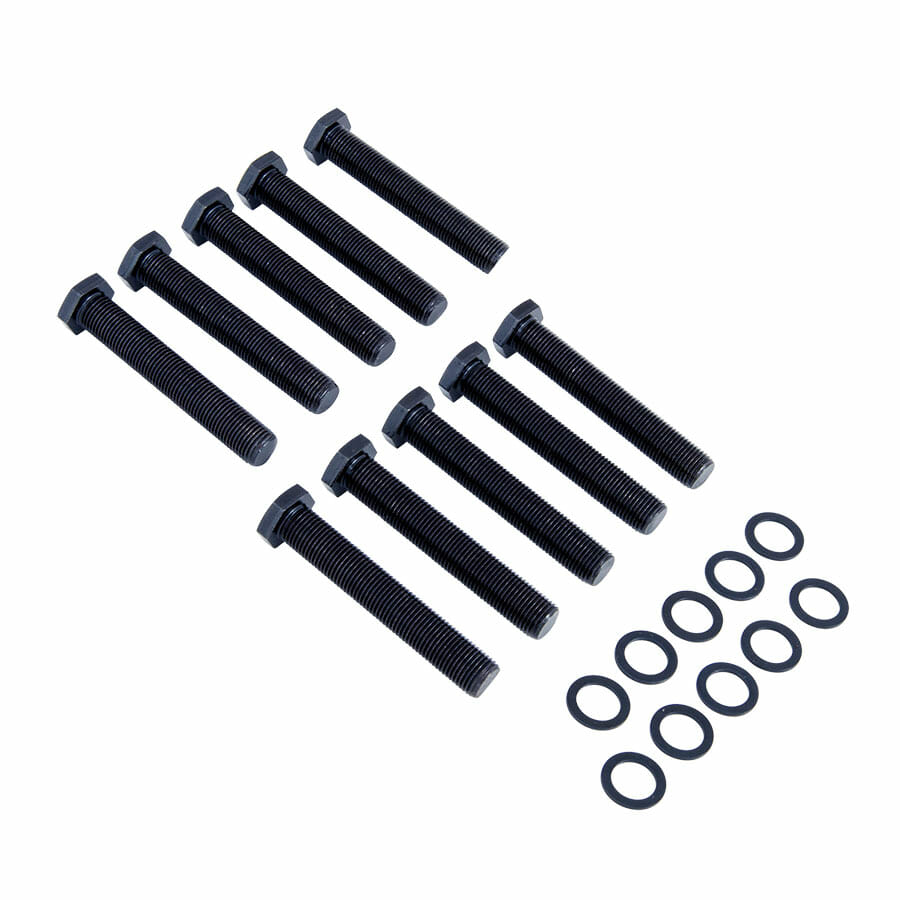

Strange 1/2″-20 x 3″ Screw-in Stud Kit

$21.00

Part Number: A1026

For Axles Drilled And Tapped 1/2″- 20

Kit Includes:

1/2″-20 x 3″ Grade 8 Fully Threaded Bolts
– Threads are rolled for maximum strength
– Thin .200″ hex head provides additional clearance
– 3/4″ wrench size

.0625″ Hardened Washers
– Prevents galling
– Ensures hex remains true to backside of axle flange

Note
The 3″ dimension is measured from underneath the hex to end of the threads

Kits With Different Lengths
For 2″- See A1025
For 2 1/2″ with tapered Allen head- See A1028 (Fits Strange Front brake kits)

Parts List and Installation Guide pdf File

Description

3″ stud kit (1/2 x 20) with .0625″ hardened washers- 10 pcs ea

Additional information

Weight 2.05 lbs
