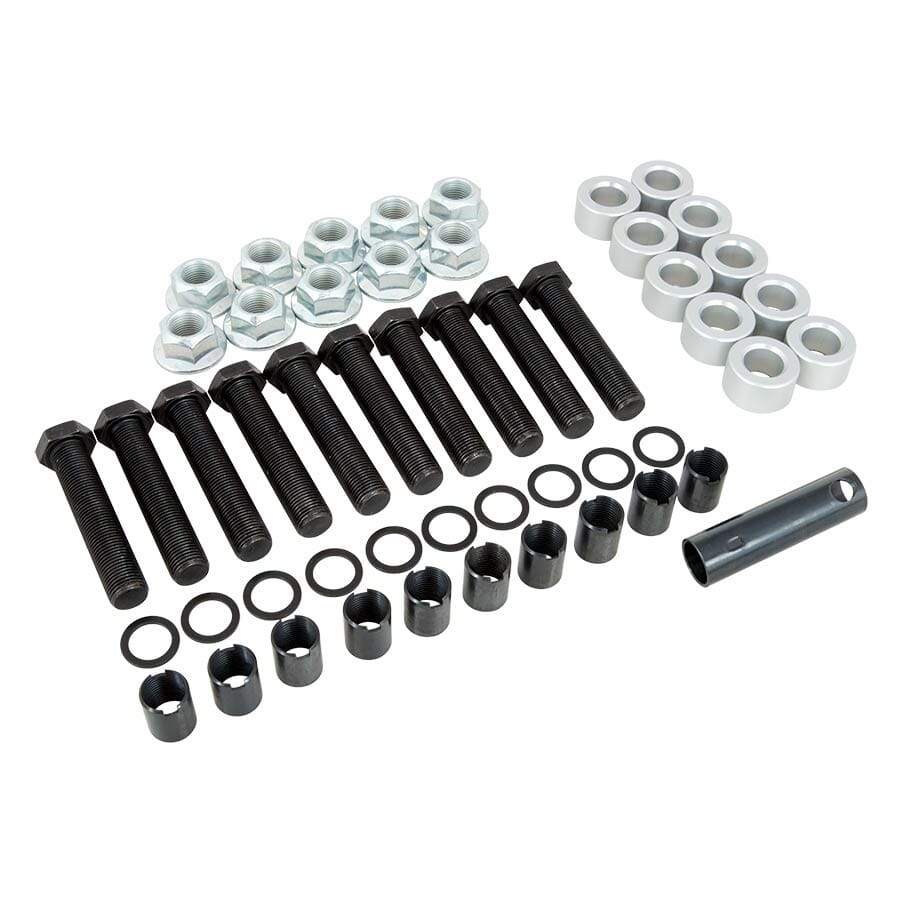

5/8"-18 x 3" Sleeve Style Stud Kit
Includes Lug Nuts, & .688" Wide Washers

$100.00

Part Number: A1027L


Application
Axles Drilled And Tapped 5/8″-18

Includes

5/8″-18 x 3″ Fully Threaded Bolts
• Grade 8 material
• Rolled threads for maximum strength
• Thin .200″ hex head provides additional clearance
• Length is measured from underneath the head of the stud
• 7/8″ wrench size

Hardened Washers
• .0625″ thick
• Prevents galling
• Ensures hex remains true to backside of axle flange

Stud Sleeves
• .687″ OD x .875″ long
• Provides proper diameter & surface to pilot wheel
• Internal 5/8″-18 threads to secure stud and prevent movement
• Notched for installation wrench

Installation Wrench
• Fits notch on sleeve
• Simplifies installation

.688″ Wide Aluminum Washers
• Reduces marring on wheel face from flanged lug nut
• Keeps lug nut from bottoming-out on stud sleeve *

5/8″-18 Flanged Lug Nuts
• Provides secure clamping force
• 15/16″ wrench size

Rotor Hat & Wheel Thickness Determines Proper Shoulder Length
Shoulder should exceed combination but not beyond washer width
Additional sleeves are available – A1027C

Other Washers
Kit Suffix Specifies Washer Width
No suffix = .4375″ / S = .250″ / L = .688″


Description

3″ (5/8 x 18) stud kit- with sleeves, nuts, & .688″ washers

Parts List and Installation Guide pdf File
