Application
Axles Drilled And Tapped 5/8″-18

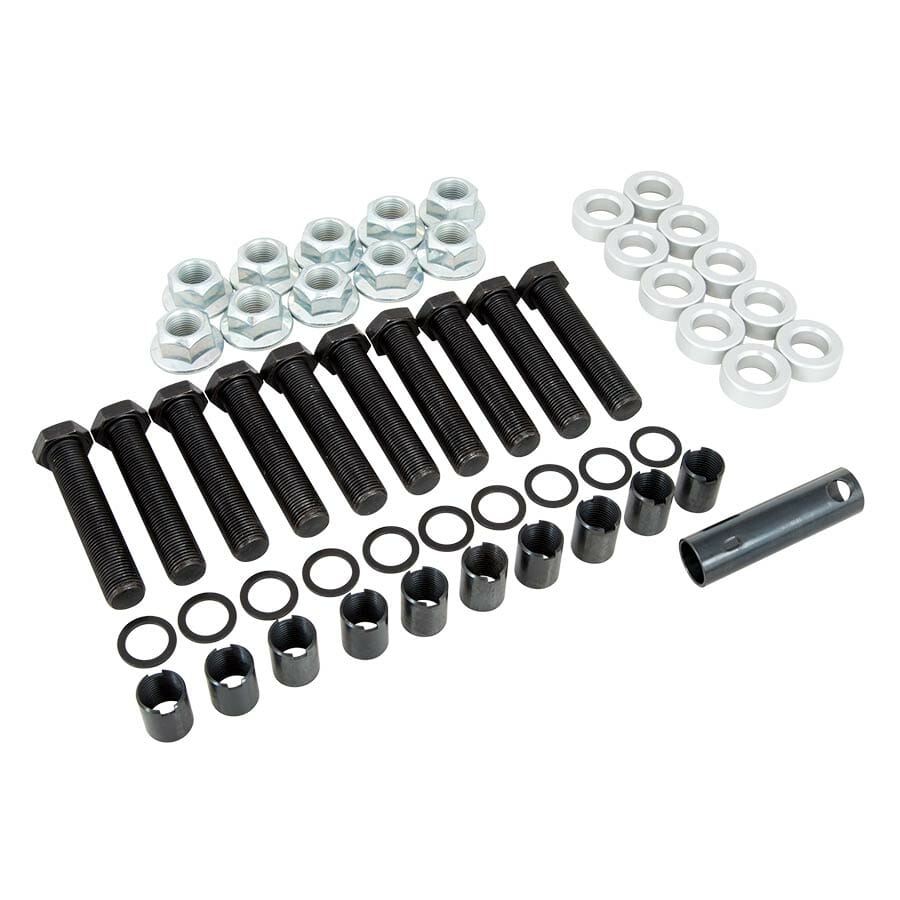

Includes
5/8″-18 x 3″ Fully Threaded Bolts
• Grade 8 material
• Rolled threads for maximum strength
• Thin .200″ hex head provides additional clearance
• Length is measured from underneath the head of the stud
• 7/8″ wrench size
Hardened Washers
• .0625″ thick
• Prevents galling
• Ensures hex remains true to backside of axle flange
Stud Sleeves
• .687″ OD x .875″ long
• Provides proper diameter & surface to pilot wheel
• Internal 5/8″-18 threads to secure stud and prevent movement
• Notched for installation wrench
Installation Wrench
• Fits notch on sleeve
• Simplifies installation
.4375″ Wide Aluminum Washers
• Reduces marring on wheel face from flanged lug nut
• Keeps lug nut from bottoming-out on stud sleeve *
5/8″-18 Flanged Lug Nuts
• Provides secure clamping force
• 15/16″ wrench size
Shoulder should exceed combination but not beyond washer width
Additional sleeves are available – A1027C
Other Washers
Kit Suffix Specifies Washer Width
No suffix = .4375″ / S = .250″ / L = .688″
