Pro Race Axle & Spool Package                                                                           For 2005-2014 Mustang 8.8 Rear End                                                             Race Axles, Lightweight Spool, C-Clip Eliminator kit & 1/2″ Studs

/, Drag Race, Custom Axle Packages / Components, Pro Race Custom Axle Packages, Ford, Ford, Axle Packages / Components/

Pro Race Axle & Spool Package                                                                           For 2005-2014 Mustang 8.8 Rear End                                                             Race Axles, Lightweight Spool, C-Clip Eliminator kit & 1/2″ Studs

Pro Race Axle & Spool Package                                                                           For 2005-2014 Mustang 8.8 Rear End                                                             Race Axles, Lightweight Spool, C-Clip Eliminator kit & 1/2″ Studs

$805.00

Part Number: P2000FM05

Hy-Tuf axles are optimized for Drag Race use only
See our Alloy axle packages for street / track applications

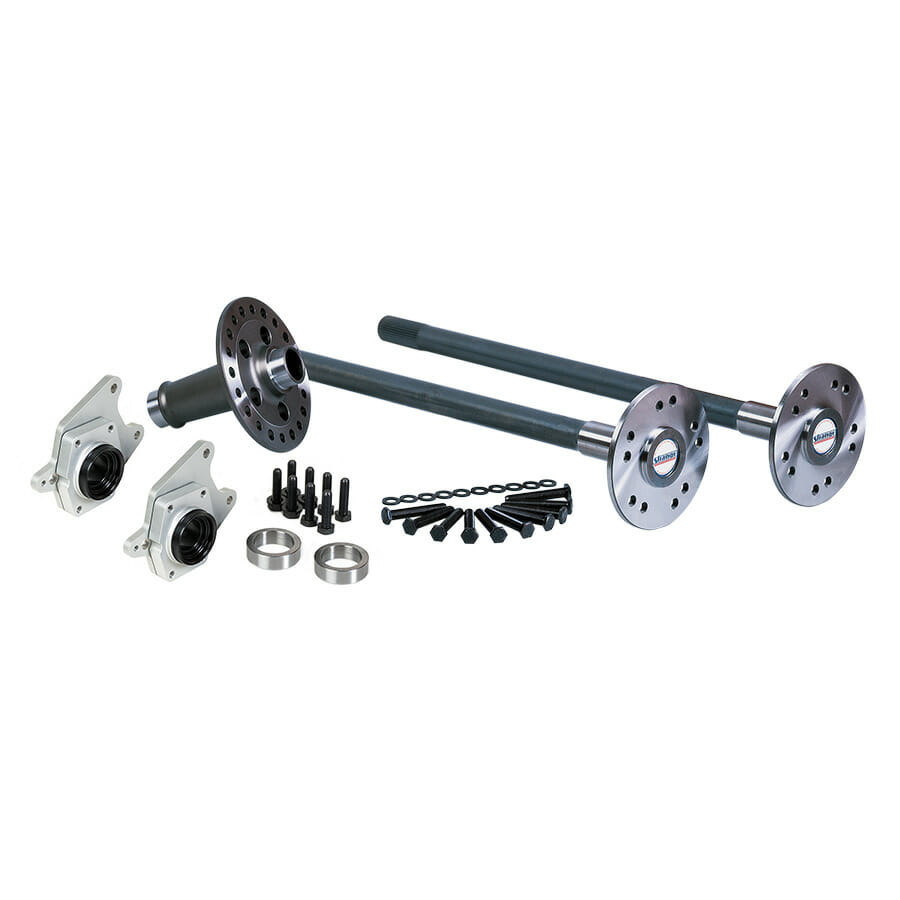

Package Includes

Hy-Tuf Ultra Strength Axles – A1000
• Forged from low carbon, high manganese, high nickel, and high molybdenum steel
• Majority of machining performed before heat treat to provide consistent hardness
• Thru hardened to Rc 45-48 to maximize the material's torsional strength
• Finish machined after heat treat to ensure accuracy
• 33 spline – Can be upgraded to 35 spline for an additional charge
• Custom lengths available at no extra charge
• Choice of bolt circle
• Designed and machined by Strange Engineering
• Forged in the USA

C-Clip Eliminator Kit – A1099
• Billet aluminum caliper mounts to accept GT brakes
• Aluminum inner halves
• Timken® Tapered Unit bearings for long bearing life
• Bearing spacer/reluctor ring adapters
• Locking rings
• Outer seals
• O-rings
• Housing end bolts
• Hardened washers for use with OEM caliper mounting bolts

1/2″-20 Screw-in Wheel Studs – A1025 / A1026
• Chrome moly material
• Threads are rolled for maximum strength
• Choice of 2″ or 3″ long studs *
• Includes .060″ hardened washers

* Measured from underneath the hex of the stud

Lightweight Steel Spool – D1560 33 spline / D1567 35 spline
• Forged from premium 8620 steel
• Surface hardened to Rc 45-48
• Lightened to maximize strength to weight
• Designed and machined by Strange Engineering
• Forged in the USA

Notes For ABS
This kit will work with factory reluctor rings
Read instructions carefully beforehand as assembly order is crucial


Options
OEM 05-14 reluctor ring – each………………… A1098I

Labor Only
Install eliminator kit…………………………………. A1008C
Install eliminator kit & studs…………………… A1008SC
Install studs, reluctors & eliminator kit….. A1008SRC


Other Packages

Pro Race
1986-1993…………………………………………….. P2000FM86
1994-2004…………………………………………….. P2000FM94

Alloy
1986-1993…………………………………………….. P3509F86S
1994-2004…………………………………………….. P3509F94S
2005-2014…………………………………………….. P3509F05S



Description

2005-2014 Ford Mustang 8.8 Pro Race axles, eliminator kit, 1/2″ wheel studs, & L/W spool

Additional information

Weight 64.15 lbs
