Pro Race Hy-Tuf axles are optimized for Drag Race use only
See our Alloy axle packages for street / track applications

Applications & Splines Available
Chevy 8.2 10 bolt… 33
Chevy 8.5 10 bolt… 33
Chevy 12 bolt car… 33 / 35
Dana 60………………. 35 / 40 *
Ford 8.8………………. 33 / 35
Ford 9″………………… 33 / 35 (requires 3.250″ bore case) / 40 *
Mopar 8 3/4″……….. 35
Olds/Pontiac……….. 35

* For 40 spline packages – See P2015 / P2017

Notes For This Axle Package
All Chevy & Ford 8.8 require replacement 3.150″ housing ends
Packages with C-clip Eliminator kit for OEM housing ends are shown below

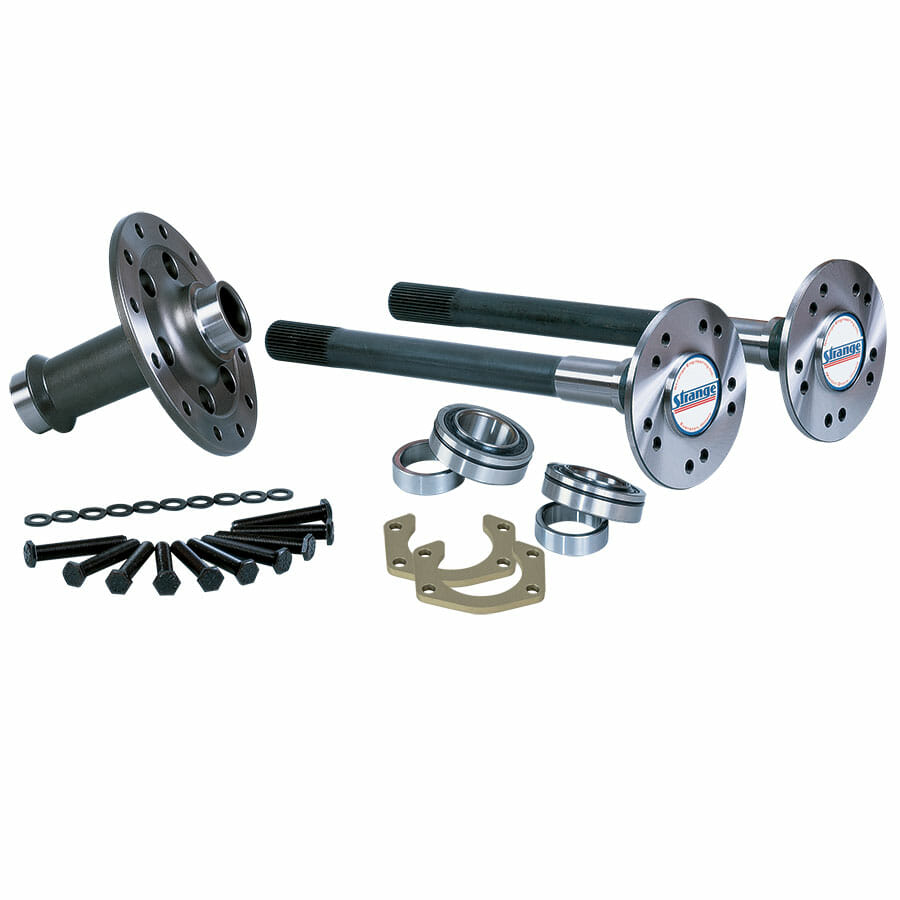

This Pro Race Axle Package Includes:

Hy-Tuf Ultra Strength Axles – A1000
– Forged from low carbon, high manganese, high nickel, and high molybdenum steel
– Majority of machining performed before heat treat to provide consistent hardness
– Thru hardened to Rc 45-48 to maximize the material's torsional strength
– Finish machined after heat treat to ensure accuracy
– Choice of 33 or 35 spline
– Lengths up to 34 7/8″
– Choice of bolt circle
– Forged in the USA
– Designed and machined by Strange Engineering

Sealed Ball Bearings – A1019 / A1021 / A1023 * / A1022 * / A1022OB *
– Low friction bearings designed specifically for Drag Racing
– O.D. grooved for o-ring to eliminate inner axle seal
– Includes o-rings and locking collars

* These bearings include retainer plates

Retainer Plates – A1016 / A1018 / A1114 / H1147B
– For A1019 or A1021 bearings
– New plates ensure proper axle retention

1/2″-20 Screw-in Wheel Studs – A1025 / A1026
– Chrome moly material
– Threads are rolled for maximum strength
– Choice of 2″ or 3″ long studs *
– Includes .060″ hardened washers

* Measured from underneath the hex of the stud

Options
Install axle bearings & retainer plates………. See A1008R
Five round lightening holes in axle flange… See A1003
Ultra Light flange……………………………………… See A1006
Gun-drill 35 spline axles…………………………… See A1005 / A1005AC

Other Packages
Pro Race Axle & Spool Package
With 5/8″ studs….. See P200558

Pro Race Axle & Spool Packages With C-Clip Eliminator Kit
OEM Chevy ends……………………. See P2000GDR

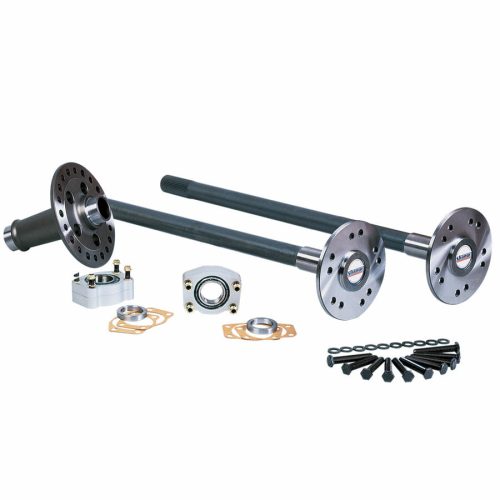

OEM Ford 8.8 ends… See P2000FM86 / P2000FM94 / P2000FM05

Pro Race 40 spline Axle & Spool Packages
Gundrilled…………………………… See P2015
Solid……………………………………. See P2017

Hybrid Axle & Spool Package with Eliminator kit
For multiple use vehicles in Street / Oval Track / Drag Racing
33 & 35 spline…………………………… See P2000GOT

Alloy Axle & Spool Packages
35 spline with 1/2″ studs… See P3504S
