Mopar Old Style Axle Bearing & Plate
For 2.875" Mopar Housing End


Part Number: A1022OB

Sold as Each

Sealed Ball Bearing & Retainer Plate
• 2.875″ OD x 1.562″ ID
• Outer seal & O-ring eliminates inner axle seal
• Stamped steel plate peened onto outer race
• Five on 3.75″ bolt pattern with holes for 3/8″ studs
• Includes locking collar & gasket

Old Aftermarket Disc Brakes
Some kits only work with this bearing
Retainer plate removal might be required

Current Aftermarket Disc Brakes
Most use the new style axle bearing – A1022
The Spirolox is a more secure retaining system
It also can be used for drum brakes

Cold Press Only
Should be pressed on at room temperature
Heating can reduce holding power and ruin seal surface
Tack-welding can alter the axles heat treating and cause cracking

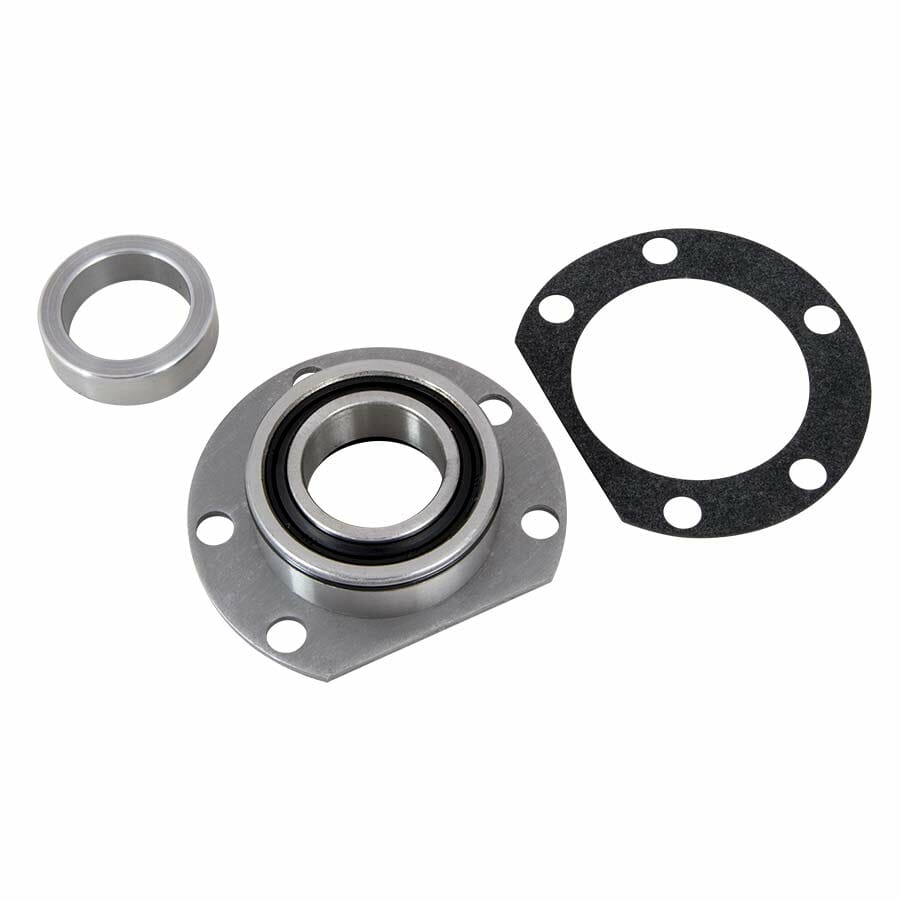

2.875″ x 1.562″ Mopar old style bearing with fixed retainer plate

Parts List and Installation Guide pdf File
