Hy-Tuf axles are optimized for Drag Race use only
See our Street / Track axle packages for other applications
Application Available
8.2 10 bolt car 33 spline
8.5 10 bolt car 33 spline
8.8 12 bolt car 33 or 35 spline *
* 35 splines available for an additional charge
8.2 & 8.5 10 Bolts Require Special Side Bearings

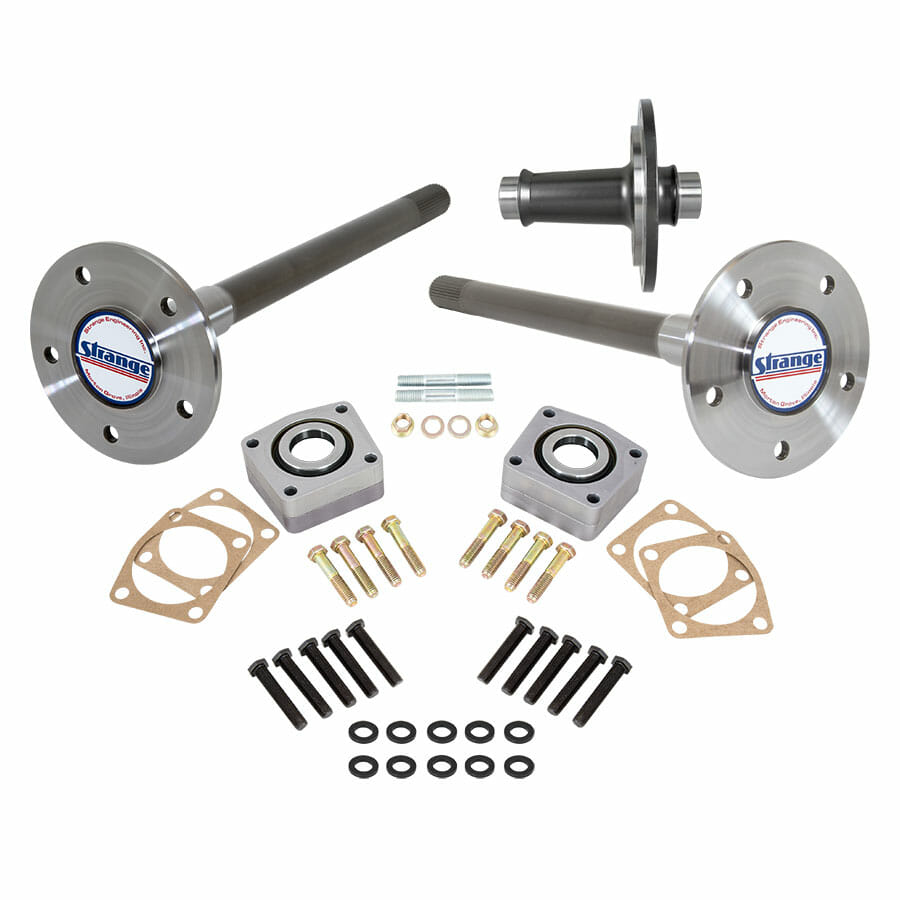

Package Includes
Hy-Tuf Ultra Strength Axles – A1000
• Forged from low carbon, high manganese, high nickel, and high molybdenum steel
• Majority of machining performed before heat treat to provide consistent hardness
• Thru hardened to Rc 45-48 to maximize the material’s torsional strength
• Finish machined after heat treat to ensure accuracy
• Choice of 28, 30, 33, or 35 spline based on application
• Custom lengths available at no additional charge
• Choice of bolt circle
• Designed and machined by Strange Engineering
• Forged in the USA
C-Clip Eliminator Kit – A1034 / A1031Z
• Billet aluminum inner and outer halves
• 3.150″ x 1.562″ low friction sealed ball bearings
• Locking collars
• Inner seals, gaskets, & grade 8 bolts
Gaskets Not Included In A1031Z – Requires RTV
1/2″-20 Screw-in Wheel Studs – A1025 / A1026
• Chrome moly material
• Threads are rolled for maximum strength
• Choice of 2″ or 3″ long studs *
• Includes .060″ hardened washers
* Measured from underneath the hex of the stud
Lightweight 33 Spline Steel Spool
• Forged from premium 8620 steel
• Surface hardened to Rc 45-48
• Lightened to maximize strength to weight
• Designed and machined by Strange Engineering
• Forged in the USA
Options
Install eliminator kit……………….. A1008C
Install eliminator kit & studs…. A1008SC
Upgrade 12 bolt to 35 spline….. OPRA01
Lightening holes in flange……….. A1003
Ultra Lite flange………………………. A1006
Other Packages
Pro Race
With 5/8″ studs…………………… P2000GDR58
Hybrid
With 1/2″ studs…………………….. P2000GOT
Related Components
10 Bolt
Special side bearings………………. D1585
8.2 installation kit………………….. R5217-SP
8.5 installation kit………………….. R5205-SP
12 Bolt
Side bearings………………………….. D1582
Installation kit…………………………. R5211
