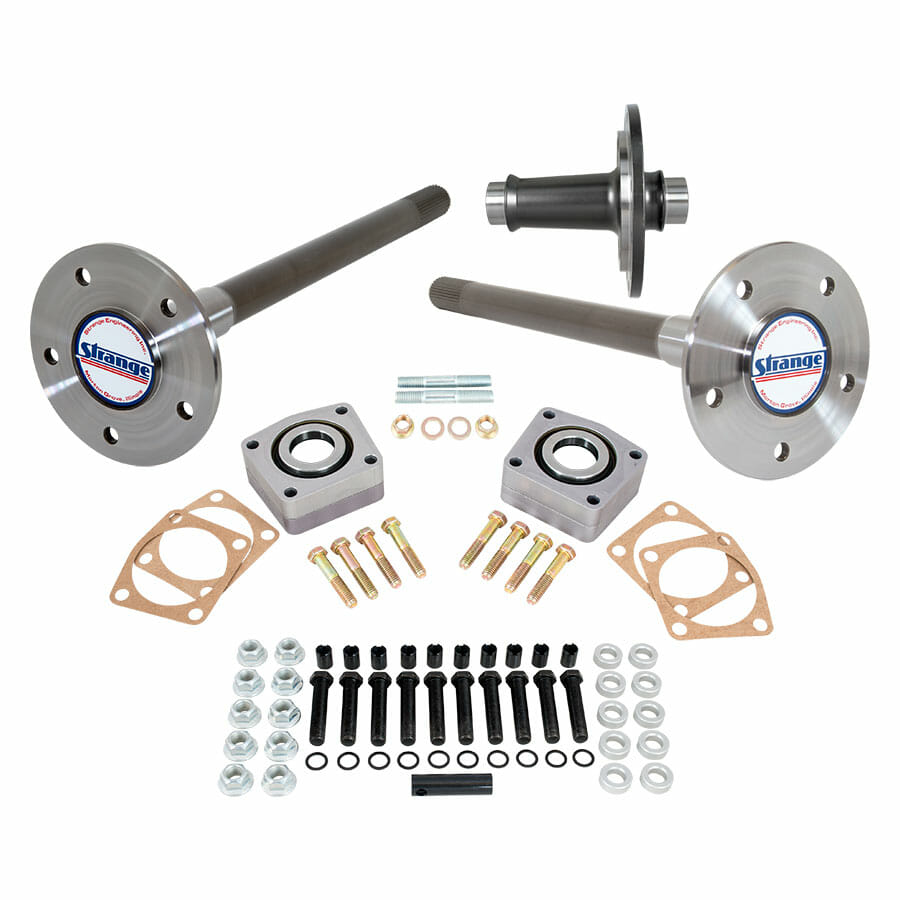

Chevy 10 & 12 Bolt Drag Race Axle & Spool Pkg
Hy-Tuf Axles, Eliminator, 5/8" Studs & Spool


Designed Specifically For Drag Racing
Hy-Tuf Axles and spools are not acceptable for street use

Application & Splines Available
Chevy 8.2 10 bolt * – 33
Chevy 8.5 10 bolt * – 33
Chevy 12 bolt car – 33 / 35 **

* Spool requires special side bearings – D1585
** 35 spline is an additional charge

Includes

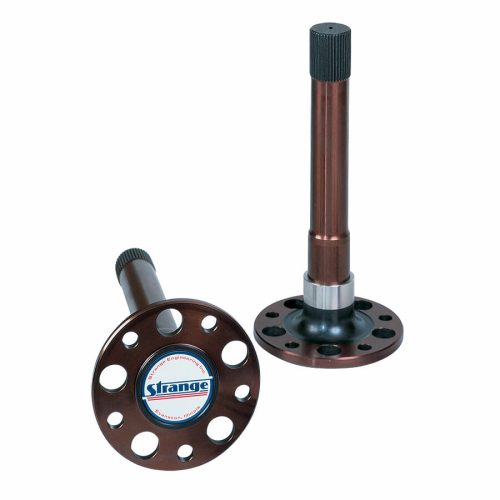

Hy-Tuf Ultra Strength Axles – A1000
• Forged from high nickel, molybdenum and chromium steel
• Increases torsional strength and material toughness
• Manganese added to improve hardness consistency
• Majority of machining performed before heat treat
• Thru hardened to Rc 45-48
• Finish machined after heat treat to ensure trueness
• Custom lengths available at no additional charge
• Choice of bolt circle
• Designed and machined by Strange Engineering
• Forged in the USA

C-Clip Eliminator Kit – A1034 / A1031Z *
• Billet aluminum inner and outer halves
• 3.150″ x 1.562″ low friction sealed ball bearings
• Locking collars
• Inner seals, gaskets, & grade 8 bolts

* Gaskets not included – Use RTV sealer

Choice of 5/8″-18 Stud Kit

Bolt Style Stud Kit – A1027 / A1027S / A1027L
• 5/8″-18 x 3″ Grade 8 fully threaded bolts *
• Thin .200″ hex head provides additional clearance
• Part number suffix determines width of aluminum washers
• No suffix = .4375″ / S = .250″ / L = .688″
• Includes threaded sleeves, installation tool & flanged lug nuts

* Length measured from underneath the hex of the stud

Shank Style – A1036 / A1037 / A1037MD / A1038 / A1039 / A1041
• 5/8″-18 chrome moly stud available in six different shank lengths
• Part number suffix determines width of aluminum washers
• No suffix = .4375″ / S = .250″ / L = .688″
• Includes thin head self locking inner nuts & flanged lug nuts

33 Spline Steel Spool – D1521 / D1524 / D1540 / D1549
• Forged from premium 8620 steel
• Surface hardened to Rc 45-48
• Lightened to maximize strength to weight
• Designed and machined by Strange Engineering
• Forged in the USA

Chevy Spools are Series Specific
See spool information to ensure ratio compatibility

Labor Option
Install eliminator kit – A1008C
Install eliminator kit & studs – A1008SC
Lightening holes in flange – A1003

Upgrade Option
Upgrade 12 bolt to 35 spline – OPRA01
D1541 / D1542
