Chevy 10 & 12 Bolt Drag Race Axle Package
28, 30, 33, 35 Spl Axles, Eliminator, 1/2" Studs

$589.00

Part Number: P1011GDR


Designed Specifically For Drag Racing
Thru-hardening maximizes the torsional strength of Hy-Tuf axles
This also reduces the flexibility necessary for street driving

Package For Street & Track

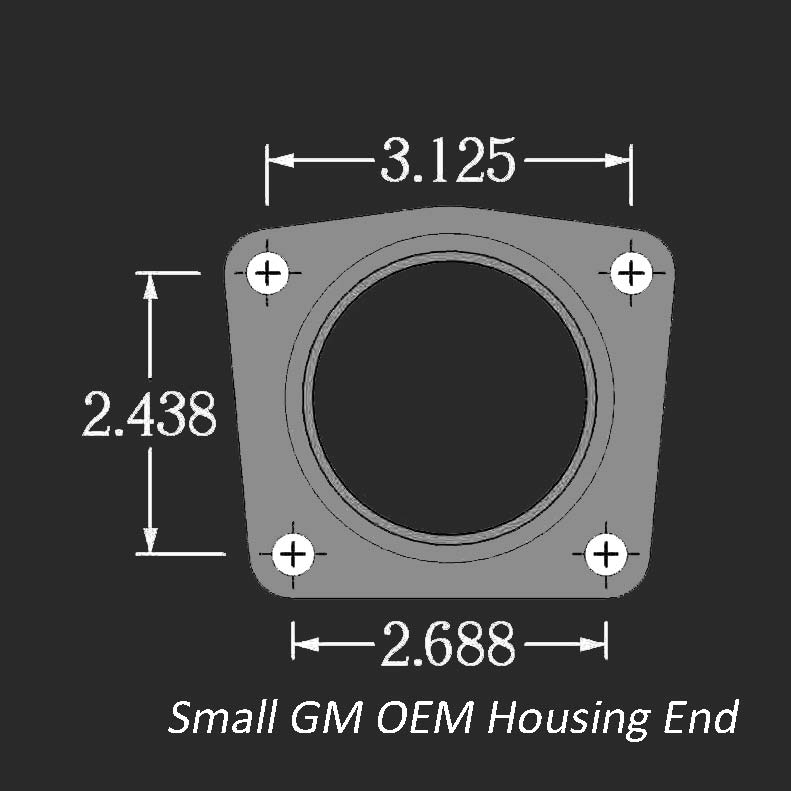

OEM Small GM housing ends only – P1011GOT

For Chevy Drag Race Vehicles

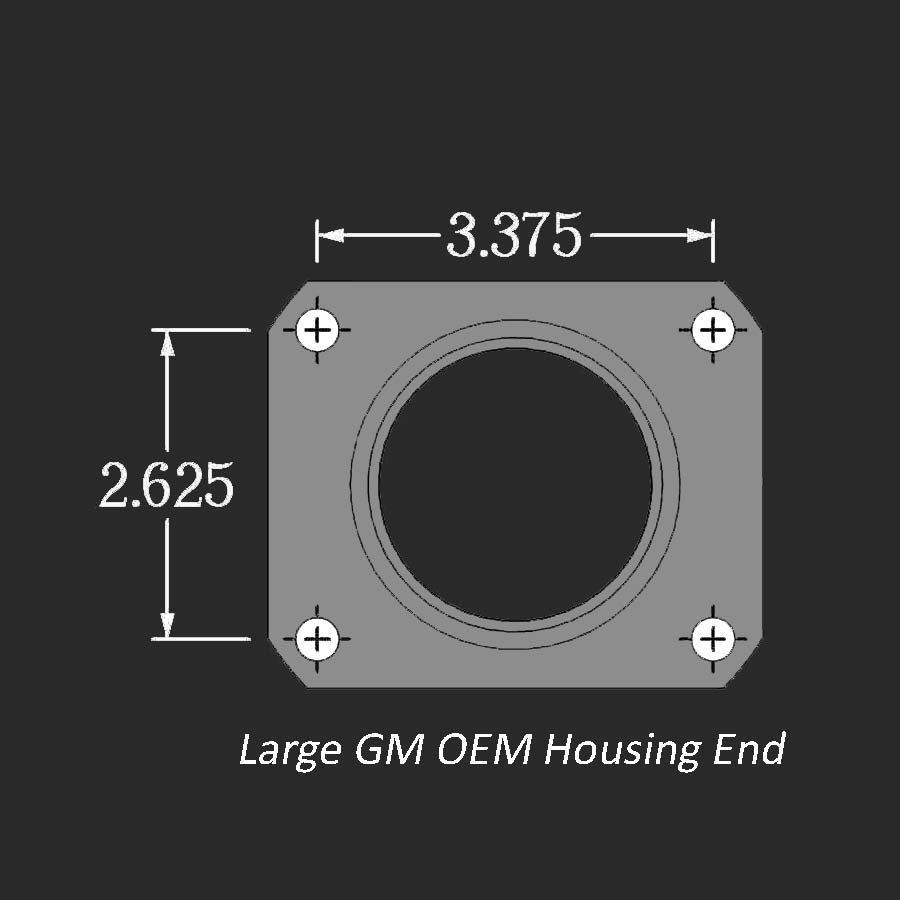

• OEM Small or Large GM housing ends
• Factory drum brakes *

* Aftermarket disc brakes if designed for this Strange Eliminator Kit

Application & Splines Available
8.2 10 bolt – 28 / 33
8.5 10 bolt – 28 / 30 / 33
8.8 12 bolt – 30 / 33 / 35

Aftermarket Differentials & Spools
33 spline will vary on spline design
Specify manufacturer to ensure proper fit

35 spline requires 30° pressure angle
Will not fit Mark Williams spools

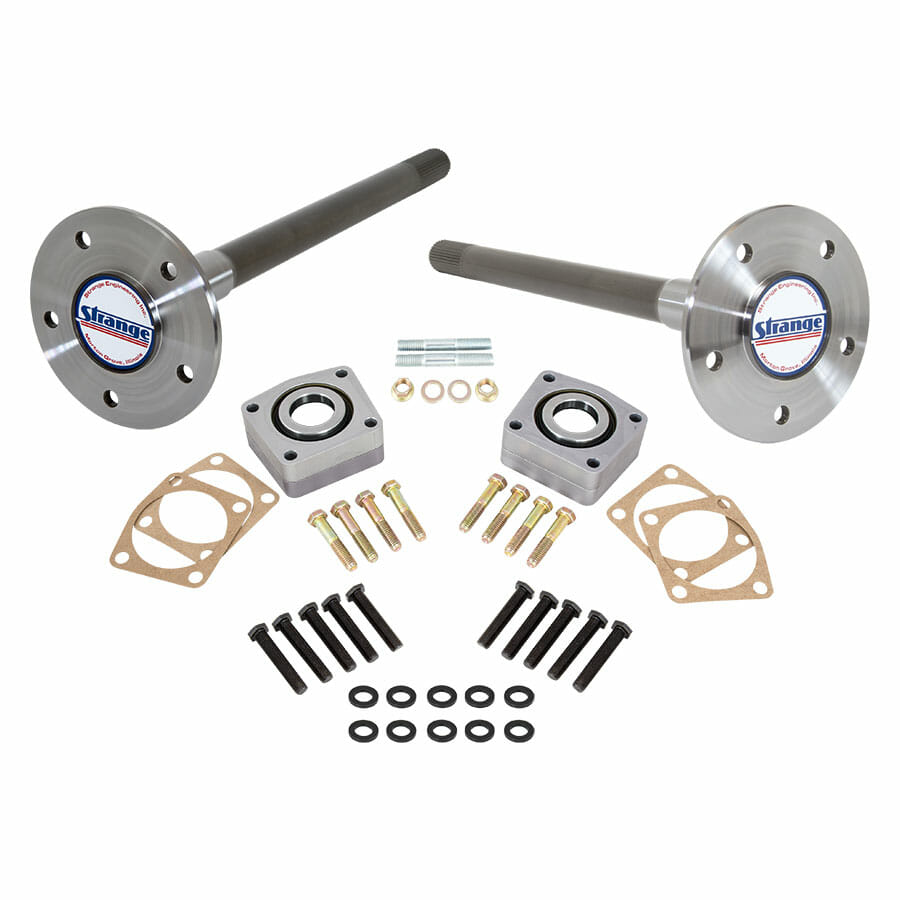

Includes

Hy-Tuf Ultra Strength AxlesA1000
• Forged from high nickel, molybdenum and chromium steel
• Increases torsional strength and material toughness
• Manganese added to improve hardness consistency
• Majority of machining performed before heat treat
• Thru hardened to Rc 45-48
• Finish machined after heat treat to ensure trueness
• Choice of 28, 30, 33, or 35 spline
• Custom lengths available at no additional charge
• Choice of bolt circle
• Designed and machined by Strange Engineering
• Forged in the USA

C-Clip Eliminator KitA1034 / A1031Z *
• Billet aluminum inner and outer halves
• 3.150″ x 1.562″ low friction sealed ball bearings
• Locking collars
• Inner seals, gaskets, & grade 8 bolts

* Gaskets not included – Use RTV sealer

Choice of Screw-in Wheel Studs
• 1/2″-20 studs 2″ long * – A1025
• 1/2″-20 studs 3″ long * – A1026
• M12-1.5 studs 50mm long * – A1035

* Length measured from underneath the hex of the stud

Labor Option
Install eliminator kit – A1008C
Install eliminator kit & studs – A1008SC
Lightening holes in flange – A1003
Ultra Light flange – A1006


Description

C Clip eliminator kit for GM 10 & 12 Bolt With Axles and 1/2″ Studs

Pro Race Hy-Tuf axles

Strange offers high horsepower drag race cars Hy-Tuf axles that are forged from Hy-Tuf steel that was originally developed for highly stressed landing gear in military aircraft. The material is in the class of Ultra Strength alloys and contains low carbon, high manganese, high nickel, and high molybdenum steel. Pro racing axles are thru-hardened allowing for a Drag Racing shaft with an exceptionally high, 240,000 PSI, tensile strength while retaining ductility.

Strange Engineering has led the industry with an innovative focus. During the early 1970s, Strange brought the C-Clip Eliminator to the market. The Strange GM 10 & 12 Bolt C-Clip Eliminator Kit with Hy-tuf axles help make the rear axle safer and more durable.

Under the extreme effects of drag racing, axles that are held in using only a small c clip can lead to disastrous results. If the c-clip breaks or simply comes off, the wheel and the full axle may come out of the rear housing. This can be a hazard to vehicle occupants and bystanders, alike. By using the Strange GM C-Clip Eliminator Kit you get rid of the C-clips in your rear end and be ensured that the axle remains inside the housing.

The lightweight aluminum housing bolts up to the axle tube with simple modifications. It incorporates low friction bearings that have a reduction in rotational loss. This kit can be used with drum brakes and some aftermarket disc brakes.
