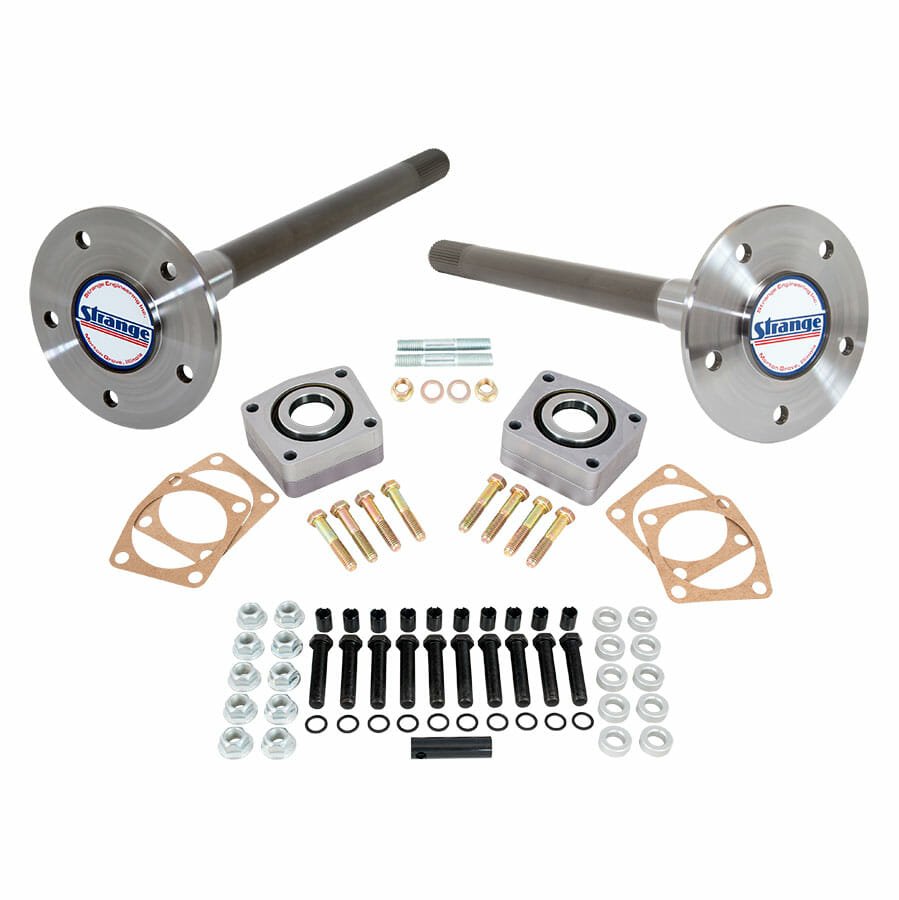

Chevy 10 & 12 Bolt Drag Race Axle Package
28, 30, 33, 35 Spl Axles, Eliminator, 5/8" Studs

$639.00

Part Number: P1011GDR58


Designed Specifically For Drag Racing
Thru-hardening maximizes the torsional strength of Hy-Tuf axles
This also reduces the flexibility necessary for street driving

Package For Street & Track
OEM Small GM housing ends only – P1011GOT58

For Chevy Drag Race Vehicles
• OEM Small or Large GM housing ends
• Factory drum brakes *

* Aftermarket disc brakes if designed for this Strange Eliminator Kit

Application & Splines Available
8.2 10 bolt – 28 / 33
8.5 10 bolt – 28 / 30 / 33
8.8 12 bolt – 30 / 33 / 35

Aftermarket Differentials & Spools
33 spline will vary on spline design
Specify manufacturer to ensure proper fit

35 spline requires 30° pressure angle
Will not fit Mark Williams spools

Includes

Hy-Tuf Ultra Strength AxlesA1000
• Forged from high nickel, molybdenum and chromium steel
• Increases torsional strength and material toughness
• Manganese added to improve hardness consistency
• Majority of machining performed before heat treat
• Thru hardened to Rc 45-48
• Finish machined after heat treat to ensure trueness
• Choice of 28, 30, 33, or 35 spline
• Custom lengths available at no additional charge
• Choice of bolt circle
• Designed and machined by Strange Engineering
• Forged in the USA

C-Clip Eliminator KitA1034 / A1031Z *
• Billet aluminum inner and outer halves
• 3.150″ x 1.562″ low friction sealed ball bearings
• Locking collars
• Inner seals, gaskets, & grade 8 bolts

* Gaskets not included – Use RTV sealer

Choice of 5/8″-18 Stud Kit

Bolt Style Stud KitA1027 / A1027S / A1027L
• 5/8″-18 x 3″ Grade 8 fully threaded bolts *
• Thin .200″ hex head provides additional clearance
• Part number suffix determines width of aluminum washers
• No suffix = .4375″ / S = .250″ / L = .688″
• Includes threaded sleeves, installation tool & flanged lug nuts

* Length measured from underneath the hex of the stud

Shank StyleA1036 / A1037 / A1037MD / A1038 / A1039 / A1041
• 5/8″-18 chrome moly stud available in six different shank lengths
• Part number suffix determines width of aluminum washers
• No suffix = .4375″ / S = .250″ / L = .688″
• Includes thin head self locking inner nuts & flanged lug nuts

Labor Option
Install eliminator kit – A1008C
Install eliminator kit & studs – A1008SC
Lightening holes in flange – A1003
Ultra Light flange – A1006


Description

GM 8.2, 8.5, & 12 blt Pro Race axles, eliminator kit, & 5/8″ stud kit
