Hybrid Axle & Spool Package For GM 10 Bolt & 12 Bolt Rear Ends Hybrid Axles, Lightweight Spool, Special Eliminator Kit & 5/8" Stud Kit

Originally designed for Oval track racing to eliminate axle and bearing failure
This allows for an axle & bearing combination not possible with any other housing end
Providing Drag Race axle torsional strength, while capable of handling heavy side loads

This is the ultimate package for multiple use vehicles
Street / Strip / Oval track

For Chevrolet applications using Small GM OEM housing ends and drum brakes
Or aftermarket disc brakes specifically designed for use with an eliminator kit

Application             Available
8.2 10 bolt car        33 spline
8.5 10 bolt car        33 spline
8.8 12 bolt car        33 or 35 spline *

* 35 splines available for an additional charge

8.2 & 8.5 10 Bolts Require Special Side Bearings

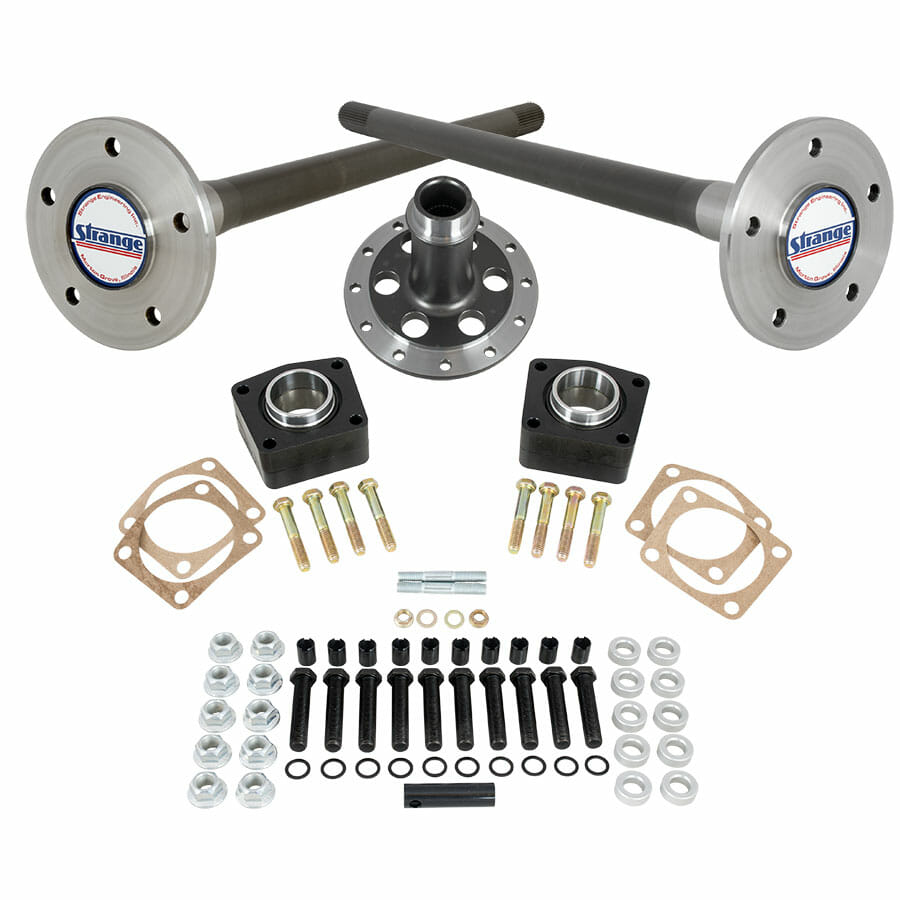

Package Includes
Modified Hy-Tuf Ultra Strength Axles – A1000 (Custom)
• Thicker axle flange with larger radii in all critical areas
• Bearing area increased to 1.7735″
• Tapered axle shaft resists bending loads
• Forged from low carbon, high manganese, high nickel, and high molybdenum steel
• Majority of machining performed before heat treat to provide consistent hardness
• Thru hardened to Rc 45-48 to maximize the material’s torsional strength
• Finish machined after heat treat to ensure accuracy
• Choice of 28, 30, 33, or 35 spline based on application
• Custom lengths available at no additional charge
• Choice of bolt circle
• Forged in the USA
• Designed and machined by Strange Engineering

C-Clip Eliminator Kit – A1100
• Billet aluminum inner and outer halves
• Timken® tapered 1.772″ ID unit bearings
• Locking collars
• Inner & outer seals
• Gaskets, & grade 8 bolts
• Two studs with locking nuts & washers- Maybe required to clear shock mounts

Choice of 5/8″ Bolt Style Stud Kit – A1027S / A1027 / A1027L
• 5/8″-18 x 3″ Grade 8 fully threaded bolts *
• Thin .200″ hex head provides additional clearance
• Width choice of anti-marring/spacer washers
• Includes threaded sleeves, installation tool & flanged lug nuts

* Measured from underneath the hex of the stud

Double Ended 5/8″ Studs Will Not Clear This Eliminator Kit
Lightweight 33 Spline Steel Spool
• Forged from premium 8620 steel
• Surface hardened to Rc 45-48
• Lightened to maximize strength to weight
• Designed and machined by Strange Engineering
• Forged in the USA

Options
Install eliminator kit………………… A1008C
Install eliminator kit & studs….. A1008SC
Upgrade 12 bolt to 35 spline….. OPRA01
Lightening holes in flange……….. A1003

Other Packages
Hybrid
With 1/2″ studs…………………….. P2000GOT

Pro Race
With spool…………………. P2000GDR / P2000GDR58

Related Components
10 Bolt
Special side bearings……………… D1585
8.2 installation kit…………………. R5217-SP
8.5 installation kit…………………. R5205-SP

12 Bolt
Side bearings…………………………. D1582
Installation kit………………………… R5211
