Street / Strip / Oval Track Eliminator Kit                                                           Designed Specifically For Strange Hybrid Axles

/, Drag Race, Custom Axle Packages / Components, Eliminator Kits, Street / Track, Street / Track, Axle Packages / Components, Eliminator Kits, GM, GM, Axle Packages / Components/

Street / Strip / Oval Track Eliminator Kit                                                           Designed Specifically For Strange Hybrid Axles

Street / Strip / Oval Track Eliminator Kit                                                           Designed Specifically For Strange Hybrid Axles

$200.00

Part Number: A1100

Application
Street / Strip / Oval Track

Requirements
Chevy 8.2, 8.5, or 12 Bolt Passenger Cars With OEM Small GM Housing Ends
Strange custom axles machined at 1.7735″ specifically designed for use with this kit
Normally supplied in a Hybrid Axle Package or purchased as a replacement kit

Brakes
Factory drum brakes and some aftermarket disc brake kits
Aftermarket kits must be designed specifically for use with an eliminator kit

Installation
Simple modification to housing ends required – See instruction sheet

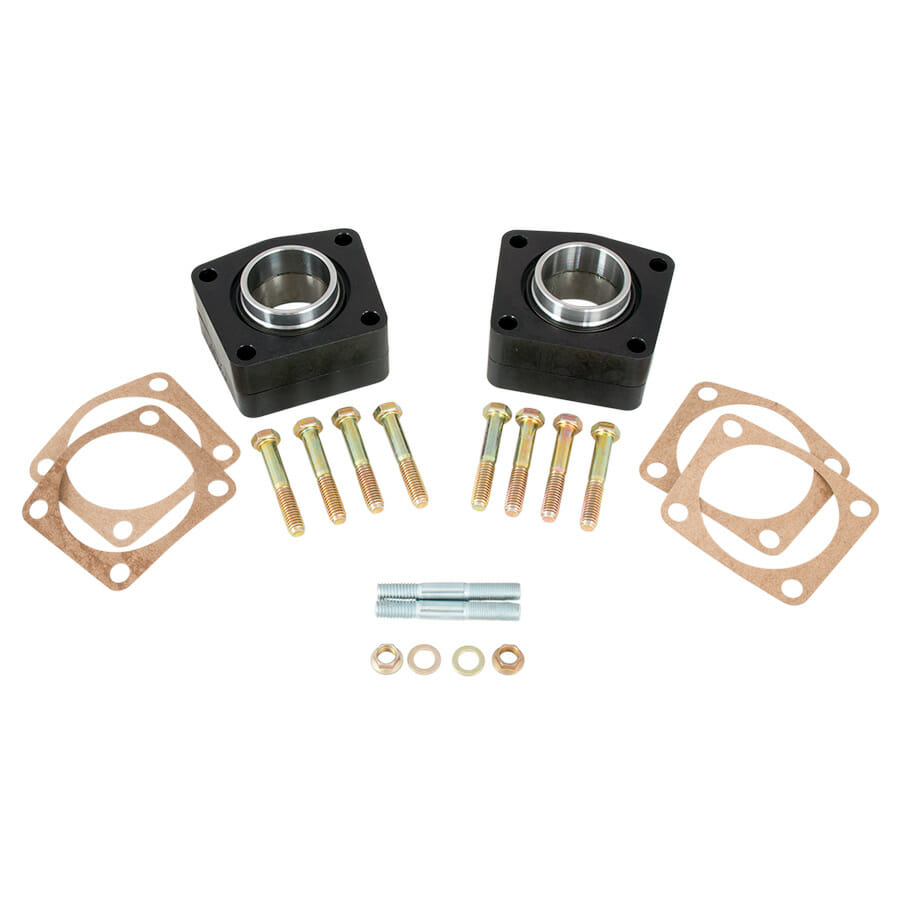

Includes
Billet aluminum inner and outer halves
TimkenĀ® Tapered Unit Bearings
Locking rings
Inner & outer seals
Gaskets
Grade 8 bolts
Two studs with locking nuts & washers- Maybe required to clear shock mounts

Not For Other Strange Axles
Some axles are machined at 1.7735″ but use a low friction ball bearing – See A1029
These two kits are not interchangeable



Hybrid Axle Packages
Axles, eliminator kit, & studs…………… P1011GOT / P1011GOT58
Axles, eliminator kit, studs, & spool… P2000GOT / P2000GOT58

Parts List and Installation Guide pdf File

Description

Small GM Street / Strip / Oval Track / eliminator kit for custom Strange axles @ 1.7735″

Additional information

Weight 4.00 lbs
