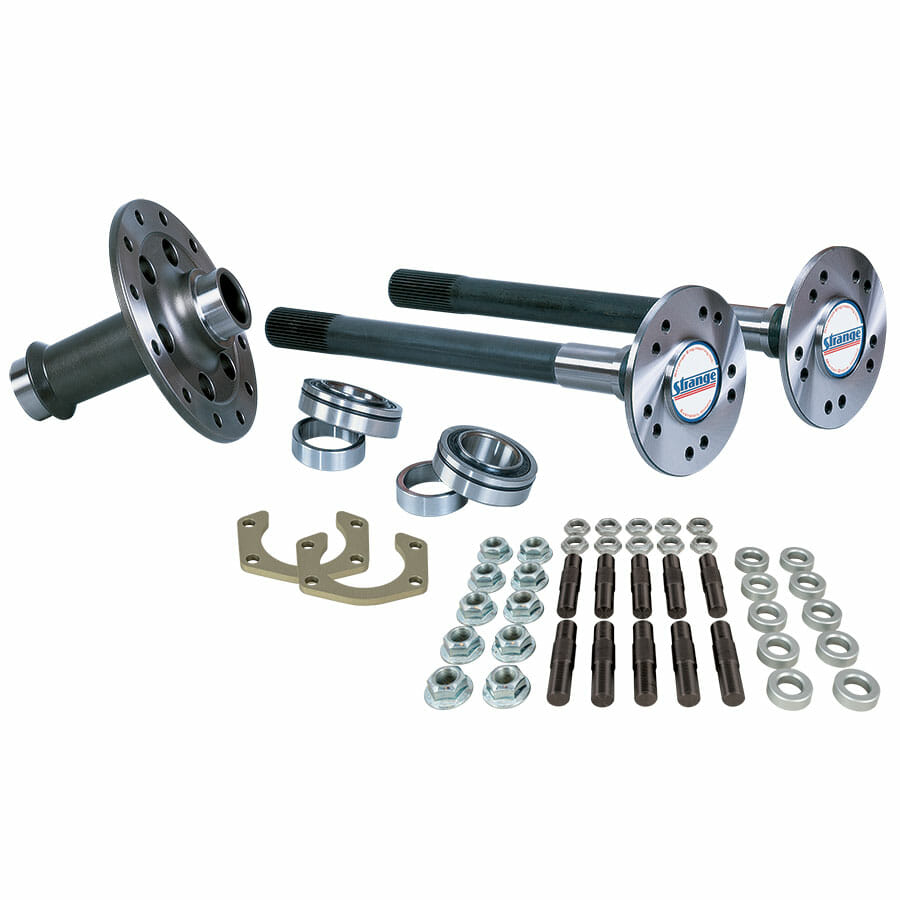

Strange Pro Race Axle & Spool Package 33 or 35 Spline Axles, Lightweight Spool Axle Bearings, Retainer Plates, & 5/8" Stud Kit

$815.00

Part Number: P200558

Pro Race Hy-Tuf axles are optimized for Drag Race use only
See our Alloy axle packages for street / track applications

Applications & Splines Available
Chevy 8.2 10 bolt… 33
Chevy 8.5 10 bolt… 33
Chevy 12 bolt car… 33 / 35
Dana 60………………. 35 / 40 *
Ford 8.8………………. 33 / 35
Ford 9″………………… 33 / 35 (requires 3.250″ bore case) / 40 *
Mopar 8 3/4″……….. 35
Olds/Pontiac……….. 35

* For 40 spline packages – See P2015 / P2017

Notes For This Axle Package
All Chevy & Ford 8.8 require replacement 3.150″ housing ends
Packages with C-clip Eliminator kit for OEM housing ends are shown below

This Pro Race Axle Package Includes:
Hy-Tuf Ultra Strength Axles – A1000
– Forged from low carbon, high manganese, high nickel, and high molybdenum steel
– Majority of machining performed before heat treat to provide consistent hardness
– Thru hardened to Rc 45-48 to maximize the material’s torsional strength
– Finish machined after heat treat to ensure accuracy
– Choice of 33 or 35 spline
– Lengths up to 34 7/8″
– Choice of bolt circle
– Forged in the USA
– Designed and machined by Strange Engineering

Sealed Ball Bearings – A1019 / A1021 / A1023 * / A1022 * / A1022OB *
– Low friction bearings designed specifically for Drag Racing
– O.D. grooved for o-ring to eliminate inner axle seal
– Includes o-rings and locking collars

* These bearings include retainer plates

Retainer Plates – A1016 / A1018 / A1114 / H1147B
– For A1019 or A1021 bearings
– New plates ensure proper axle retention

Choice of 5/8″-18 Stud Kit

Bolt Style – See A1027
– 5/8″-18 x 3″ Grade 8 fully threaded bolts
– Thin .200″ hex head provides additional clearance
– Width choice of anti-marring/spacer washers
– Includes threaded sleeves, installation tool & flanged lug nuts

Shank Style – See A1036 / A1037 / A1037MD / A1038 / A1039 / A1041
– 5/8″-18 chrome moly stud available in six different shank lengths
– Width choice of anti-marring/spacer washers
– Includes thin head self locking inner nuts & flanged lug nuts

Lightweight Steel Spool
– Forged from premium 8620 steel
– Surface hardened to Rc 45-48
– Lightened to maximize strength to weight
– Forged in the USA
– Designed and machined by Strange Engineering

Note- See your rear end application for more spool information

Options
Install axle bearings & retainer plates………. See A1008R
Five round lightening holes in axle flange… See A1003
Ultra Light flange……………………………………… See A1006
Gun-drill 35 spline axles…………………………… See A1005 / A1005AC

Other Packages
Pro Race Axle & Spool Package
With 1/2″ studs…….. See P2005

Pro Race Axle & Spool Packages With C-Clip Eliminator Kit
OEM Chevy ends………………….. See P2000GDR58
OEM Ford 8.8 ends… See P2000FM8658 / P2000FM9458 / P2000FM0558

Pro Race 40 spline Axle & Spool Packages
Gundrilled…………………………… See P2015
Solid……………………………………. See P2017

Hybrid Axle & Spool Package with Eliminator kit
For multiple use vehicles in Street / Oval Track / Drag Racing
33 & 35 spline………………………… See P2000GOT58

Alloy Axle & Spool Packages
35 spline with 5/8″ studs… See P350458S

  • Total

Description

Strange Pro Race Axle & Spool Package 33 or 35 Spline Axles, Lightweight Spool Axle Bearings, Retainer Plates, & 5/8″ Stud Kit.

After more than 50-years of providing the ultimate drag racing axle, Strange knows what axles to stock for specific applications. Strange Pro Race Axles are made from a steel alloy that was originally intended for use in military aircraft landing gear. Hy-Tuf is in a class of ultra-strength alloys configured with a low concentration of carbon and high degrees of manganese, nickel, and molybdenum steel.

We Cut Before Heat Treatment, Not After.

We can not stress enough the importance that Strange Engineering does all of its machine work on the axle splines prior to heat treatment. This allows for consistent heat treat depth, leading to a stronger axle. Be aware that many companies heat-treat the materials before the splines are machined into the axle which causes them to have a shiny appearance.

Strange axles are manufactured with a large bearing area diameter (1.563-inch) for additional strength. To minimize stress concentration, the Strange axle shoulder is designed with an extra-large radius and utilizes an adaptive ring. As one side mates to the large radius.

Strange Lightweight Steel Spool is forged in the USA from premium steel and hardened. This lightweight pro series spool carries a Limited Lifetime Warranty.
