Pro Race Axle & Spool Package                                                                           For 1986-1993 Mustang 8.8 Rear End                                                             Race Axles, Lightweight Spool, C-Clip Eliminator kit & 5/8″ Stud Kit

/, Drag Race, Custom Axle Packages / Components, Pro Race Custom Axle Packages, Ford, Ford, Axle Packages / Components/

Pro Race Axle & Spool Package                                                                           For 1986-1993 Mustang 8.8 Rear End                                                             Race Axles, Lightweight Spool, C-Clip Eliminator kit & 5/8″ Stud Kit

Pro Race Axle & Spool Package                                                                           For 1986-1993 Mustang 8.8 Rear End                                                             Race Axles, Lightweight Spool, C-Clip Eliminator kit & 5/8″ Stud Kit

$669.00

Part Number: P2000FM8658

Hy-Tuf axles are optimized for Drag Race use only
See our Alloy axle packages for street / track applications

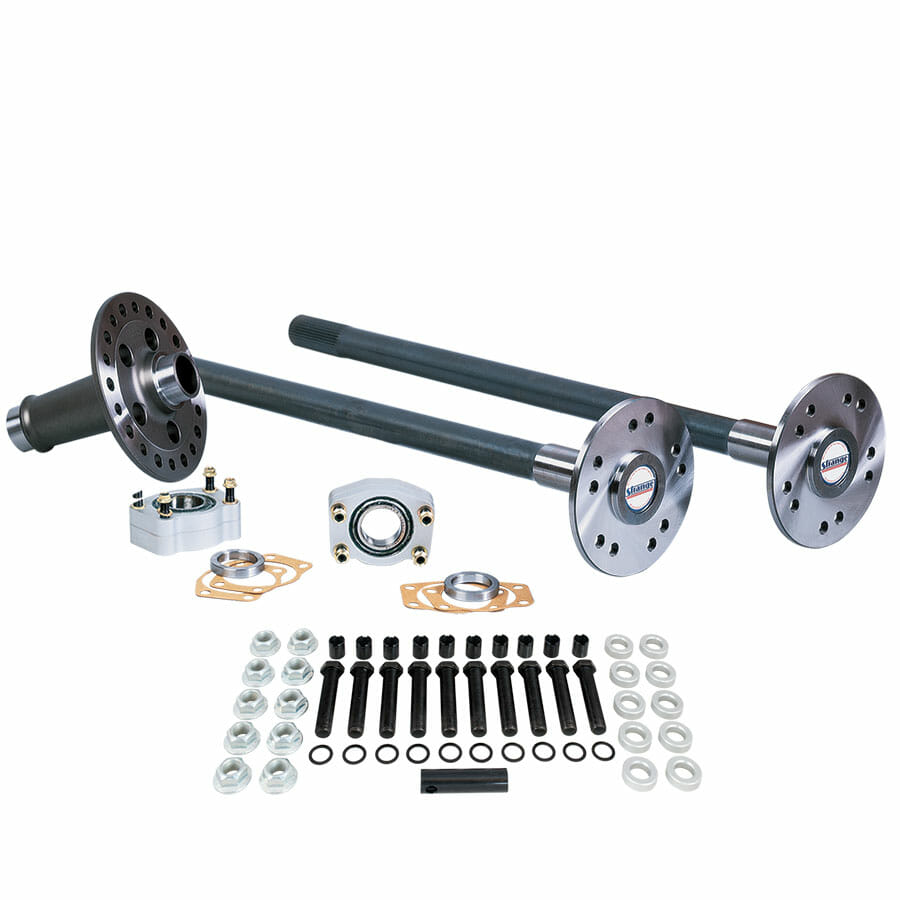

Package Includes

Hy-Tuf Ultra Strength Axles – A1000
• Forged from low carbon, high manganese, high nickel, and high molybdenum steel
• Majority of machining performed before heat treat to provide consistent hardness
• Thru hardened to Rc 45-48 to maximize the material's torsional strength
• Finish machined after heat treat to ensure accuracy
• 33 spline – Can be upgraded to 35 spline for an additional charge
• Custom lengths available at no extra charge
• Choice of bolt circle
• Designed and machined by Strange Engineering
• Forged in the USA

C-Clip Eliminator Kit – A1090
• Billet aluminum halves to accept OEM drum brakes *
• Chrome moly studs installed in outer halves
• Timken® Tapered Unit bearings for long bearing life
• Locking rings
• Outer seals
• Gaskets, washers, & flanged locking nuts

* Will also work with aftermarket disc brake kits designed for use with eliminator kit

Choice of 5/8″ Bolt Style Stud Kit – A1027S / A1027 / A1027L
• 5/8″-18 x 3″ Grade 8 fully threaded bolts *
• Thin .200″ hex head provides additional clearance
• Width choice of anti-marring/spacer washers
• Includes threaded sleeves, installation tool & flanged lug nuts

* Measured from underneath the hex of the stud

Double Ended 5/8″ Studs Will Not Clear This Eliminator Kit

Lightweight Steel Spool – D1560 33 spline / D1567 35 spline
• Forged from premium 8620 steel
• Surface hardened to Rc 45-48
• Lightened to maximize strength to weight
• Designed and machined by Strange Engineering
• Forged in the USA


Options

Upgrade to 35 spline……………………. OPRA01
Install eliminator kit……………………… A1008C
Install eliminator kit & studs……….. A1008SC
Lightening holes in flange……………… A1003
Ultra Light flange…………………………… A1006


Other Packages

Pro Race
1994-2004………………………………… P2000FM9458
2005-2014………………………………… P2000FM0558

Alloy
1986-1993………………………………… P3509F8658S
1994-2004………………………………… P3509F9458S
2005-2014………………………………… P3509F0558S



Description

1986-1993 Ford Mustang 8.8 Pro Race axles, eliminator kit, 5/8″ stud kit, & L/W spool

Additional information

Weight 59. lbs
