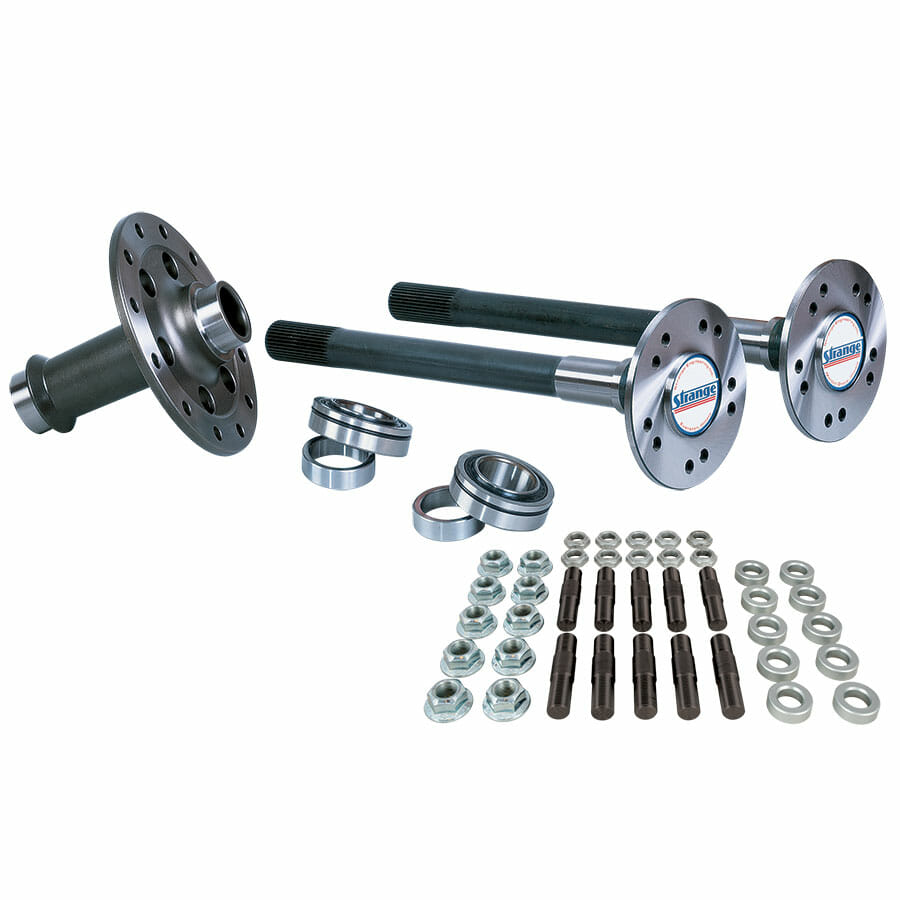

Drag Race 33 / 35 Spline Axle & Spool Package
Axles, Bearings, 5/8" Studs & Spool

$735.00

Part Number: P200758


Designed Specifically For Drag Racing
Thru-hardening maximizes the torsional strength of Hy-Tuf axles
This also reduces the flexibility necessary for street driving

Application & Splines Available
Chevy 8.2 10 bolt * – 33
Chevy 8.5 10 bolt * – 33
Chevy 12 bolt car * – 33 / 35
Dana 60 * – 35
Ford 8.8 * – 33 / 35
Ford 9″ ** – 33 / 35 ***
Mopar 8 3/4″ * – 35
Olds 1957-64 – 35

* With aftermarket 3.150″ housing ends
** With factory or aftermarket 3.150″ housing ends
*** Ford 9″ 35 spline spool requires 3.250″ bore aftermarket case

Mopar 2.875″ Ends or Small Ford 2.834″ Ends – P200558

Chevy 12 Bolt or Ford 8.8 with OEM Ends
See axle packages with eliminator kits

Includes

Hy-Tuf Ultra Strength AxlesA1000
• Forged from high nickel, molybdenum and chromium steel
• Increases torsional strength and material toughness
• Manganese added to improve hardness consistency
• Majority of machining performed before heat treat
• Thru hardened to Rc 45-48
• Finish machined after heat treat to ensure trueness
• Choice of 33 or 35 spline
• Choice of bolt circle
• Forged in the USA
• Designed and machined by Strange Engineering

Sealed Ball BearingsA1019 / A1021 / A1023A
• Low friction bearings designed specifically for Drag Racing
• Race O.D. grooved for O-ring to eliminate inner axle seal
• Includes O-rings and locking collars

Choice of 5/8″-18 Stud Kit

Bolt Style Stud KitA1027 / A1027S / A1027L
• 5/8″-18 x 3″ Grade 8 fully threaded bolts *
• Thin .200″ hex head provides additional clearance
• Part number suffix determines width of aluminum washers
• No suffix = .4375″ / S = .250″ / L = .688″
• Includes threaded sleeves, installation tool & flanged lug nuts

* Length measured from underneath the hex of the stud

Shank StyleA1036 / A1037 / A1037MD / A1038 / A1039 / A1041
• 5/8″-18 chrome moly stud available in six different shank lengths
• Part number suffix determines width of aluminum washers
• No suffix = .4375″ / S = .250″ / L = .688″
• Includes thin head self locking inner nuts & flanged lug nuts

Lightweight Steel Spool
• Forged from premium 8620 steel
• Surface hardened to Rc 45-48
• Lightened to maximize strength to weight
• Forged in the USA
• Designed and machined by Strange Engineering

Chevy & Dana Spools are Series Specific
See spool information to ensure ratio compatibility
8.2 10 bolt 33 spline D1521
8.5 10 bolt 33 spline D1524
12 bolt 33 spline D1540 / D1549
12 bolt 35 spline D1542 / D1541
Dana 60 35 spline D1547 / D1548

Labor Option
Install axle bearings – A1008
Five round lightening holes – A1003
Ultra Light flange – A1006


Description

Drag Race axles, axle bearings, 5/8″ stud kit, & lightweight spool
