Hy-Tuf axles are optimized for Drag Race use only
See our Alloy axle packages for street / track applications

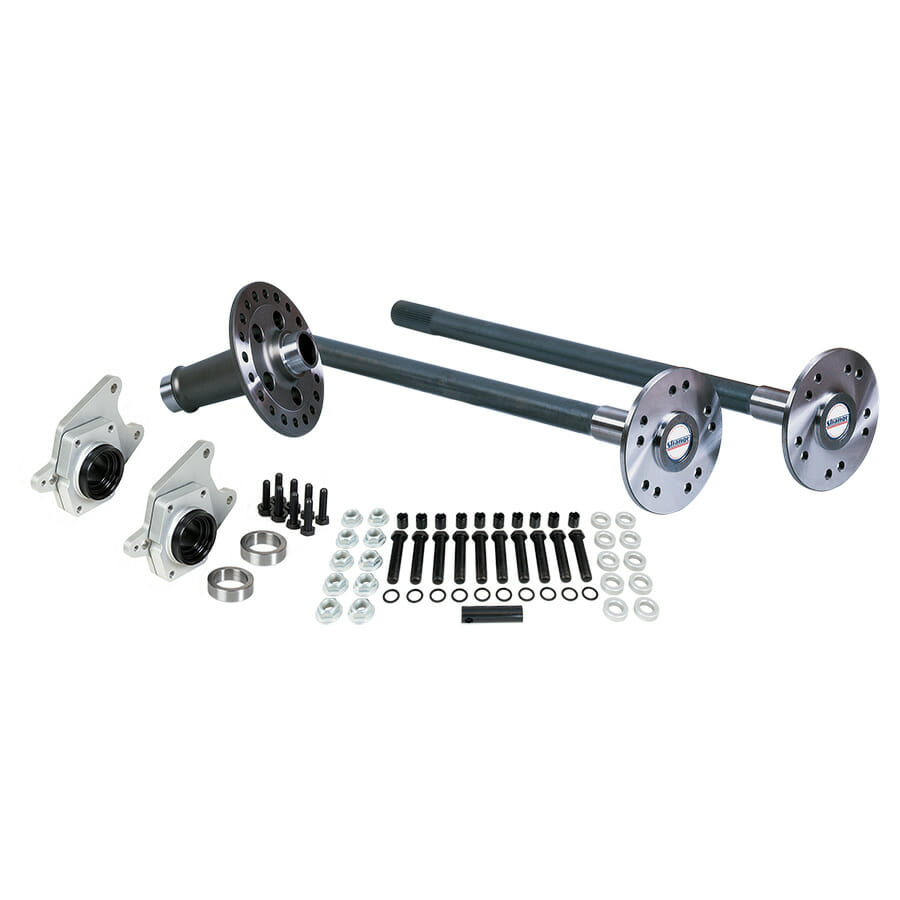

Package Includes
Hy-Tuf Ultra Strength Axles – A1000
• Forged from low carbon, high manganese, high nickel, and high molybdenum steel
• Majority of machining performed before heat treat to provide consistent hardness
• Thru hardened to Rc 45-48 to maximize the material's torsional strength
• Finish machined after heat treat to ensure accuracy
• 33 spline – Can be upgraded to 35 spline for an additional charge
• Custom lengths available at no extra charge
• Choice of bolt circle
• Designed and machined by Strange Engineering
• Forged in the USA
C-Clip Eliminator Kit – A1099
• Billet aluminum caliper mounts to accept GT brakes
• Aluminum inner halves
• Timken® Tapered Unit bearings for long bearing life
• Bearing spacer/reluctor ring adapters
• Locking rings
• Outer seals
• O-rings
• Housing end bolts
• Hardened washers for use with OEM caliper mounting bolts
Choice of 5/8″ Bolt Style Stud Kit – A1027S / A1027 / A1027L
• 5/8″-18 x 3″ Grade 8 fully threaded bolts *
• Thin .200″ hex head provides additional clearance
• Width choice of anti-marring/spacer washers
• Includes threaded sleeves, installation tool & flanged lug nuts
* Measured from underneath the hex of the stud
Double Ended 5/8″ Studs Will Not Clear This Eliminator Kit
Lightweight Steel Spool – D1560 33 spline / D1567 35 spline
• Forged from premium 8620 steel
• Surface hardened to Rc 45-48
• Lightened to maximize strength to weight
• Designed and machined by Strange Engineering
• Forged in the USA
Notes For ABS
This kit will work with factory reluctor rings
Read instructions carefully beforehand as assembly order is crucial
Options
Upgrade to 35 spline……………………………….. OPRA01
OEM 05-14 reluctor ring…………………………… A1098I
Lightening holes in flange…………………………. A1003
Ultra Light flange………………………………………. A1006
Labor Only
Install eliminator kit…………………………………. A1008C
Install eliminator kit & studs…………………… A1008SC
Install studs, reluctors & eliminator kit….. A1008SRC
Other Packages
Pro Race
1986-1993…………………………………………… P2000FM8658
1994-2004…………………………………………… P2000FM9458
Alloy
1986-1993…………………………………………… P3509F8658S
1994-2004…………………………………………… P3509F9458S
2005-2014…………………………………………… P3509F0558S
