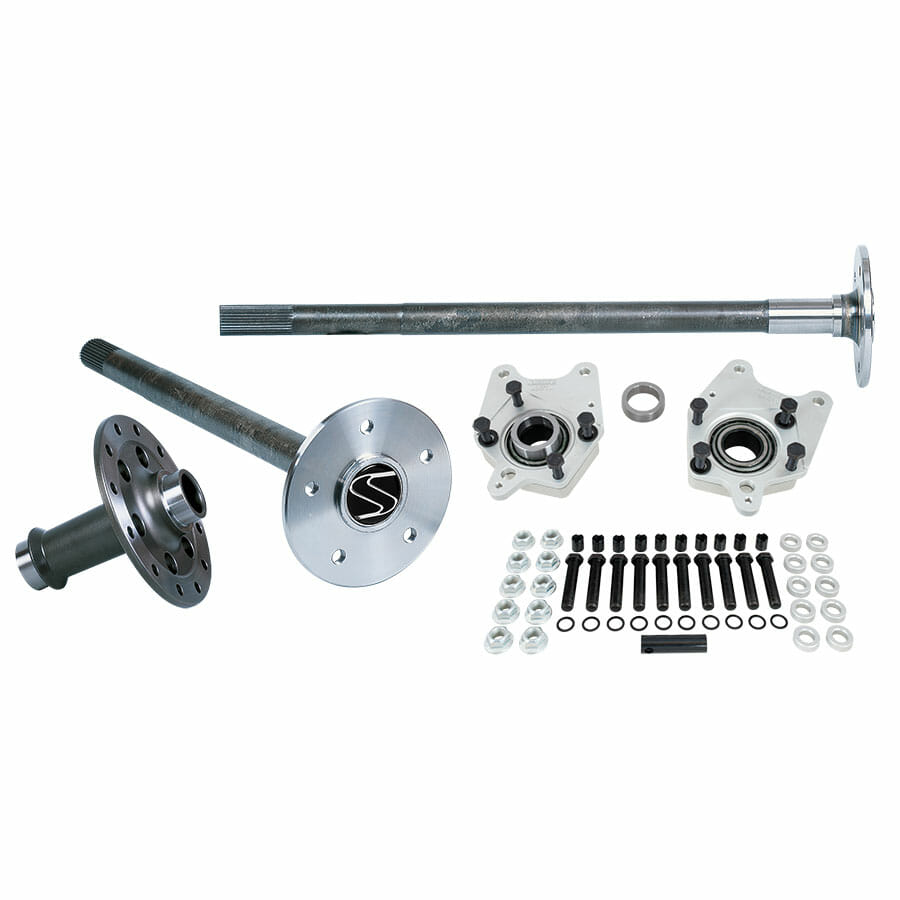

05-14 Mustang 8.8 Alloy Axle & Spool Package
35 Spline Axles, Spool, Eliminator, & 5/8" Studs

$945.00

Part Number: P3509F0558S

Alloy axle packages are optimized for street & track use
See our Hy-Tuf axles for maximum torsional strength for all out Drag Racing

Package Includes

Alloy Axles – A3500
• Forged from modified 1550 premium steel
• Majority of machining performed before heat treat to provide consistent hardness
• Induction hardened to Rc 58-62 to increase torsional strength while remaining ductile
• Finish machined after heat treat to ensure accuracy
• 35 spline with 30° pressure angle
• Custom lengths available at no additional charge
• Choice of bolt circle
• Designed and machined by Strange Engineering
• Forged in the USA

C-Clip Eliminator Kit – A1099ST
• Billet aluminum caliper mounts to accept OEM GT brakes
• Aluminum inner halves
• Timken® Tapered Unit bearings for long bearing life
• Bearing spacer/reluctor ring adapters
• Locking rings
• Outer seals
• O-rings
• Housing end bolts
• Hardened washers for use with OEM caliper mounting bolts

Choice of 5/8″ Bolt Style Stud Kit – A1027S / A1027 / A1027L
• 5/8″-18 x 3″ Grade 8 fully threaded bolts *
• Thin .200″ hex head provides additional clearance
• Width choice of anti-marring/spacer washers
• Includes threaded sleeves, installation tool & flanged lug nuts

* Measured from underneath the hex of the stud

Double Ended 5/8″ Studs Will Not Clear This Eliminator Kit

Lightweight Steel Spool
• Forged from premium 8620 steel
• Surface hardened to Rc 45-48
• Lightened to maximize strength to weight
• Forged in the USA
• Designed and machined by Strange Engineering

Notes For ABS
This kit will work with stock factory reluctor rings
Read instructions carefully beforehand as assembly order is crucial

Options
Supply pair of reluctor rings …………………… OPAX05

Labor Only
Install eliminator kit…………………………………. A1008C
Install eliminator kit & studs…………………… A1008SC
Install studs, reluctors & eliminator kit….. A1008SRC

Other Packages
Alloy
1986-1993…………………………………………… P3509F8658S
1994-2004…………………………………………… P3509F9458S

Pro Race
1986-1993…………………………………………… P2000FM8658
1994-2004…………………………………………… P2000FM9458
2005-2014…………………………………………… P2000FM0558

Description

2005-2014 Ford Mustang 8.8 35 spline Alloy axles, eliminator kit, 5/8″ stud kit, & L/W steel spool
