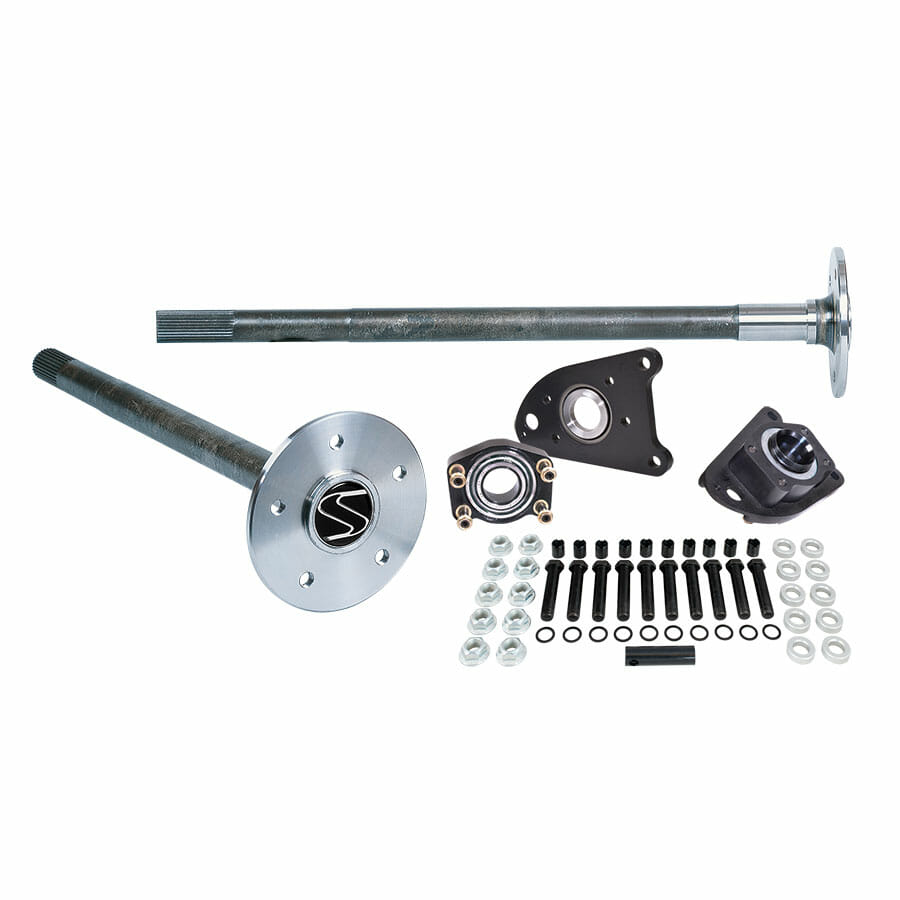

94-04 Mustang Alloy Axle Package
31 Spl Axles, Eliminator Kit & 5/8" Studs


Alloy Axles are Optimized for Street & Track
Provides greater torsional strength while retaining flexibility

For Pure Drag Racing – P1011F9458

Application
1994-2004 Mustang

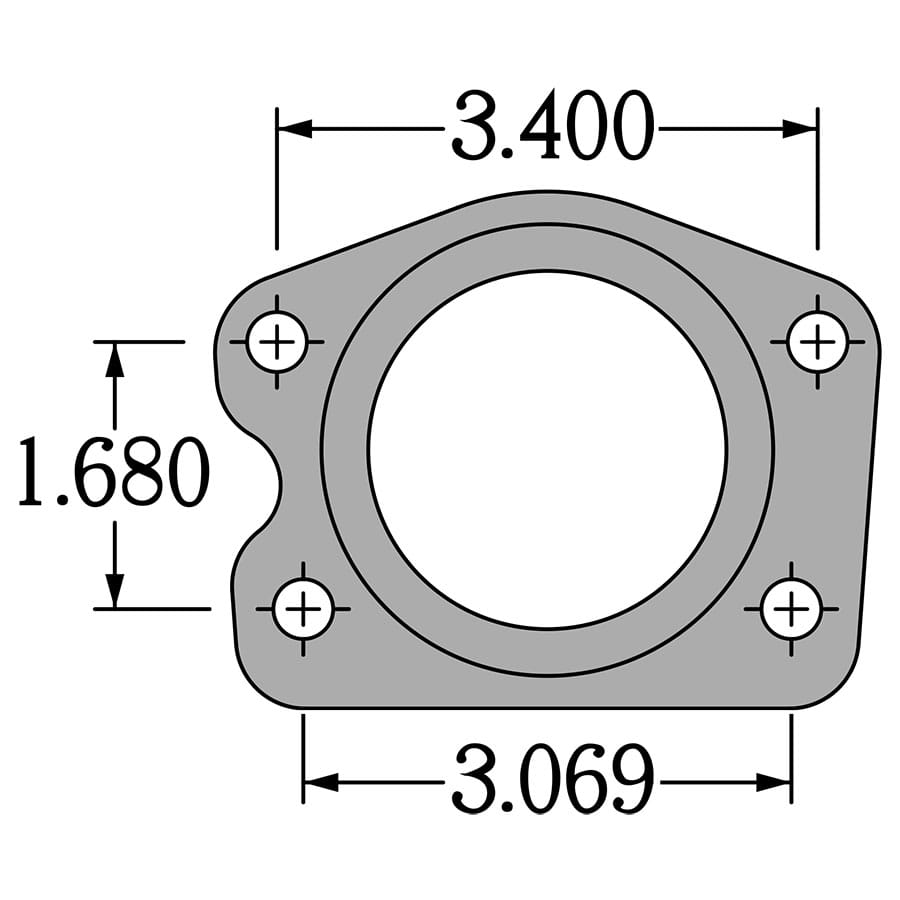

With OEM housing ends and GT or Cobra disc brakes
Rotors will need to be drilled to suit larger studs

Includes

Alloy Axles – A3100
• Forged from modified 1550 premium steel
• Majority of machining performed before heat treat
• Provides consistent material hardness
• Induction hardened to Rc 58-62
• Increases torsional strength while remaining ductile
• Finish machined after heat treat to ensure trueness
• Choice of bolt circle
• Forged in the USA
• Designed and machined by Strange Engineering

C-Clip Eliminator Kit – GT brakes A1094 / Cobra brakes A1095
• Billet aluminum caliper mounts
• Accepts OEM disc brakes – Specify GT or Cobra brakes
• Aluminum inner halves
• Tapered bearings ensure long bearing life
• Bearing spacer/reluctor ring adapters
• Locking rings
• Outer seals
• O-rings
• Housing end bolts
• Hardened washers
Reuses OEM caliper mounting bolts

Choice of 5/8″ Bolt Style Stud Kit – A1027 / A1027S / A1027L
• 5/8″-18 x 3″ Grade 8 fully threaded bolts *
• Thin .200″ hex head provides additional clearance
• Part number suffix determines width of aluminum washers
• No suffix = .4375″ / S = .250″ / L = .688″
• Includes threaded sleeves, installation tool & flanged lug nuts

* Length measured from underneath the hex of the stud
Double Ended 5/8″ Studs Will Not Clear This Eliminator Kit

ABS – This Kit Won’t Work With OEM Reluctor Rings
See optional Strange reluctor rings below
Read instructions carefully beforehand as assembly order is crucial

Part Option
Supply pair of Strange reluctor rings – OPAX01

Labor Option
Install eliminator kit – A1008C
Install eliminator kit & studs – A1008SC
Install eliminator kit, studs & reluctor rings – A1008SRC
