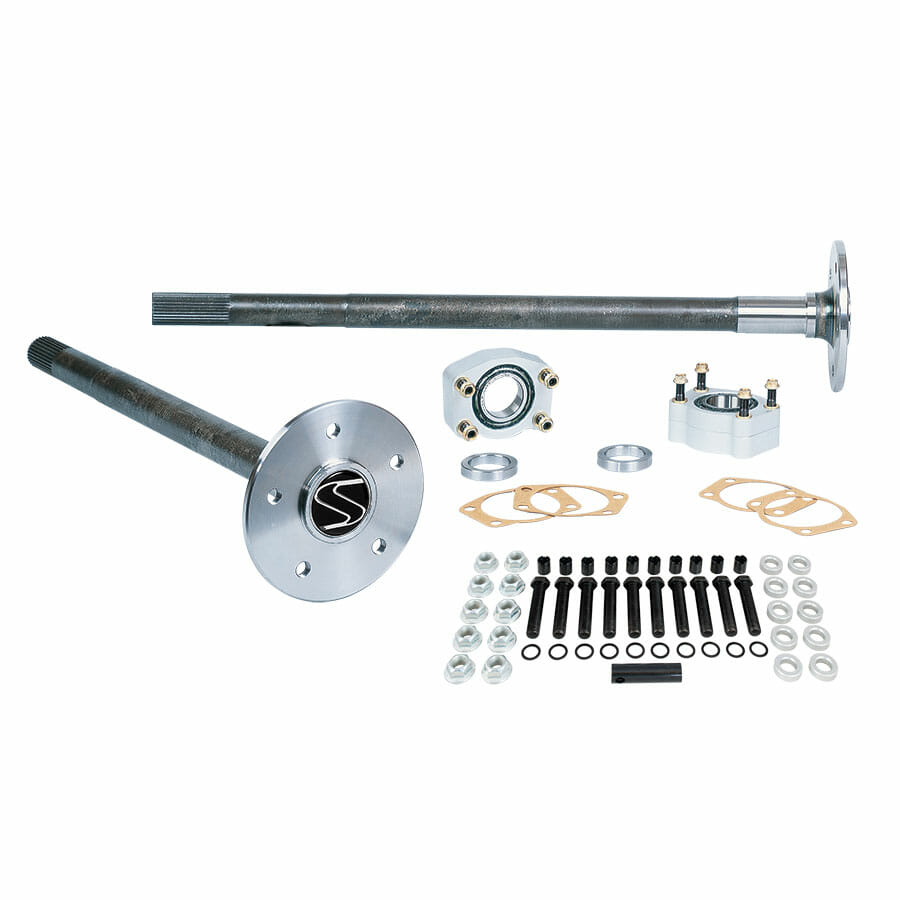

'86-'93 Mustang Alloy Axle Package
31 Spl Axles, Eliminator Kit, & 5/8" Studs

$555.00

Part Number: P3109F8658


Alloy Axles are Optimized for Street & Track
Provides greater torsional strength while retaining flexibility

For Pure Drag Racing – P1011F8658

Includes

Alloy AxlesA3100
• Forged from modified 1550 premium steel
• Majority of machining performed before heat treat
• Provide consistent material hardness
• Induction hardened to Rc 58-62
• Increases torsional strength while remaining ductile
• Finish machined after heat treat to ensure trueness
• Choice of bolt circle
• Forged in the USA
• Designed and machined by Strange Engineering

C-Clip Eliminator KitA1090
• Billet aluminum inner and outer halves
• Tapered bearings ensure long bearing life
• Locking rings
• Outer seals
• Gaskets
• Grade 8 studs with locking nuts & washers

Choice of 5/8″ Bolt Style Stud KitA1027 / A1027S / A1027L
• 5/8″-18 x 3″ Grade 8 fully threaded bolts *
• Thin .200″ hex head provides additional clearance
• Part number suffix determines width of aluminum washers
• No suffix = .4375″ / S = .250″ / L = .688″
• Includes threaded sleeves, installation tool & flanged lug nuts

* Length measured from underneath the hex of the stud
Double Ended 5/8″ Studs Will Not Clear This Eliminator Kit

Labor Option
Install eliminator kit – A1008C
Install eliminator kit & studs – A1008SC


Description

1986-1993 Ford Mustang 8.8 28 or 31 spline Alloy axles, eliminator kit & 5/8″ stud kit
