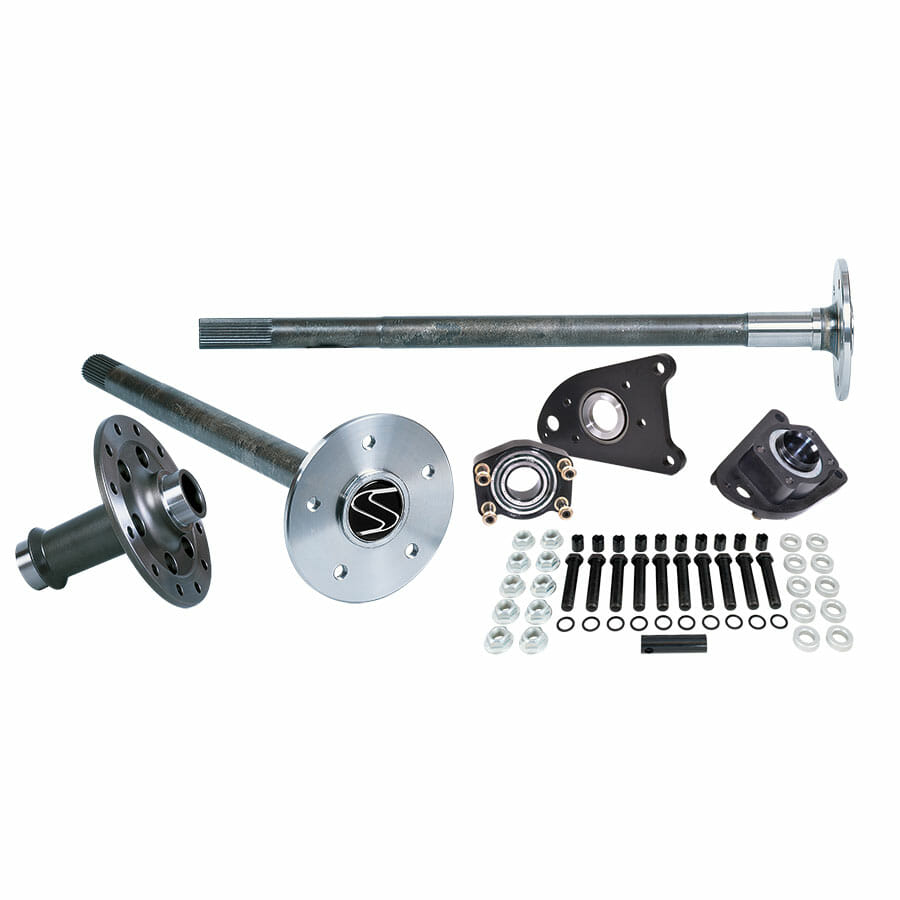

Strange Alloy Axle & Spool Package For 1994-2004 Mustang 8.8 Rear End 35 Spline Alloy Axles, Spool, C-Clip Eliminator Kit, & 5/8" Stud Kit

$879.00

Part Number: P3509F9458S

Alloy axle packages are optimized for street & track use
See our Hy-Tuf axles for maximum torsional strength for all out Drag Racing

Package Includes
Alloy Axles – A3500
• Forged from modified 1550 premium steel
• Majority of machining performed before heat treat to provide consistent hardness
• Induction hardened to Rc 58-62 to increase torsional strength while remaining ductile
• Finish machined after heat treat to ensure accuracy
• 35 spline with 30° pressure angle
• Custom lengths available at no additional charge
• Choice of bolt circle
• Designed and machined by Strange Engineering
• Forged in the USA

C-Clip Eliminator Kit – A1094 GT brakes / A1095 Cobra brakes
• Billet aluminum caliper mounts to accept OEM brakes
• Aluminum inner halves
• Timken® Tapered Unit bearings for long bearing life
• Bearing spacer/reluctor ring adapters
• Locking rings
• Outer seals
• O-rings
• Housing end bolts
• Hardened washers for use with OEM caliper mounting bolts

Choice of 5/8″ Bolt Style Stud Kit – A1027S / A1027 / A1027L
• 5/8″-18 x 3″ Grade 8 fully threaded bolts *
• Thin .200″ hex head provides additional clearance
• Width choice of anti-marring/spacer washers
• Includes threaded sleeves, installation tool & flanged lug nuts

* Measured from underneath the hex of the stud

Double Ended 5/8″ Studs Will Not Clear This Eliminator Kit

Lightweight Steel Spool
• Forged from premium 8620 steel
• Surface hardened to Rc 45-48
• Lightened to maximize strength to weight
• Forged in the USA
• Designed and machined by Strange Engineering

Notes For ABS
This kit will not work with factory reluctor rings – See custom rings below
Read instructions carefully beforehand as assembly order is crucial

Options
Custom 94-04 reluctor ring – each…………… A1094E

Labor Only
Install elimina/tor kit…………………………………. A1008C
Install eliminator kit & studs…………………… A1008SC
Install studs, reluctors & eliminator kit….. A1008SRC

Other Packages
Alloy
1986-1993……………………………………………. P3509F8658S
2005-2014……………………………………………. P3509F0558S

Pro Race
1986-1993…………………………………………… P2000FM8658
1994-2004…………………………………………… P2000FM9458
2005-2014…………………………………………… P2000FM0558

  • Total

Description

94-04 Mustang 8.8 35 Spline Axle Package with c clip eliminator kit, spool and 5/8″ Studs

To provide greater flexibility, Strange 35 spline alloy axles are CNC precision-machined from premium forged alloy steel and are induction hardened to resist bending loads. When axles are intended for use in street applications, this type of heat treatment is crucial to ensure a strong axle that can be safely utilized in this environment.

We Cut Before Heat Treatment, Not After.

We can not stress enough the importance that Strange Engineering does all of its machine work on the axle splines prior to heat treatment. This allows for consistent heat treat depth, leading to a stronger axle. Be aware that many companies heat-treat the materials before the splines are machined into the axle which causes them to have a shiny appearance.

Strange axles are manufactured with a large bearing area diameter (1.563-inch) for additional strength. The Strange axle shoulder is designed with an extra large radius and utilizes an adaptive ring to minimize stress concentration.

Strange Lightweight Steel Spool is forged in the USA from premium 4140 steel and carries a Limited Lifetime Warranty.

Strange Engineering has led the industry with an innovative focus. During the early 1970s, Strange brought the C-Clip Eliminator to the market.

Under the extreme effects of drag racing, axles that are held in using only a small c clip can lead to disastrous results. If the c-clip breaks or simply comes off, the wheel and the full axle may come out of the rear housing. This can be a hazard to vehicle occupants and bystanders, alike. By using the Strange 8.8 C-Clip Eliminator Kit you get rid of the C-clips in your rear end and can ensure that the axle remains inside the housing.

The Strange Mustang C-Clip Eliminator Kit helps make the rear axle safer and more durable. The lightweight aluminum housing bolts up to the axle tube with simple modifications. It incorporates low friction bearings that have a reduction in rotational loss. It incorporates Timken® Tapered Bearings that allow for Street or Strip use. This kit can be used with drum brakes and some aftermarket disc brakes.

1994 Mustang c clip eliminator kit with spool
1995 Mustang c clip eliminator kit with spool
1996 Mustang c clip eliminator kit with spool
1997 Mustang c clip eliminator kit with spool
1998 Mustang c clip eliminator kit with spool
1999 Mustang c clip eliminator kit with spool
2000 Mustang c clip eliminator kit with spool
2001 Mustang c clip eliminator kit with spool
2002 Mustang c clip eliminator kit with spool
2003 Mustang c clip eliminator kit with spool
2004 Mustang c clip eliminator kit with spool
