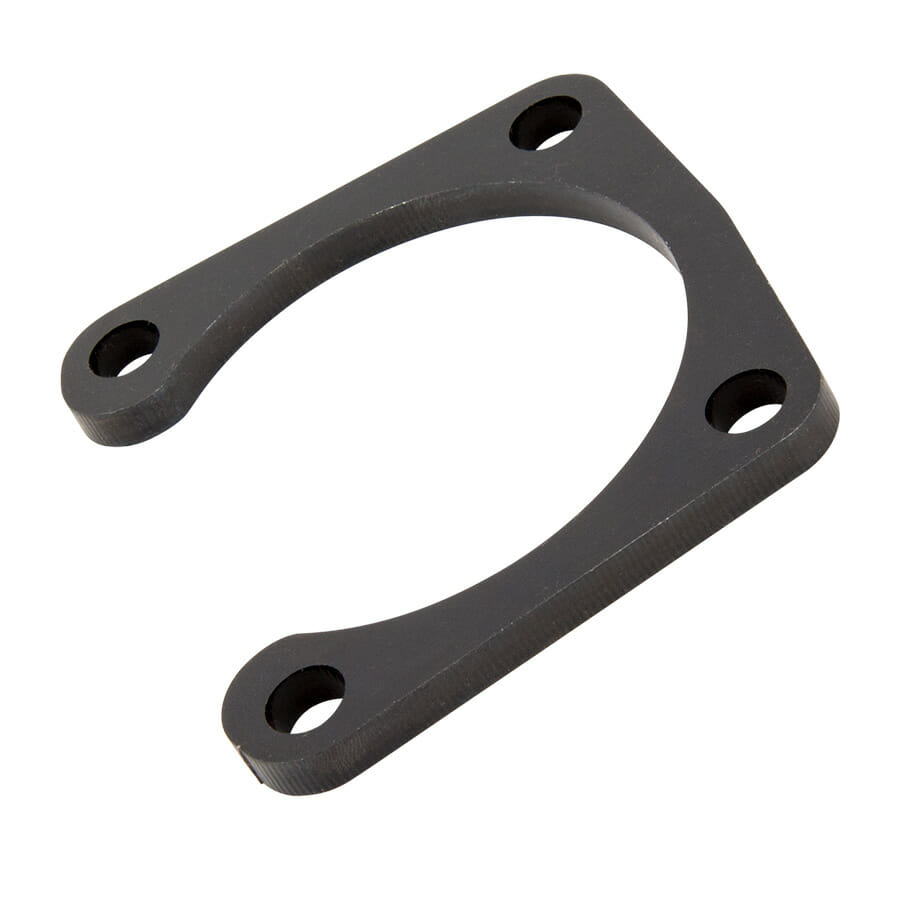

Axle Bearing Retainer Plate
For H1143 Housing End


Part Number: A1114

Axle Bearing Retainer Plate
For GM drum brakes

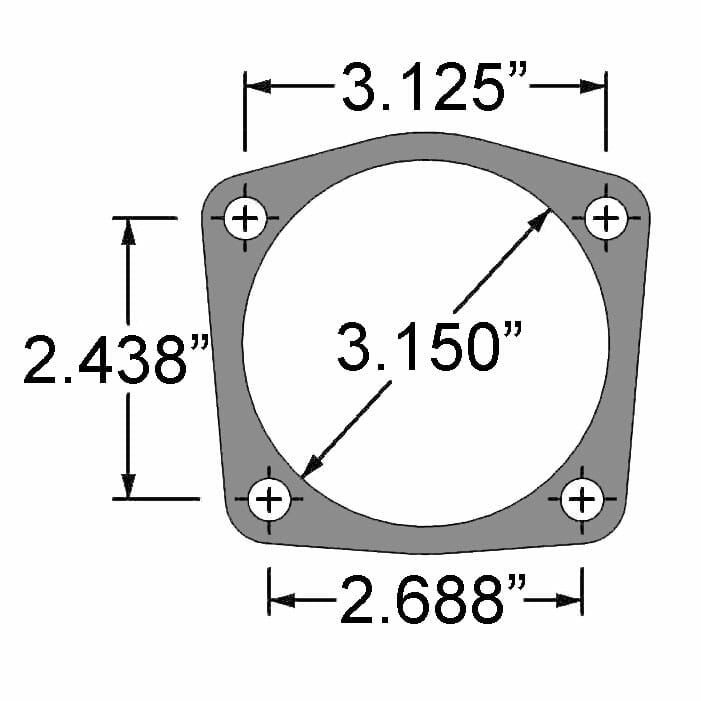

Using Strange 3.150″ housing ends – H1143

Sold as Each

Essential when using drum brakes with these housing ends
It starts out flat until the axle bearing is fully seated
Further tightening causes deflection until it secures the backing plate

Tapered axle bearings utilize an outboard seal
It initially protrudes further than with a ball style bearing
More movement is required for sealing and setting bearing preload


Small GM retainer plate for 3.150″ axle bearing
