Pro Race Axle & Spool Package                                                                           For 1994-2004 Mustang 8.8 Rear End                                                             Race Axles, Lightweight Spool, C-Clip Eliminator kit & 1/2″ Studs

/, Drag Race, Custom Axle Packages / Components, Pro Race Custom Axle Packages, Ford, Ford, Axle Packages / Components/

Pro Race Axle & Spool Package                                                                           For 1994-2004 Mustang 8.8 Rear End                                                             Race Axles, Lightweight Spool, C-Clip Eliminator kit & 1/2″ Studs

Pro Race Axle & Spool Package                                                                           For 1994-2004 Mustang 8.8 Rear End                                                             Race Axles, Lightweight Spool, C-Clip Eliminator kit & 1/2″ Studs

$696.00

Part Number: P2000FM94

Hy-Tuf axles are optimized for Drag Race use only
See our Alloy axle packages for street / track applications

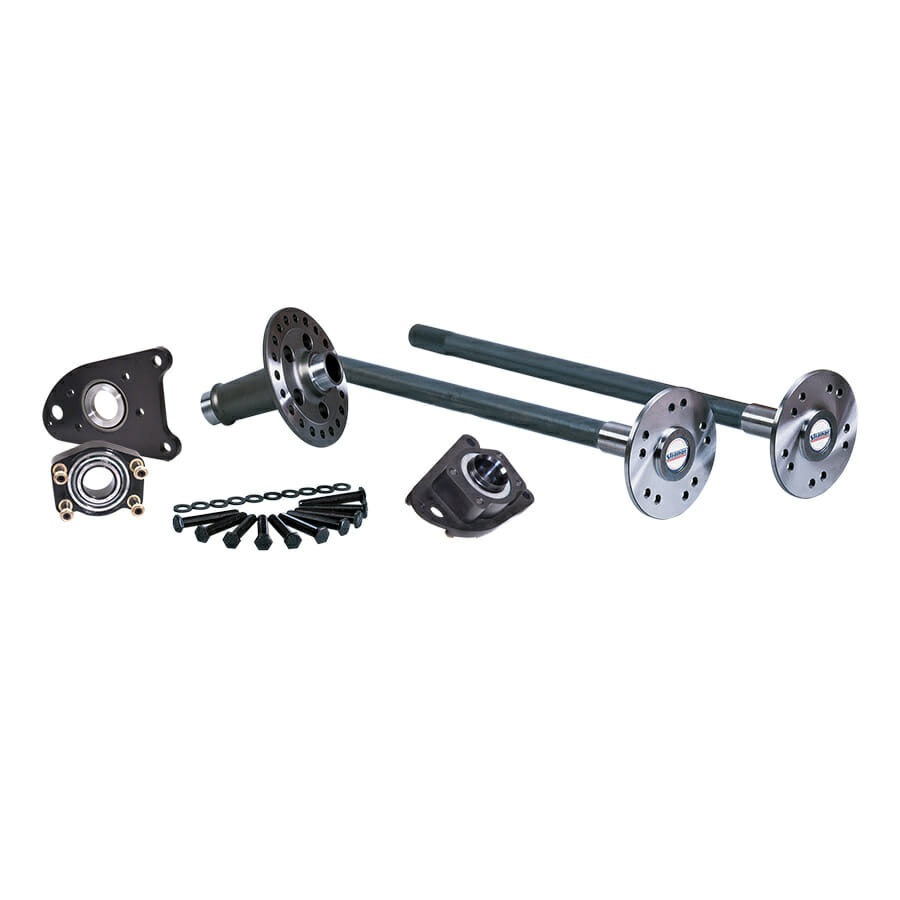

Package Includes

Hy-Tuf Ultra Strength Axles – A1000
• Forged from low carbon, high manganese, high nickel, and high molybdenum steel
• Majority of machining performed before heat treat to provide consistent hardness
• Thru hardened to Rc 45-48 to maximize the material's torsional strength
• Finish machined after heat treat to ensure accuracy
• 33 spline – Can be upgraded to 35 spline for an additional charge
• Custom lengths available at no additional charge
• Choice of bolt circle
• Designed and machined by Strange Engineering
• Forged in the USA

C-Clip Eliminator Kit – A1094 GT brakes / A1095 Cobra brakes
• Billet aluminum caliper mounts to accept OEM brakes
• Aluminum inner halves
• Timken® Tapered Unit bearings for long bearing life
• Bearing spacer/reluctor ring adapters
• Locking rings
• Outer seals
• O-rings
• Housing end bolts
• Hardened washers for use with OEM caliper mounting bolts

1/2″-20 Screw-in Wheel Studs – A1025 / A1026
• Chrome moly material
• Threads are rolled for maximum strength
• Choice of 2″ or 3″ long studs *
• Includes .060″ hardened washers

* Measured from underneath the hex of the stud

Lightweight Steel Spool – D1560 33 spline / D1567 35 spline
• Forged from premium 8620 steel
• Surface hardened to Rc 45-48
• Lightened to maximize strength to weight
• Forged in the USA
• Designed and machined by Strange Engineering

Notes For ABS
This kit will not work with factory reluctor rings – Custom rings sold below
Read instructions carefully beforehand as assembly order is crucial


Options

Upgrade to 35 spline……………………… OPRA01
Custom 94-04 reluctor ring…………….. A1094E
Lightening holes in flange……………….. A1003
Ultra Light flange…………………………….. A1006

Labor Only
Install eliminator kit……………………….. A1008C
Install eliminator kit & studs…………. A1008SC
Install elim kit, studs, & reluctors…. A1008SRC


Other Packages

Pro Race
1986-1993…………………………………… P2000FM86
2005-2014…………………………………… P2000FM05

Alloy
1986-1993…………………………………… P3509F86S
1994-2004…………………………………… P3509F94S
2005-2014…………………………………… P3509F05S



Description

1994-2004 Ford Mustang 8.8 Pro Race axles, eliminator kit, 1/2″ wheel studs, & L/W spool

Additional information

Weight 55.00 lbs
