86-93 Mustang Alloy Axle Package
35 Spl Axles, Eliminator Kit, & 1/2" Studs

$495.00

Part Number: P3509F86


Alloy Axles are Optimized for Street & Track
Provides greater torsional strength while retaining flexibility

For Pure Drag Racing – P1011F86

Application

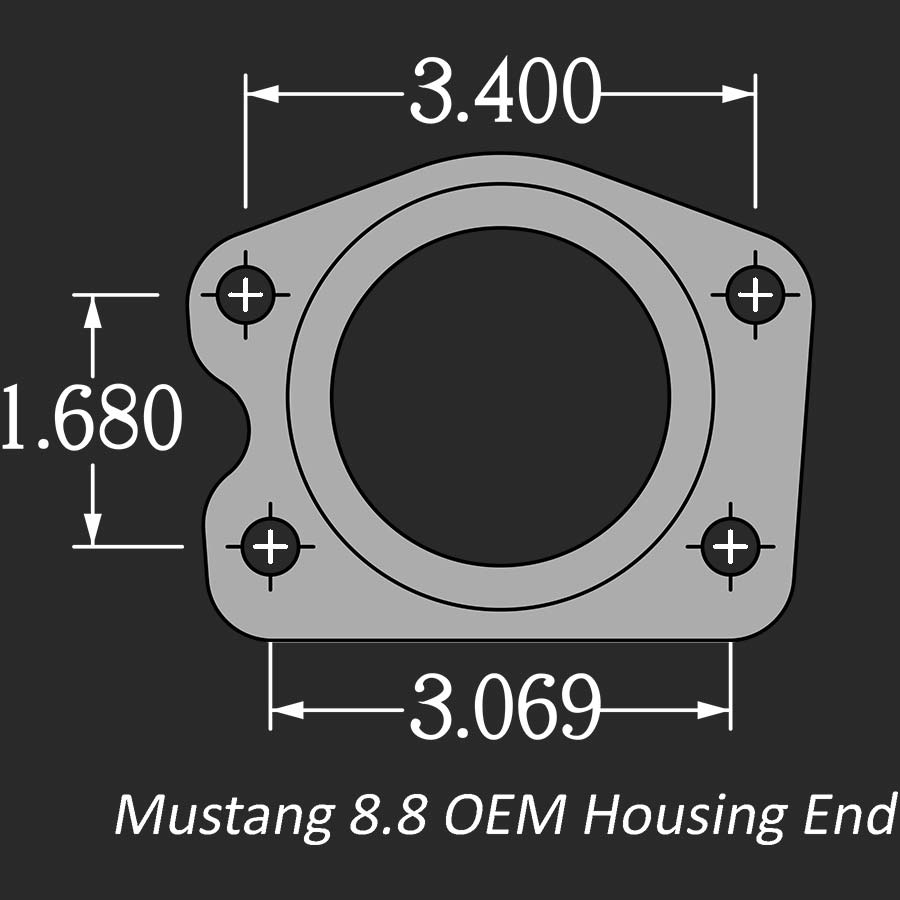

1986-1993 Mustang with OEM Housing Ends

Spool Compatibility
Strange 35 spline axles are a 30° pressure angle
Will not fit Mark Williams 45° pressure angle spools

Spools are Designed For the Track
They are unsafe for street use

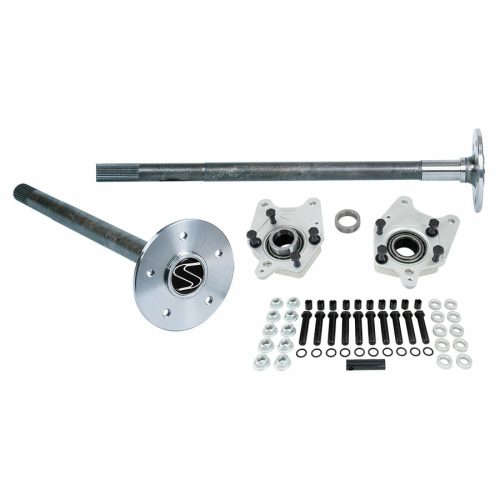

Includes

Alloy AxlesA3500
• Forged from modified 1550 premium steel
• Majority of machining performed before heat treat
• Provides consistent material hardness
• Induction hardened to Rc 58-62
• Increases torsional strength while remaining ductile
• Finish machined after heat treat to ensure trueness
• Choice of bolt circle
• Forged in the USA
• Designed and machined by Strange Engineering

C-Clip Eliminator KitA1090
• Billet aluminum inner and outer halves
• Tapered bearings ensure long bearing life
• Locking rings
• Outer seals
• Gaskets
• Grade 8 studs with locking nuts & washers

Choice of Press-in or Screw-in Wheel Studs
• Press-in 1/2″-20 studs – A3121
• Screw-in 1/2″-20 studs 2″ long * – A1025
• Screw-in 1/2″-20 studs 3″ long * – A1026

* Length measured from underneath the hex of the stud

Optional Labor
Install eliminator kit – A1008C
Install eliminator kit & studs – A1008SC


Description

1986-1993 Ford Mustang 8.8 35 spline Alloy axles, eliminator kit & wheel studs
