Pro Race Axle Package
40 Spline Gun Drilled Axles
3.150" Axle Bearings, & 5/8" Stud Kit

$689.00 $620.10

Part Number: P1014

Hy-Tuf axles are optimized for Drag Race use only
See our Alloy axle packages for street / track applications

Applications
Dana 60
Ford 9″ (requires 3.250″ or 3.812″ bore case)

3.150″ ID housing ends are necessary for all applications
For use with 3.350″ ID housing ends- See P1015

Gun drilling removes approximately one pound per foot
Five 1″ lightening holes removes additional .4 lbs per axle

This Pro Race Axle Package Includes:

Hy-Tuf Ultra Strength Axles- A2000
– Forged from low carbon, high manganese, high nickel, and high molybdenum steel
– Majority of machining performed before heat treat to provide consistent hardness
– .875″ ID hole bored entire length of axle
– Five 1″ ID lightening holes in axle flange
– Thru hardened to Rc 45-48 to maximize the material’s torsional strength
– Finish machined, including entire shaft, after heat treat to ensure accuracy
– 40 spline with 45º pressure angle
– Black oxide finish to resist corrosion
– Lengths up to 34 7/8″
– Choice of bolt circle
– Forged in the USA
– Designed and machined by Strange Engineering

Sealed Ball Bearings- A1019
– Low friction bearings designed specifically for Drag Racing
– OD grooved for o-ring to eliminate inner axle seal
– Includes o-rings and locking collars

Choice of 5/8″-18 Stud Kit

Bolt Style – See A1027
– 5/8″-18 x 3″ Grade 8 fully threaded bolts
– Thin .200″ hex head provides additional clearance
– Width choice of anti-marring/spacer washers
– Includes threaded sleeves, installation tool & flanged lug nuts

Shank Style – See A1036 / A1037 / A1037MD / A1038 / A1039 / A1041
– 5/8″-18 chrome moly stud available in six different shank lengths
– Width choice of anti-marring/spacer washers
– Includes thin head self locking inner nuts & flanged lug nuts

Options
Install axle bearings……………………………….. See A1008
Ultra Light flange * ………………………………… See A1006

* Removes additional 1.1 lbs per axle

Other Pro Race 40 Spline Axle Packages
Solid………………………….. See P1016
With spool……………. See P2015 / P2017

Description

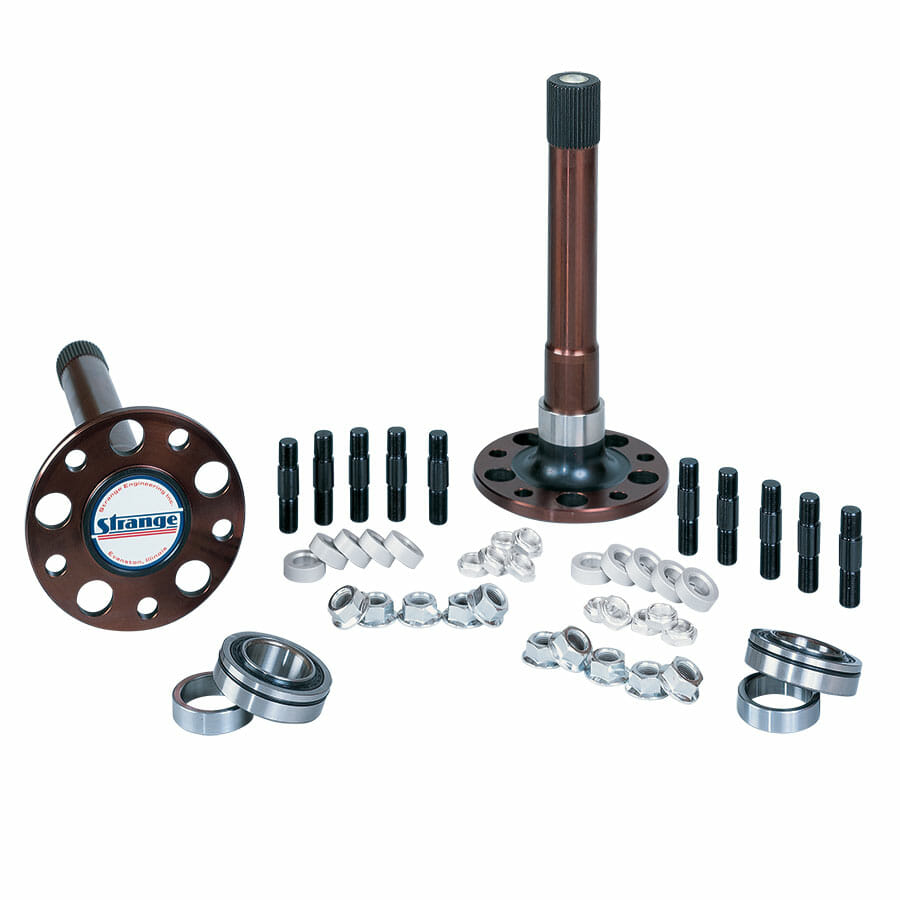

Pro Race 40 spline gun drilled axles with 3.150″ axle bearings, & 5/8″ stud kit

After more than 50-years of providing the ultimate drag racing axle, Strange knows what axles to stock for specific applications. Strange Pro Race Axles are made from a steel alloy that was originally intended for use in military aircraft landing gear. Hy-Tuf is in a class of ultra-strength alloys configured with a low concentration of carbon and high degrees of manganese, nickel, and molybdenum steel. Strange 40 Spline Axles are through-hardened to a tensile strength of 240,000 psi allowing them to retain the necessary degree of ductility required for elite level drag racing.

Strange Pro Race 40-Spline gun-drilled axles are ten-percent lighter and 54-percent stronger than 35-spline solid axles. Gun-drilling is a process of removing the core of the axle shaft and leaving a .875-inch hole. Five 1-inch diameter holes are drilled in the axle flange to further reduce rolling mass. Strange 40-Spline gun-drilled axles are rated for vehicles that weigh 3,500-pounds or more and can post quarter-mile elapsed times of less than 7-seconds.

When we developed our 40 spline axles, the bearing surface OD was made to a giant 1.7735”. By using a special stainless steel ring, we were able to accomplish three important goals. Increase the radius of the axle bearing shoulder, drastically reduce stress concentrations, minimize the distance from the bearing shoulder to the outside of the axle flange, and set axle offset to match the brake kit.

Strange offers the choice of two types of 5/8” stud kits. Our traditional A1027 stud kit features premium bolts & adjustable .875” long sleeves. This the lightest stud kit. In addition, we offer five lengths of chrome moly stud kits. Ensure dimension “A” is able to fully engage into your wheel. This needs to be slightly greater than the combined thickness of the disc brake hat or drum and the thickness of the wheel.



Additional information

Weight 34.60 lbs
