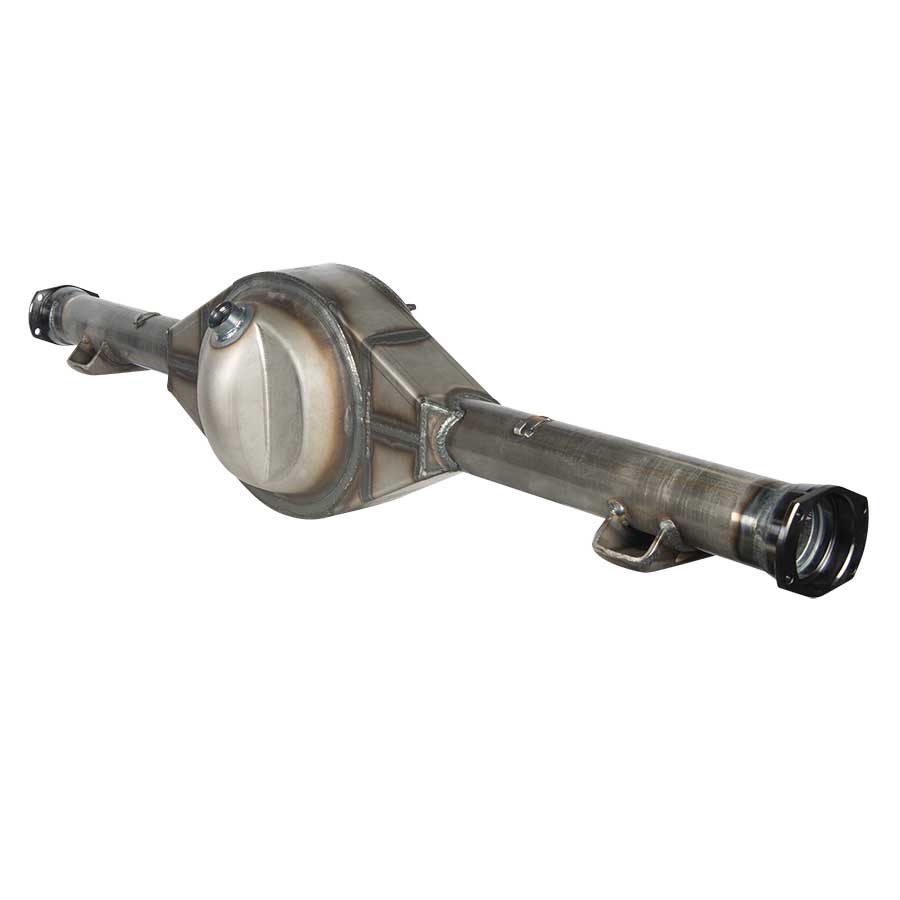

Strange HD 9" Ford Housing For Leaf Spring Applications Includes Mounts, Ends, Fill, Drain, & Vent

$895.00

Part Number: HF9LE

Application
Bolt-in housing for factory leaf spring vehicles
Custom widths available at no additional charge

Description
Strange HD Ford 9″ Housing
Choice of leaf spring mounts & housing ends

Information Required
Type of leaf spring mounts
Housing ends
Housing width
Pinion offset

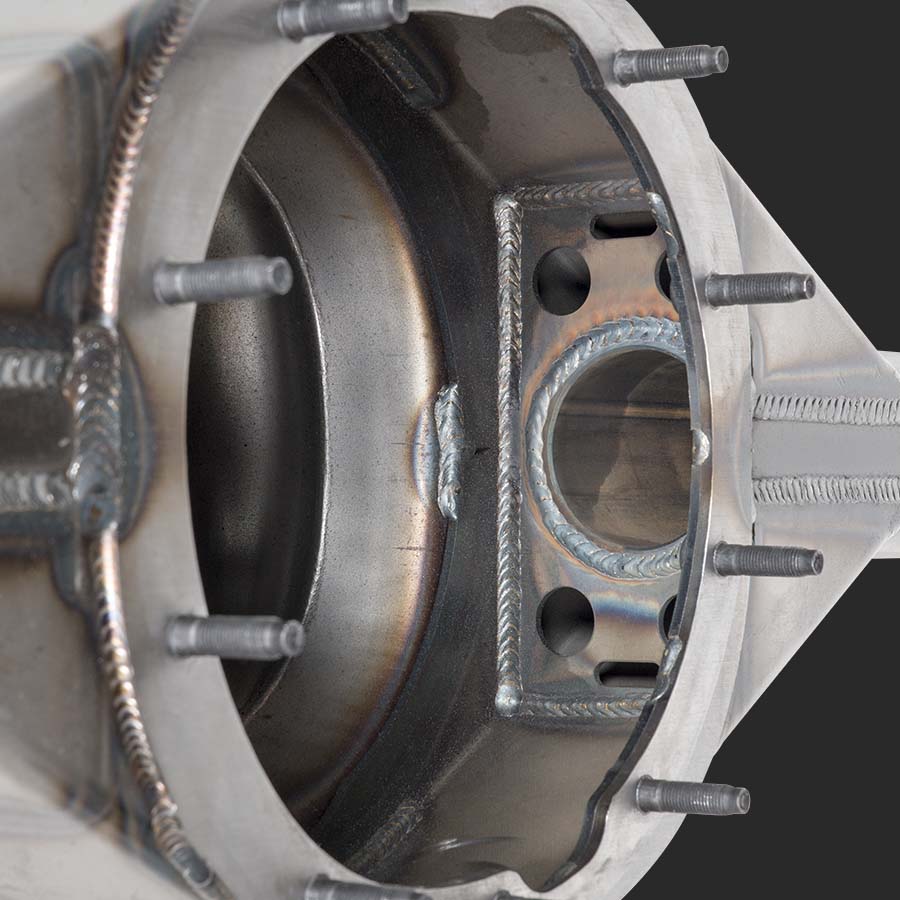

Center Housing – H1110
• Constructed from .141″ mild steel
• Heavy duty .282″ thick face plate
• Internal gussets provide rigidity and support axle tubes
• Slots allow exceptional weld contact of housing to tubes
• Extended cover provides clearance for 9″ & 9 1/2″ gear sets

Fill & Drain plugs – H1116 / H1117D
• Facilitate fluid changes
• Allows for inspection of ring gear

Housing Tubing – H1139
• DOM 1026 steel
• 3″ OD
• .250″ wall thickness

Vent – H1112B
• Prevents build-up of internal pressure
• Ensures sealing integrity

Leaf Spring Mounts
• Applications for Ford, GM, and Mopar

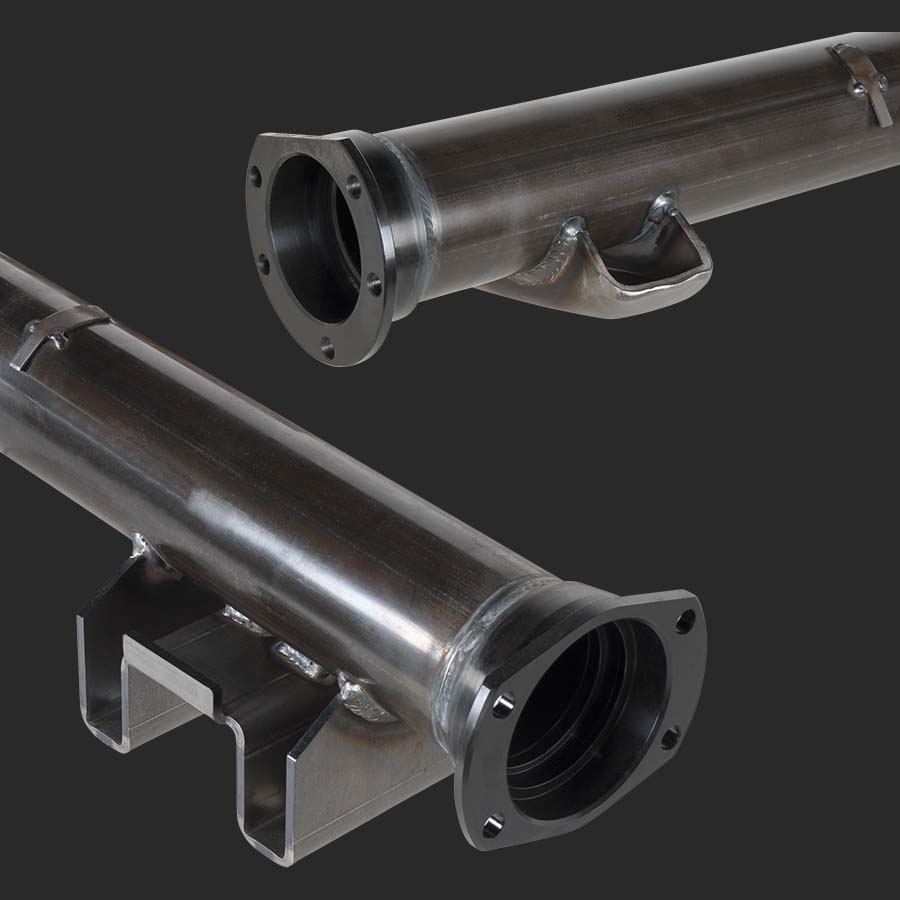

Choice of Housing Ends
Big Ford……………… H1135
Late Big Ford……… H1137
Small Ford………….. H1134
Ford 8.8″…………….. H1138
GM……………………… H1143
Olds……………………. H1132
Mopar………….. H1133 / H1147
Symmetrical…. H1131 / H1136

Professionally Welded
• Jig welded to ensure proper alignment
• Tubes internally & externally welded to housing
• Provides maximum support & rigidity

Related Components
Lube Locker® gasket… H1111S

Axle Packages
Alloy……………………. P3102 / P3104
Pro Race……………… P1007 / P1008

See Our Full Line of Center Sections
Available for Drag Race Only, Street / Track, and Performance Street Vehicles

This product is only available from an Authorized Strange Dealer or Factory Direct Call - 800-646-6718 or Email Us

Description

Strange Ford 9 inch Rear End For Leaf Spring Applications.

Strange Engineering has designed improvements to the Ford 9 inch rear ends for the automotive industry. One such application is the Strange 9 inch rear end for leaf spring applications that includes mounts, ends, fill, drain, & vent.

The Strange 9 inch housing is a semi-floating, drop-out axle. Because of its strength you will see these 9 inch rear ends in just about every make of car, not just Fords.

Strange has increased the strength of the Ford 9 inch in several different ways.
This 9 inch Rear End has internal gussets provide rigidity and support axle tubes.
Slots allow exceptional weld contact of housing to tubes. Extended cover allows clearance for 9″ and 9 1/2″ gear sets

The Ford 9 inch housing has a vast amount of ford 9 inch gear ratios available. This combined with easy assembly makes it popular for fine tuning your rear gear for any particular need. Strange Engineering is the most recognized name in the aftermarket industry when it comes to Ford 9 inch rears. From high performance street cars to Pro Mod, Strange Ford 9 inch housings are relied on by more racers than all other manufacturers combined.

Popular Ford, Mopar, and GM applications.

You may also like…

  • PRF135-S-Series Nodular Iron Case Assembly  Daytona Pinion Support with Spool  Standard Gear & 1350 Series Yoke

    S-Series Nodular Iron Case Assembly Daytona Pinion Support with Spool Standard Gear & 1350 Series Yoke

    PN : PRF135
    $1,319.00
    Select options
  • PRF115-Pro Series Nodular Iron Case Assembly  Aluminum Support with Lightweight Steel Spool  28 Spline Pro Gear & Chrome Moly Yoke

    Pro Series Nodular Iron Case Assembly Aluminum Support with Lightweight Steel Spool Standard Gear & Chrome Moly Yoke

    PN : PRF105
    $1,465.00
    Select options
  • PRF120-Pro Series Nodular Iron Case Assembly  Daytona Pinion Support with Differential  Standard Gear & 1350 Series Yoke

    Pro Series Nodular Iron Case Assembly Daytona Pinion Support with Differential Standard Gear & 1350 Series Yoke

    PN : PRF120
    $1,595.00
    Select options

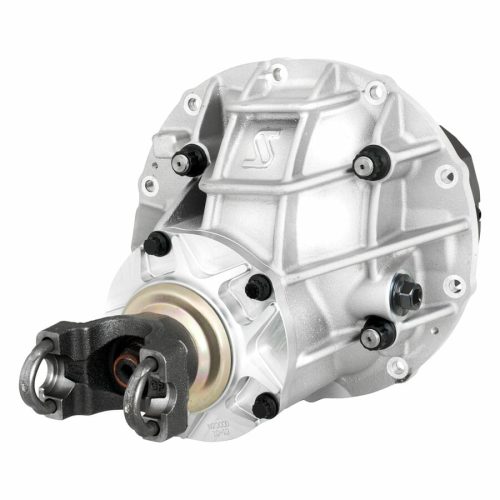

  • PRF180-HD Pro Aluminum Case Assembly  Aluminum Support with Differential  Standard Gear & 1350 Series Yoke
