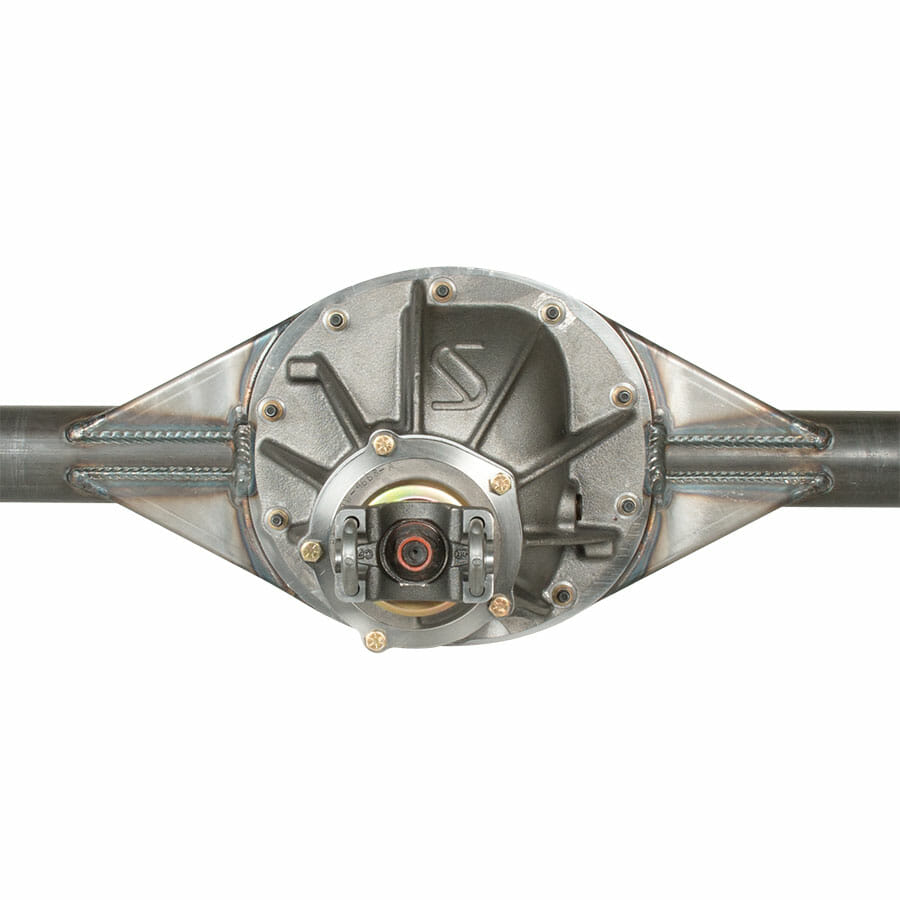

Complete Ford 9" Rear End Assembly - SAMPLE ONLY
Includes Iron Center Section With Differential
Alloy Axles, and Housing With Leaf Spring Mounts

$2,416.00

Optional pinion support is not included in this price

Description
Street rear end assembly

THIS IS PURELY AN EXAMPLE AS THERE ARE MANY POSSIBLE COMBINATIONS

For any complete Ford 9″ rear end
It is a selection of housing, axle package, and center section
Ordered as a complete, everything will be assembled

Ford 9″ Housing With Leaf Spring Mounts – HF9LE
Choice of width, pinion offset, housing ends, and leaf spring mounts

Alloy Axle Package – P3104
31 spline axles, bearings, retainer plates, and wheel studs

S-Series Iron Center Section – PRF130
Clutch style posi unit with choice of gear ratio

Professionally welded and assembled
Includes posi additive if necessary
Crated at no additional charge



Related Components
Drum brake kit… B1606
Disc brake kit … B2709WC

Note
Labor to install brake kit is $25

This product is only available from an Authorized Strange Dealer or Factory Direct Call - 800-646-7618 or Email Us

Description

Strange Ford 9 inch Rear End Complete with Iron Center Section, Differential Alloy Axles, and Leaf Spring Mounts

Strange Engineering has designed improvements to the Ford 9 inch rear ends for the automotive industry. One such application is the Strange 9 inch rear end for Leafspring Applications that includes mounts, ends, fill, drain, & vent.

Strange has increased the strength of the Ford 9 inch in several different ways. The Strange 9 inch housing is a semi-floating, drop-out axle. Because of its strength you will see these 9 inch rear ends in just about every make of car, not just Fords.

This 9 inch Rear End has internal gussets provide rigidity and support axle tubes.
Slots allow exceptional weld contact of housing to tubes. Extended cover allows clearance for 9″ and 9 1/2″ gear sets

The Ford 9 inch housing has a vast amount of ford 9 inch gear ratios available. This combined with easy assembly makes it popular for fine tuning your rear gear for any particular need. Strange Engineering is the most recognized name in the aftermarket industry when it comes to Ford 9 inch rears. From high performance street cars to Pro Mod, Strange Ford 9 inch housings are relied on by more racers than all other manufacturers combined.

S-Series Nodular Iron Third Member with Differential, and 1350 Series Yoke.
Strange’s radial rib design significantly increases the rigidity of the case Strange Engineering’s own blend of nodular iron contains more bonding additive which increases material strength by 8-10%. Coupled with strategical reinforcements to the pinion support area, tail bearing pocket, and main caps, it exceeds the strength of the factory nodular case.

The 3.062” bore case will fit all differentials and spools from 28 to 33 spline. The 3.250” will fit 35 spline differentials and spools, and 40 spline spools requiring a 3.250” bore case. The pricing allows an individual to purchase a new upscale case at a price of a used and fatigued factory part.

Ford 9 inch Differential
With the package Strange Engineering offers a clutch Style 28 or 31 Spline Differential posi units to suit the your Ford 9 inch rear end.Upgrades available to posi units; Tru-Trac, S-Trac, Lockers, etc.

Popular Ford, Mopar, and GM applications.
