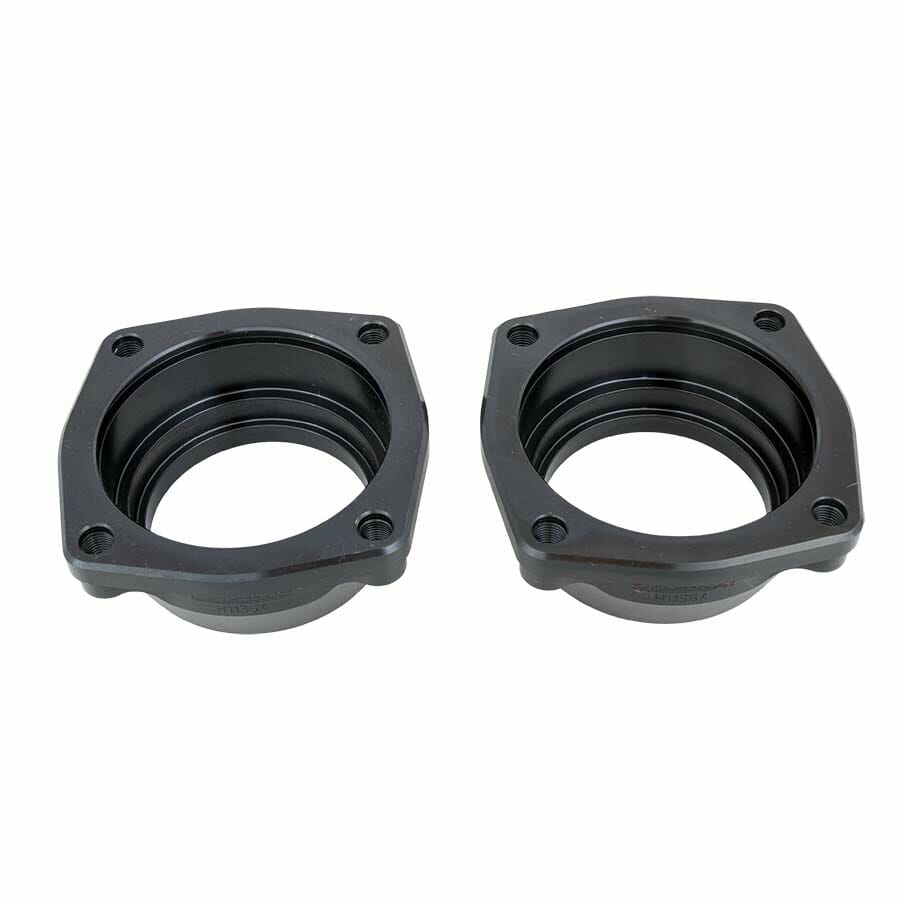

Housing Ends Symmetrical - For 3.350" OD Bearing

$190.00

Part Number: H1136

Description
Strange Housing Ends
Sold as pair

Requires Special Axle Bearings

Features
• 4130 billet chrome moly steel
• Butt weld design
• For 3″ or 3 1/4″ OD tubing
• Black oxide finish
• Designed & machined by Strange
• Material made in the USA

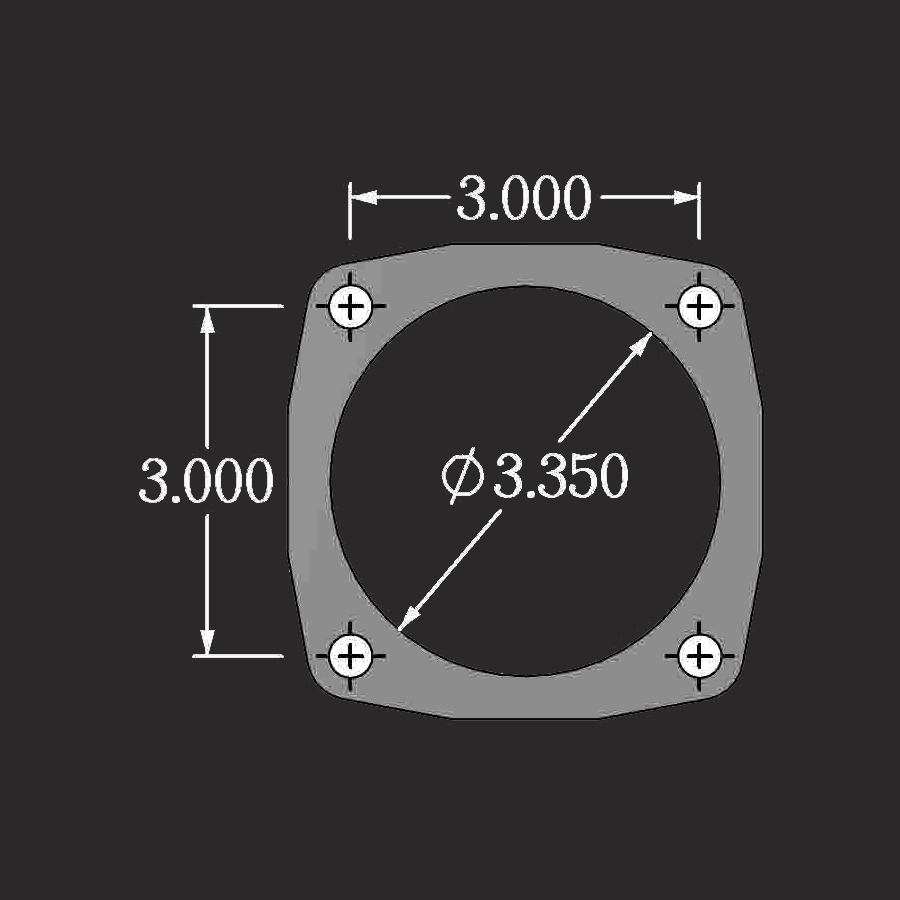

Dimensions
– 1.750″ total width
– 0.343″ wide flange
– 3.350″ ID x 1.403″ deep bearing bore
– 3.250″ OD / 2.750″ ID at tube end
– 3/8″-24 tapped bolt holes
– Grooved for #237 o-ring

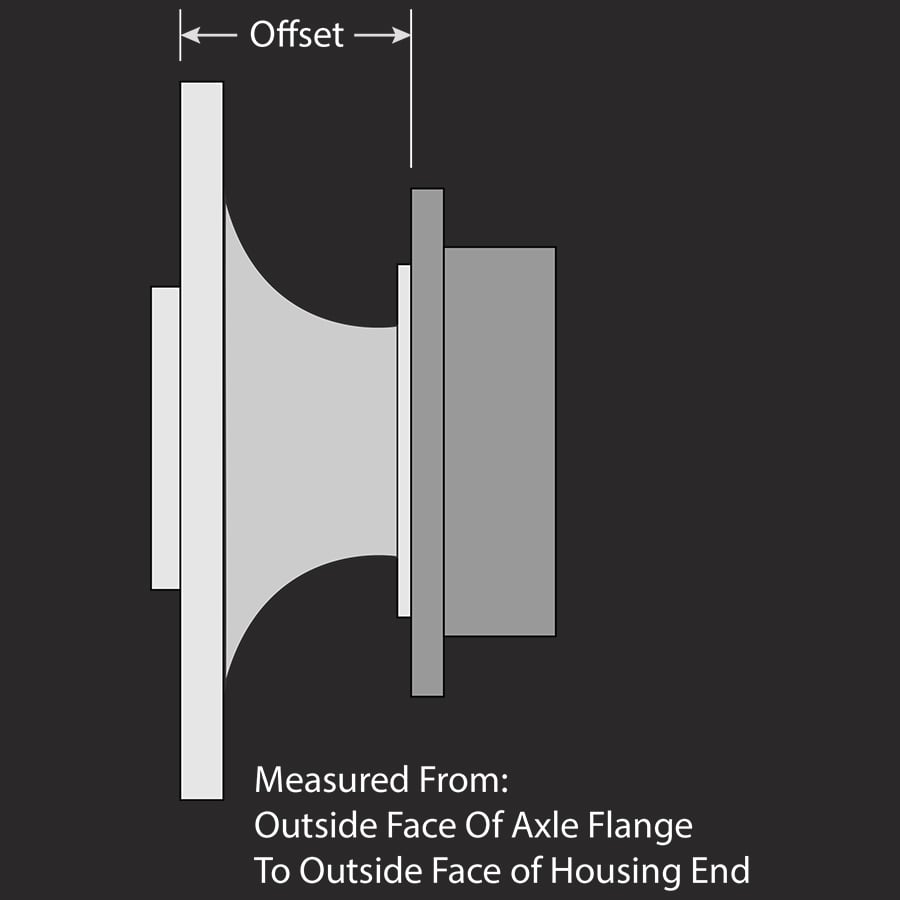

Typical Axle Offset – 2.832″

Related ComponentS
Axle bearing & o-ring…….. A1024

40 Spline Axle Packages
Solid………………… P1017
With spool……….. P2018

Gun drilled………. P1015
With spool……….. P2016

Description

Symmetrical big bore (3.350″ O.D.) housing ends.- pr.
