Double Row Ball Bearing
For 3.350" ID Housing End


Part Number: A1024


Strange 3.350″ Housing Ends
Sold as each

Sealed Double Row Ball Bearing
– 3.350″ OD x 1.772″ ID
– Outer seal & o-ring eliminates inner axle seal
– Includes locking collar & o-ring for housing end

Bearing & locking collar should be pressed on at room temperature

Pre-heating is not recommended as collars can lose holding power
Never “tack-weld” collars as damage to the axles heat treat can occur

Related Component

Housing ends….. H1136


Parts List and Installation Guide pdf File

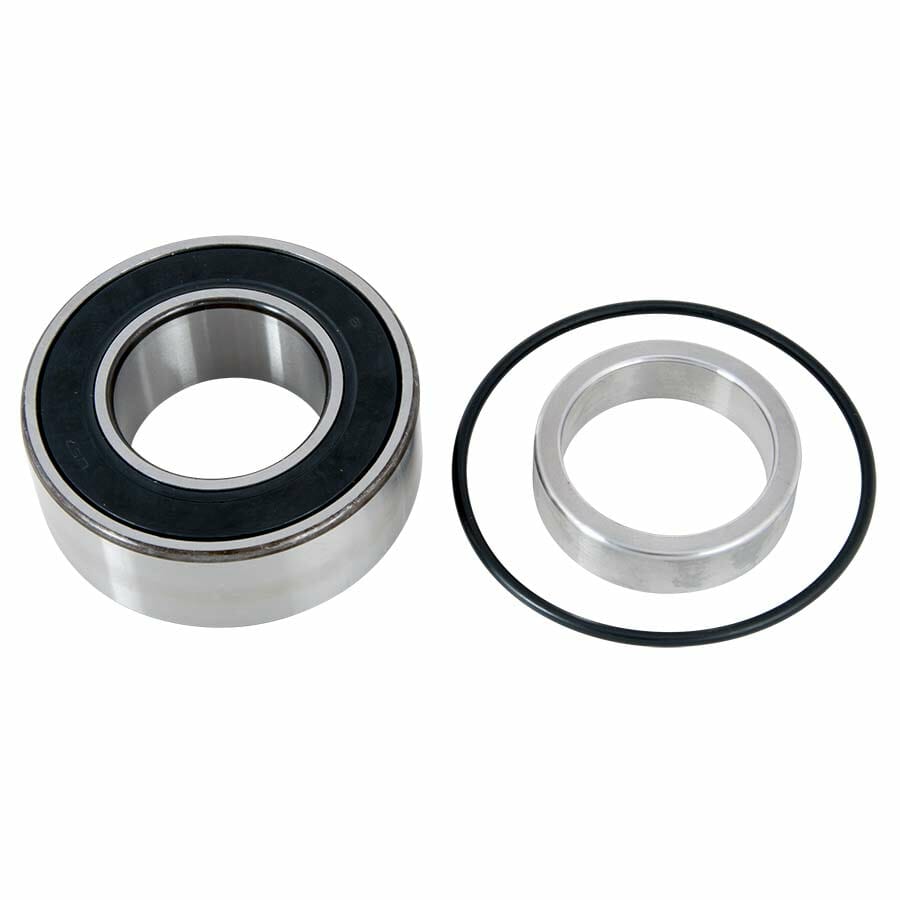

3.350″ x 1.772″ axle bearing, locking collar, & o-ring

Additional information

Weight 1.75 lbs
