Housing Ends                                                                                                     1957-1964 Olds / Pontiac

/, Drag Race, Housings / Components, Ends / T-Bolts / Tubing / Gaskets, Street / Track, Street / Track, Housings / Components, Housing Ends T-Bolts & Gaskets, Ford, Ford, Housings & Components, GM, GM, Housing Ends / T-Bolts / Gaskets/

Housing Ends                                                                                                     1957-1964 Olds / Pontiac

Housing Ends                                                                                                     1957-1964 Olds / Pontiac

$89.00

Part Number: H1132

Description

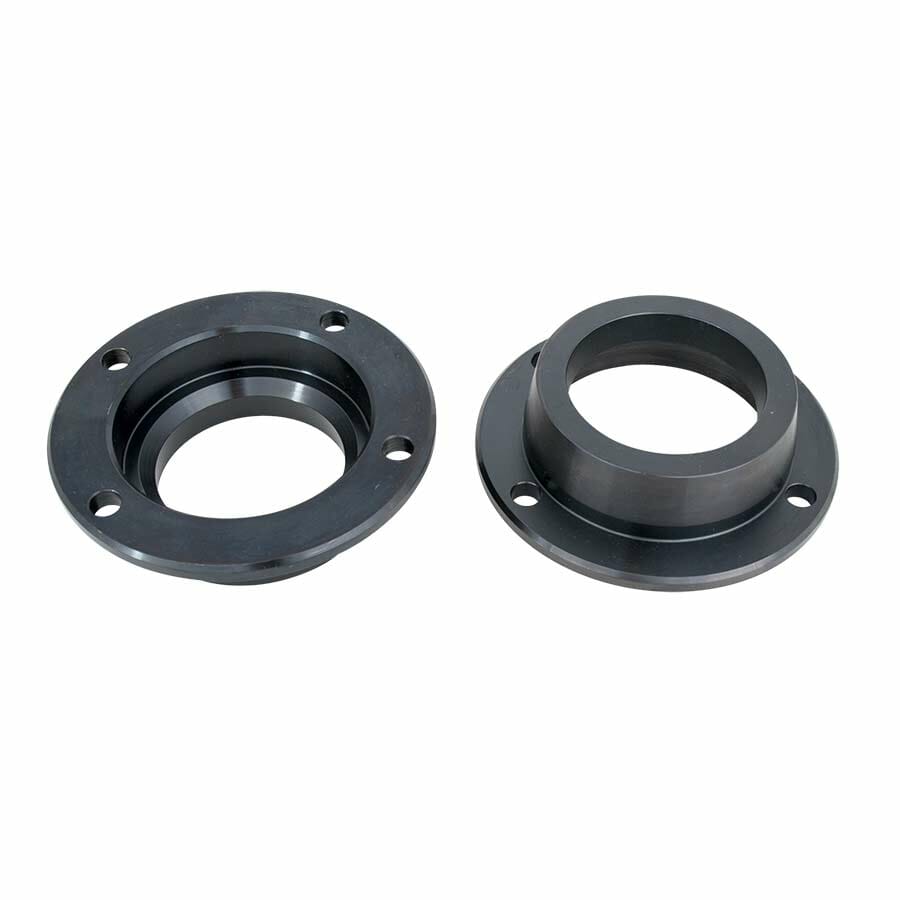

Strange Housing Ends
Sold as pair

Requires O-Ring Style Axle Bearings


Features

• 8620 forged chrome moly steel
• Butt weld design
• For 3″ or 3 1/4″ OD tubing
• Black oxide finish
• Designed & machined by Strange
• Material forged in the USA

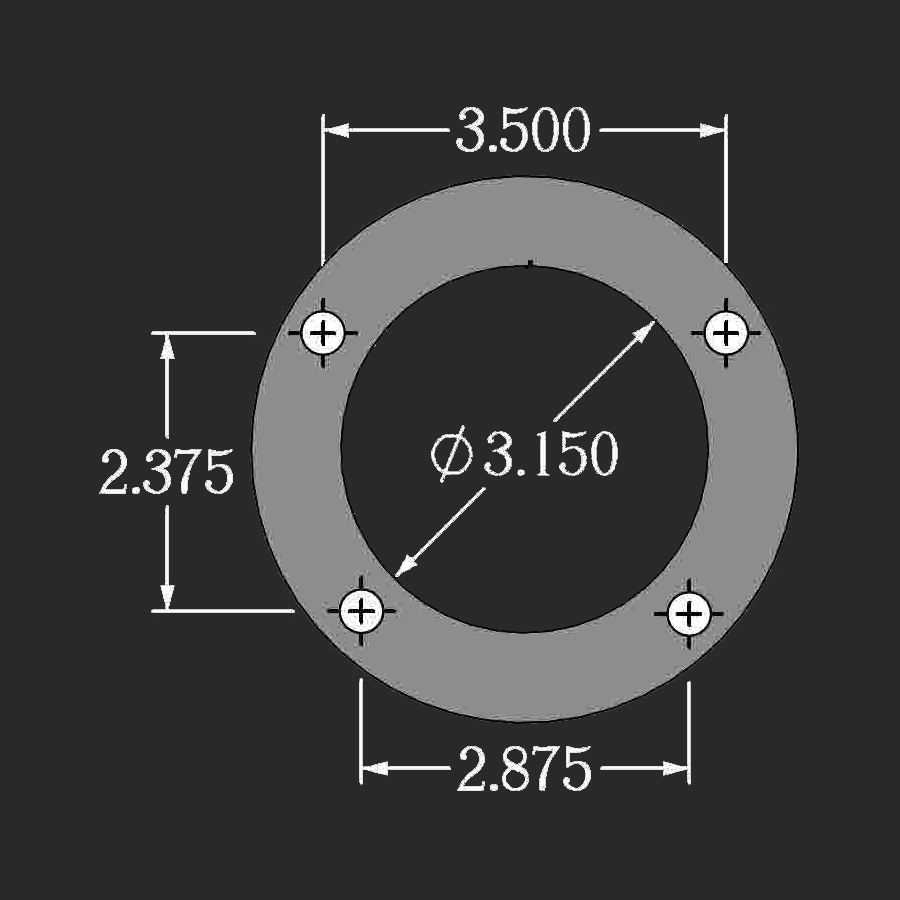

Dimensions

– 1.300″ total width
– 4.773″ OD x .281″ wide flange
– 3.152″ ID x .680″ deep bearing bore
– 3.250″ OD / 2.515″ ID at tube end


Typical Axle Offset – 2.832″


Related Components

Retainer plate………….. A1015

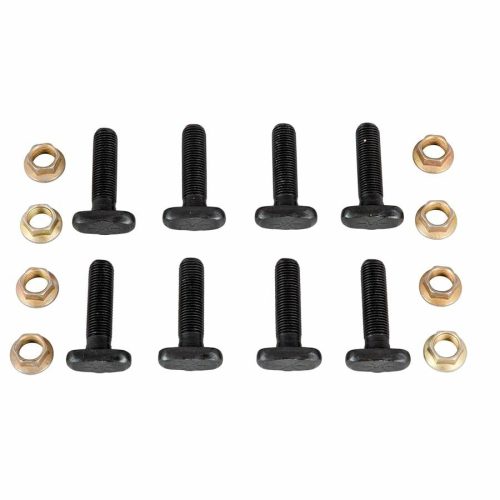

Hsg end stud kit….. B1300HSTKIT

Axle Bearings

1.531″ ID………………….. A1020
1.562″ ID………………….. A1021
1.772″ ID………………….. A1019

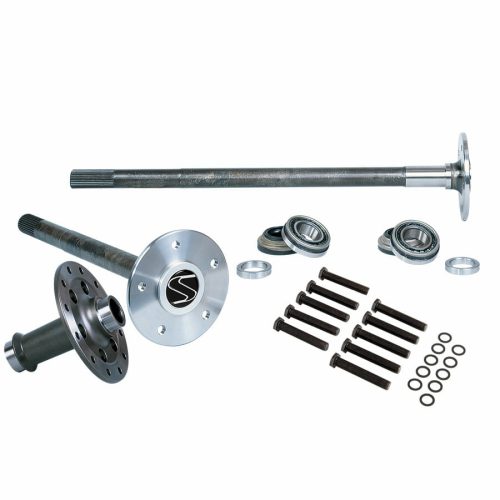

Axle Packages

Alloy…………………………. P3502
With spool……………….. P3502S

Pro Race…………………… P1007
With spool………………… P2007

Pro Race 40………………. P1014
With spool………………… P2015



Description

Olds housing ends- pr.

Additional information

Weight 3.45 lbs
