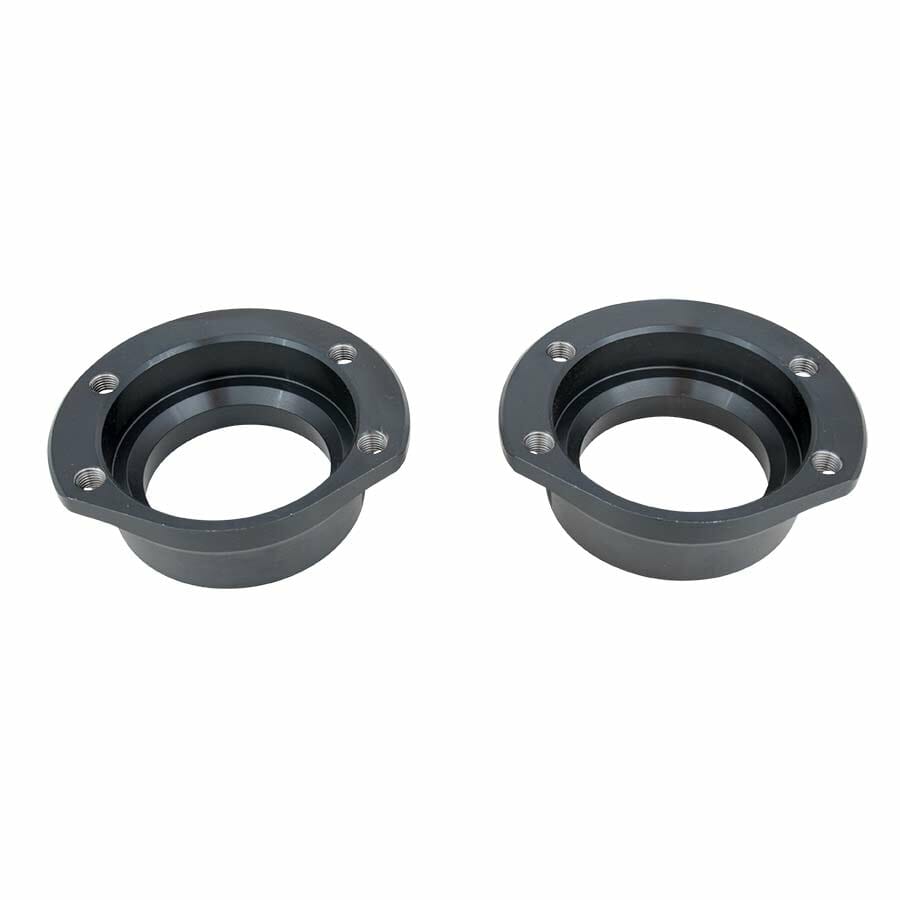

Housing Ends Ford 8.8 - For 3.150" Bearing

$140.00

Part Number: H1138

Application
Housing Using Mustang Brakes
1986-1993 drum brakes

Description
Strange Housing Ends
Sold as pair

Requires
O-ring style ball bearings
or
Outer seal unit bearings

Backing Plate Hole Needs To Be Machined To 3.155″

Features
• 8620 forged chrome moly steel
• Butt weld design
• For 3″ or 3 1/4″ OD tubing
• Black oxide finish
• Designed & machined by Strange
• Material forged in the USA

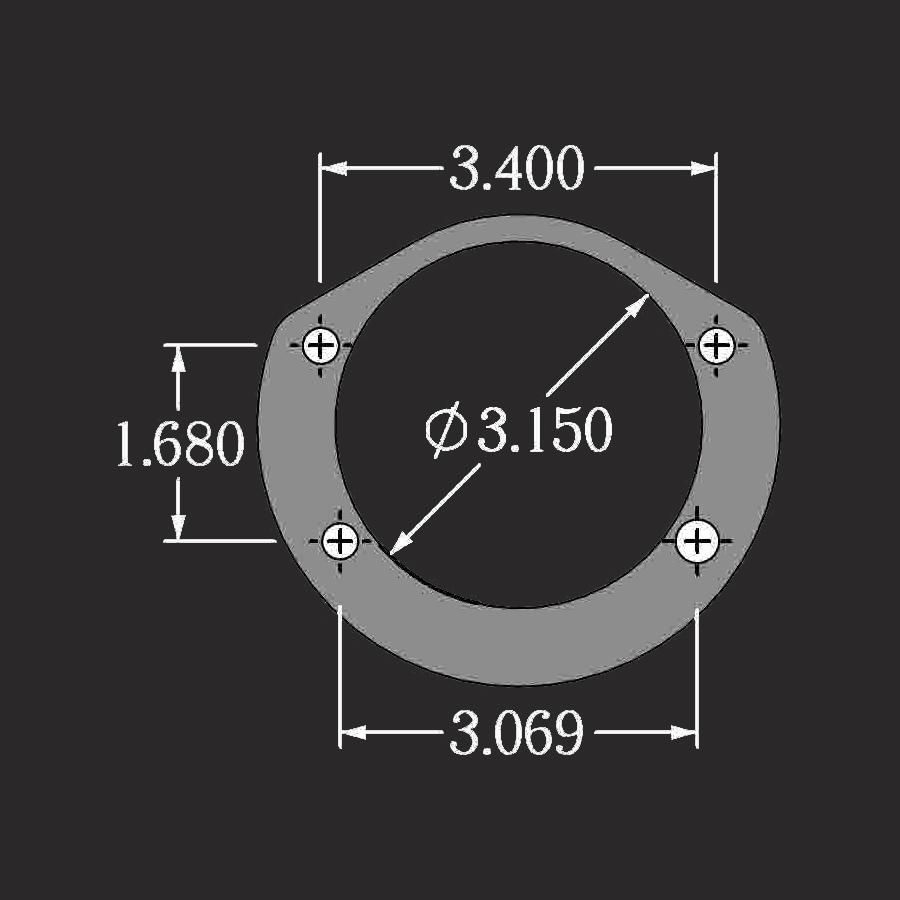

Dimensions
– 1.300″ total width
– 0.281″ wide flange
– 3/8″-24 threaded holes
– 3.152″ ID x .680″ deep bearing bore
– 3.250″ OD / 2.500″ ID at tube end

Typical Axle Offset – 2.500″

Related Components
Retainer plate…………… H1138B

Axle Bearings
1.562″ ID ball…………….. A1021
1.562″ ID tapered……… A1013

Axle Packages
Alloy………………………….. P3504
With spool………………… P3504S

Pro Race……………………. P1008
With spool…………………. P2005

Description

Housing Ends Application

Are you building a new Ford 8.8 rear end or modifying an existing housing that needs to be narrowed? Strange Ford 8.8 housing ends are machined from 8620 forged chrome moly steel and made in the USA. These premium grade housing ends will work with the Ford 8.8 OEM tubes or aftermarket tubes up to 3 1/4″.

Strange’s Ford 8.8 housing ends are black oxide coated and provide an optimal mounting surface for the brake calipers to remain in proper alignment with the axle bearing. These weld-on housing ends have a 3.150 bearing and are sold as a pair. They are designed to be butt welded to the tubes with the proper equipment. An alignment bar is required to properly install any housing ends.
