Housing Ends                                                                                                     1957-1964 Olds / Pontiac – Threaded Holes

/, Drag Race, Housings / Components, Ends / T-Bolts / Tubing / Gaskets, Ford, Ford, Housings & Components, GM, GM, Housing Ends / T-Bolts / Gaskets/

Housing Ends                                                                                                     1957-1964 Olds / Pontiac – Threaded Holes

Housing Ends                                                                                                     1957-1964 Olds / Pontiac – Threaded Holes

$95.00

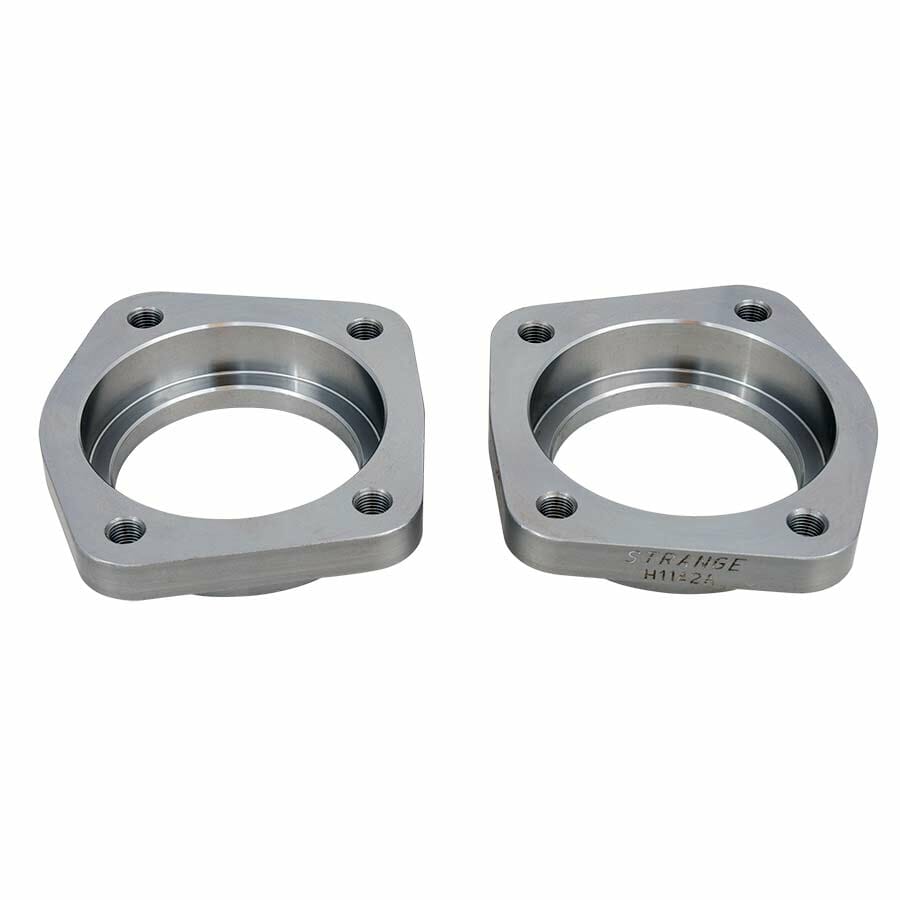

Part Number: H1142

Description

Strange Housing Ends
Sold as pair

Requires O-Ring Style Axle Bearings


Features

• 1026 billet steel
• Butt weld design
• For 3″ or 3 1/4″ OD tubing
• Designed & machined by Strange
• Material made in the USA


Dimensions

– 1.00″ total width
– .500″ wide flange
– 3.152″ ID x .680″ deep bearing bore
– 3.500″ OD / 2.625″ ID at tube end


Typical Axle Offset – 2.832″


Related Components

Retainer plate………….. A1015

Axle Bearings

1.531″ ID………………….. A1020
1.562″ ID………………….. A1021
1.772″ ID………………….. A1019


Axle Packages

Alloy…………………………. P3502
With spool……………….. P3502S

Pro Race…………………… P1007
With spool………………… P2007

Pro Race 40………………. P1014
With spool………………… P2015



Description

Olds (drilled & tapped) housing ends- pr.

Additional information

Weight 3.00 lbs
