Housing Ends                                                                                                     Mopar – Special 3.150″ Bore

/, Drag Race, Housings / Components, Ends / T-Bolts / Tubing / Gaskets, Street / Track, Street / Track, Housings / Components, Housing Ends T-Bolts & Gaskets, Mopar, Mopar, Housings & Components/

Housing Ends                                                                                                     Mopar – Special 3.150″ Bore

Housing Ends                                                                                                     Mopar – Special 3.150″ Bore

$89.00

Part Number: H1147

Description

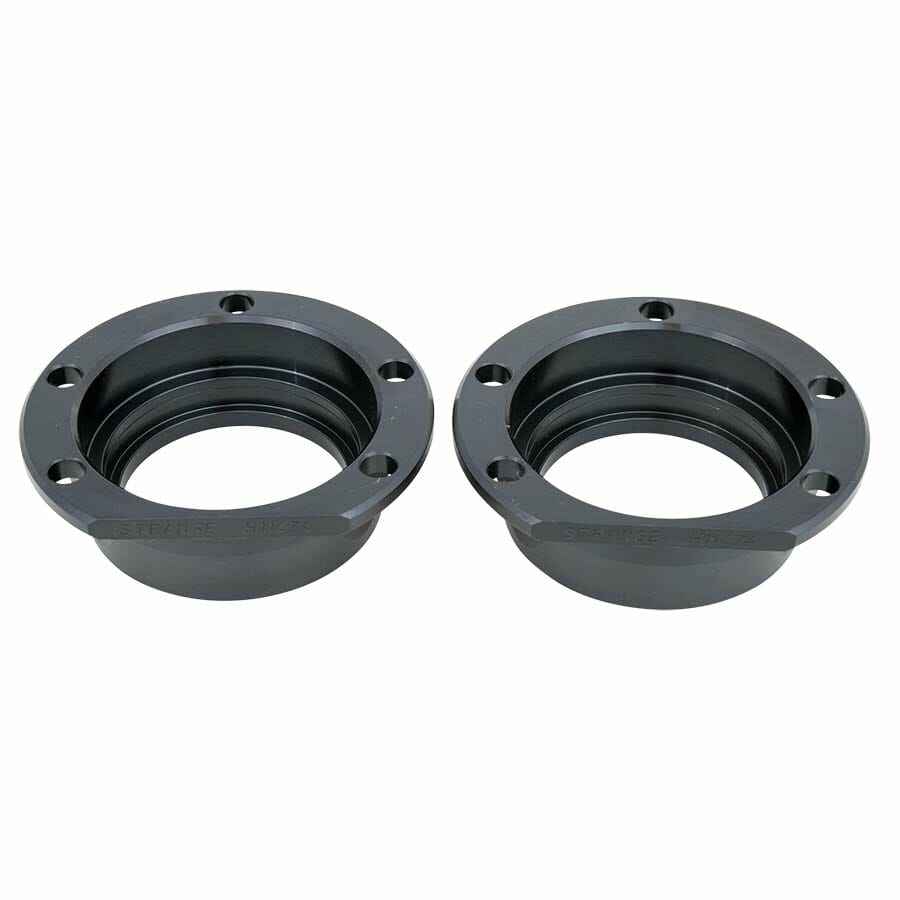

Strange Housing Ends
Sold as pair


Requires

O-ring style ball bearings
or
Outer seal unit bearings

Drum Brake Applications
Backing plate hole needs to be machined to 3.155″


Features

• 8620 forged chrome moly steel
• Butt weld design
• For 3″ or 3 1/4″ OD tubing
• Black oxide finish
• Designed & machined by Strange
• Material forged in the USA


Dimensions

– 1.300″ total width
– 0.281″ wide flange

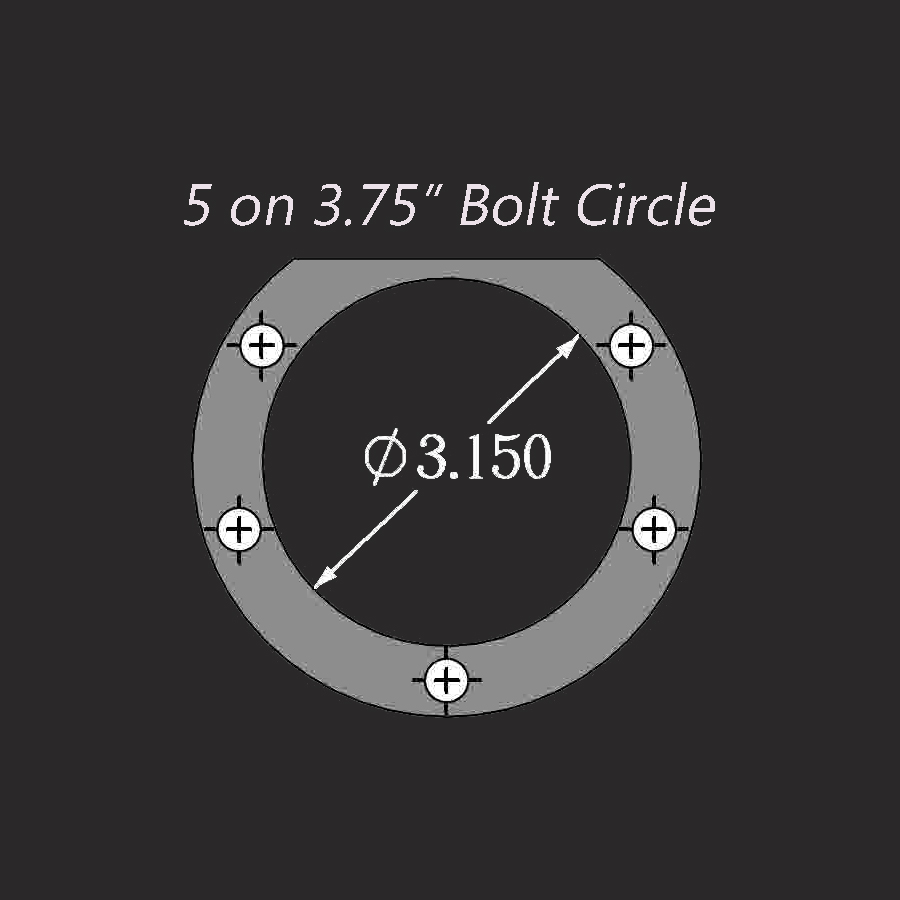

– 3.152″ ID x .680″ deep bearing bore
– 3.250″ OD / 2.515″ ID at tube end


Typical Axle Offset

2.300″ – A-Body Drum
2.600″ – B-Body Drum
2.663″ – Strange Disc


Related Components

Retainer plate…………. H1147B
Hsg end stud kit….. H1133STKIT

Axle Bearings

1.531″ ID………………….. A1020
1.562″ ID ball……………. A1021
1.562″ ID tapered…….. A1013
1.772″ ID………………….. A1019


Axle Packages

Alloy…………………………. P3502
With spool……………….. P3502S

Pro Race…………………… P1007
With spool………………… P2007

Pro Race 40………………. P1014
With spool………………… P2015



Description

Mopar housing ends / 3.150″ bore / Special

Additional information

Weight 3.5 lbs
