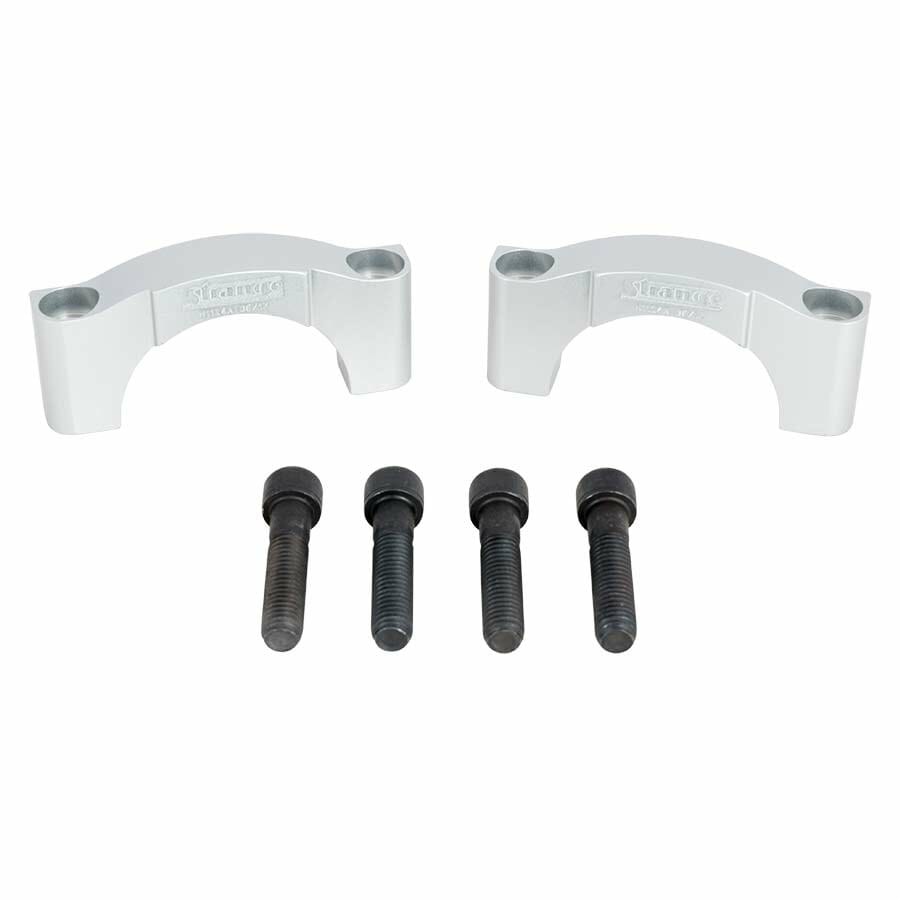

Ford 8.8 Aluminum Main Caps
Machining Required

$120.00

Part Number: H1124


Application
Ford 8.8 Housings

Replaces thin cast iron main caps
Cast iron caps can flex, crack, & break

Billet aluminum is much more ductile
Increased flexibility make it much less prone to breakage
Thicker material further increases overall strength

Aluminum Caps
• 2024-T351 billet aluminum
• Strong & lightweight
• Material is easy to machine
• Clear anodized
• Designed & machined by Strange
• Aluminum made in USA

SHCS Cap Bolts
• Ensures secure cap retention
• 1/2″-13 x 2.250″ to suit casting & cap height

Installation Procedure
Install caps in housing
Check and record bore sizes
Compare to included chart
Mark each cap with amount to be removed
Mill required material from the feet of each cap
Reinstall and torque to specifications

Related
Installation kit – R5231
LPW aluminum cover – R5233 / R5234


This product is only available from an Authorized Strange Dealer or Factory Direct Call - 800-646-6718 or Email Us

Description

Ford 8.8″ billet alum. main caps with bolts- pr. (requires machining)

Parts List and Installation Guide pdf File

You may also like…

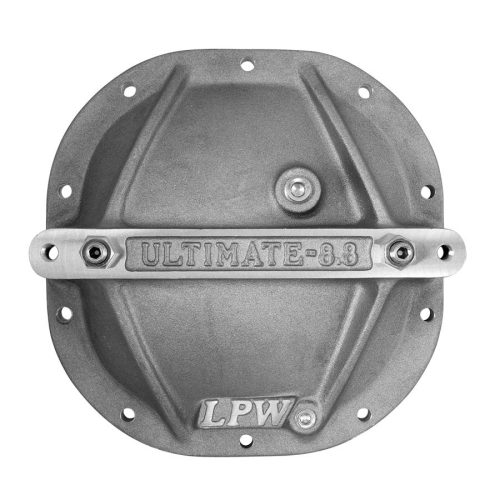

  • R5234-LPW Ultimate Support Cover  For 86-04 Mustang 8.8 - Accepts Brace Kit

    LPW Ultimate Support Cover For 86-04 Mustang 8.8 – Accepts Brace Kit

    PN : R5234
    $215.00
    Read more
  • R5209-LPW Axle Tube Brace Kit  Fits LPW Ultimate Covers  For GM 10 Bolt, 12 Bolt, & '86-'04  Ford Mustang 8.8

    LPW Axle Tube Brace Kit Fits Several LPW Ultimate Covers GM 10 Bolt, 12 Bolt & Ford ’86-’04 Mustang

    PN : R5209
    $150.00
    Add to cart

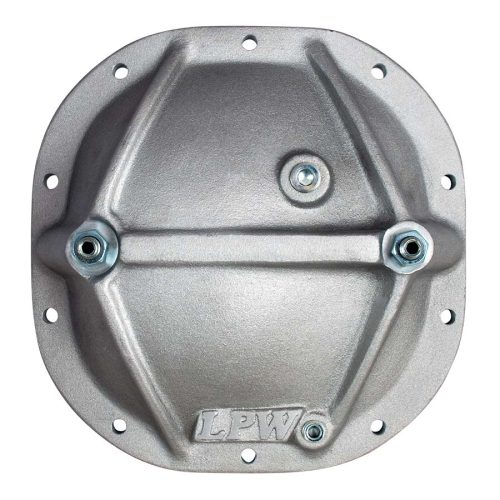

  • R5233-LPW HD Aluminum Support Cover  Fits 86-04 Mustang With 8.8 Rear End
