Strange HD Pro Completion Kit                                                                           For Tapered Bearing Pinion Support                                                         Installing 35 Spline Pinion Gear

/, Drag Race, 9" Center Sections & Parts, 9" Center Sections & Parts, Installation Kits, Ford, Ford, 9" Center Sections & Parts, 9" Center Sections & Parts, Installation Parts & Kits/

Strange HD Pro Completion Kit                                                                           For Tapered Bearing Pinion Support                                                         Installing 35 Spline Pinion Gear

Strange HD Pro Completion Kit                                                                           For Tapered Bearing Pinion Support                                                         Installing 35 Spline Pinion Gear

$105.00

Part Number: R3200LT

Application
For Strange HD Pro case kits – P3200 / P3203 / P3207
Installing 35 spline Pro gear

For 28 Spline Pinion – See R3200ST

Description
Supplies remainder of installation components
Less carrier, gear set, and yoke or coupler

Notes
Support races, o-ring, & tail bearing are not included
These parts are supplied in case kits

If Performing a Gear Change – See R5238 / R5238WR

Features
Timken® bearings & races
Support races are not included

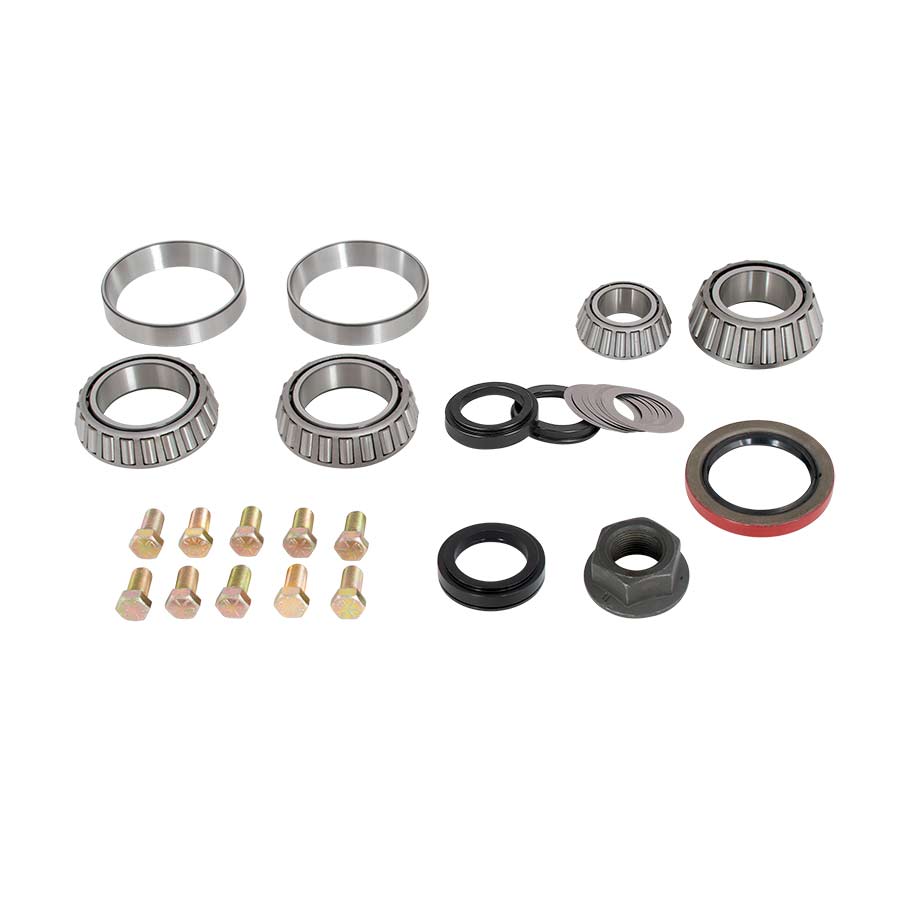

Kit Includes

Front and rear pinion bearings – N1936 / N1938
Side bearings and races – D1588, D1590, or D1592
Pinion seal – N1961
Flanged pinion nut – N1922B
Adjustable pinion preload spacer – N1919
Solid machinable pinion preload spacer – N1924A
1/2″-20 and/or 7/16″-20 ring gear bolts – N1964 / N1965 / D1565RK

Information Required

Case Bore Size
3.062″ / 3.250″ / 3.812″

For Strange Spool
Steel or Aluminum

For Other Spools
The ring gear bolts supplied are designed for a flange thickness of .375″
If your spool exceeds this dimension the ring gear bolts will be too short
Specify if using an aluminum spool


Related Components

Pinion support races… N1931 / N1939
Support o-ring………………. N1958A
Tail bearing……………………. N1943
Fel Pro gasket……………….. H1112G
Fel Pro Teflon® gasket…… H1111
Lube Locker gasket……….. H1111S

Parts List and Installation Guide pdf File

Description

HD Pro completion kit for use with 35 spline tapered brg pinion support

Additional information

Weight 7.35 lbs
