Strange HD Pro Completion Kit                                                                           For Tapered Bearing Pinion Support                                                         Installing 28 Spline Pinion Gear

Strange HD Pro Completion Kit                                                                           For Tapered Bearing Pinion Support                                                         Installing 28 Spline Pinion Gear

$105.00

Part Number: R3200ST

Application
For Strange HD Pro case kits – P3200 / P3203 / P3207
Installing 28 spline pinion gear

For 35 Spline Pinion – See R3200LT

Description
Supplies remainder of installation components
Less carrier, gear set, and yoke or coupler

Notes
Support races, o-ring, & tail bearing are not included
These parts are supplied in case kits

If Performing a Gear Change – See R5237 / R5237WR

Features
Timken® bearings & races

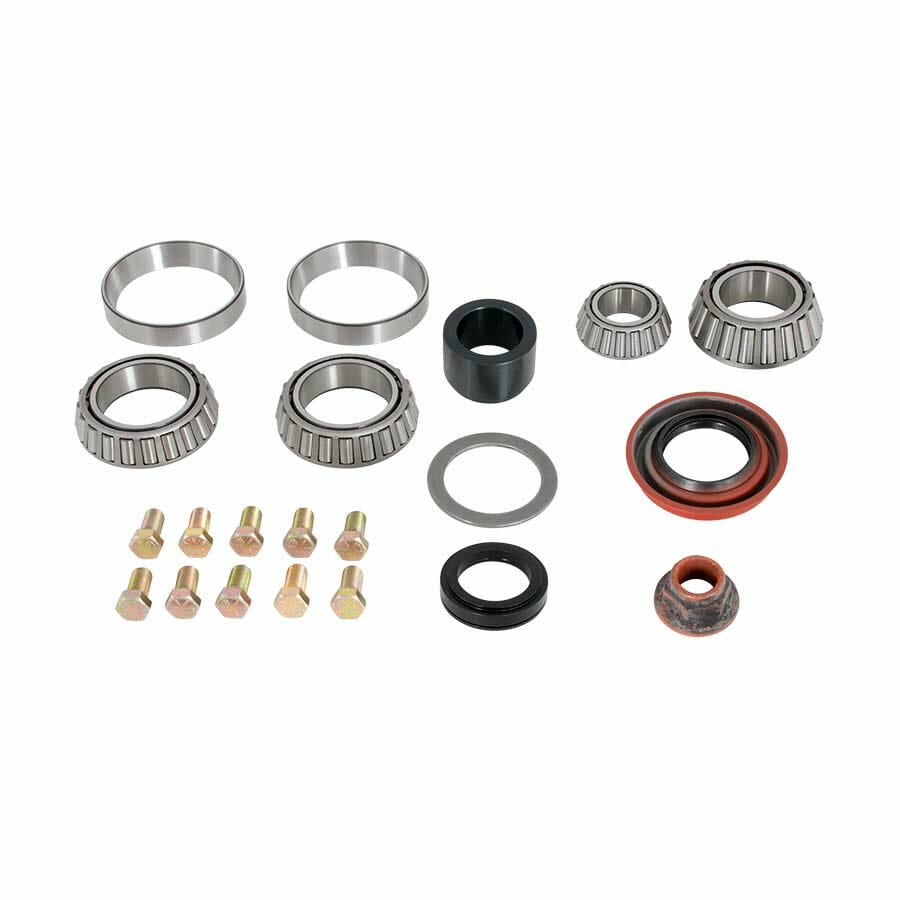

Kit Includes

Front and rear pinion bearings – N1930 / N1938
Side bearings and races – D1588, D1590, or D1592
Pinion seal – N1960
Flanged pinion nut – N1922A
Adjustable pinion preload spacer – N1919
Small pinion adapter sleeve – N1926A
Rear bearing spacer washer – N1926D
7/16″-20 ring gear bolts – N1965, N1967, N1968, or D1565RK

Information Required

Case Bore Size
3.062″ / 3.250″ / 3.812″

Spool or Differential

For Differential
Clutch Type or All Others

For Strange Spool
Steel or Aluminum

For Other Spools
Choose part number of ring gear bolts


Related Components

Pinion support races… N1931 / N1939
Support o-ring………………. N1958A
Tail bearing……………………. N1943
Fel Pro gasket……………….. H1112G
Fel Pro Teflon® gasket…… H1111
Lube Locker gasket……….. H1111S

Parts List and Installation Guide pdf File

Description

HD Pro completion kit for use with 28 spline tapered brg pinion support

Additional information

Weight 6.15 lbs
