Ford 9″ Installation Kit                                                                                           For N1922 or N2322 Tapered Bearing Supports                                                 Using 28 Spline Pinion Gear – Support Races Are Not Included

/, Drag Race, 9" Center Sections & Parts, 9" Center Sections & Parts, Installation Kits, Street / Track, Street / Track, 9" Center Sections & Parts, 9" Center Sections & Parts, Installation Parts / Kits, Ford, Ford, 9" Center Sections & Parts, 9" Center Sections & Parts, Installation Parts & Kits/

Ford 9″ Installation Kit                                                                                           For N1922 or N2322 Tapered Bearing Supports                                                 Using 28 Spline Pinion Gear – Support Races Are Not Included

Ford 9″ Installation Kit                                                                                           For N1922 or N2322 Tapered Bearing Supports                                                 Using 28 Spline Pinion Gear – Support Races Are Not Included

$130.00

Part Number: R5237

Application
Strange tapered bearing pinion supports – N1922 / N2322
Installing 28 spline pinion gear

For 35 Spline Pinion – See R5238

Features Timken® Bearings & Races
Support races and gasket are not included

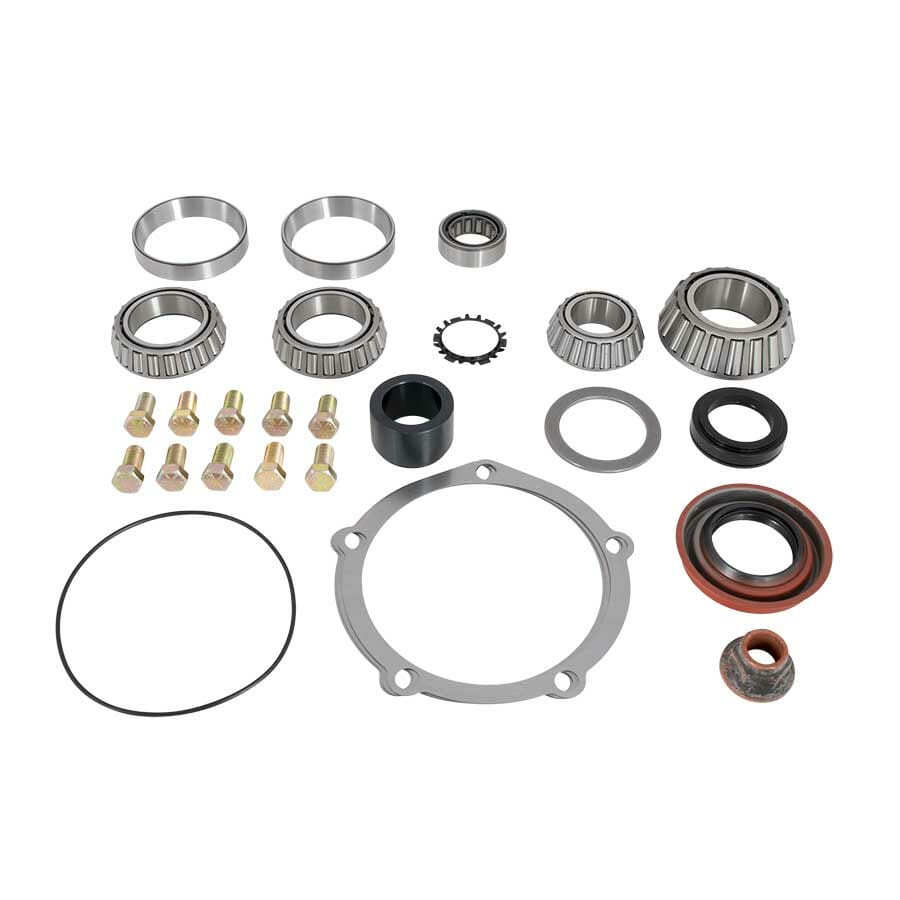

Kit Includes

Front and rear pinion bearings – N1930 / N1938
Side bearings and races – D1586, D1588, D1590, or D1592
Tail bearing – N1940 or N1943
Tail bearing retainer – N1941 (Except HD Pro)
Pinion seal – N1960
Pinion support o-ring – N1958A
Flanged pinion nut – N1922A
Solid adjustable pinion preload spacer – N1919
Small pinion adapter sleeve – N1926A
Rear bearing spacer washer – N1926D
Pinion depth shim kit – N1962
7/16″-20 ring gear bolts – N1965, N1967, N1968, or D1565RK

Information Required

Case Bore Size
2.891″ / 3.062″ / 3.250″ / 3.812″

Specify if using HD Pro Aluminum case

Spool or Differential

For Differential
Clutch Type or All Others

For Strange Spool
Steel or Aluminum

For Other Spools
Choose part number of ring gear bolts


Related Components

Kit with pinion races………….. R5237WR
Fel Pro gasket……………………… H1112G
Fel Pro Teflon® gasket………… H1111
Lube Locker gasket……………… H1111S

Description

Ford 9″ installation kit for Strange N1922 / N2322 supports & 28 spline pinion- No support races

Additional information

Weight 7.55 lbs
