Ford 9″ Installation Kit                                                                                           For N1922 or N2322 Tapered Bearing Supports                                                 Using 35 Spline Pinion Gear – Support Races Are Not Included

Ford 9″ Installation Kit                                                                                           For N1922 or N2322 Tapered Bearing Supports                                                 Using 35 Spline Pinion Gear – Support Races Are Not Included

$133.00

Part Number: R5238

Application
Strange tapered bearing pinion supports – N1922 / N2322
Installing 35 spline pinion gear

For 28 Spline Pinion – See R5237

Features Timken® Bearings & Races
Support races and gasket are not included

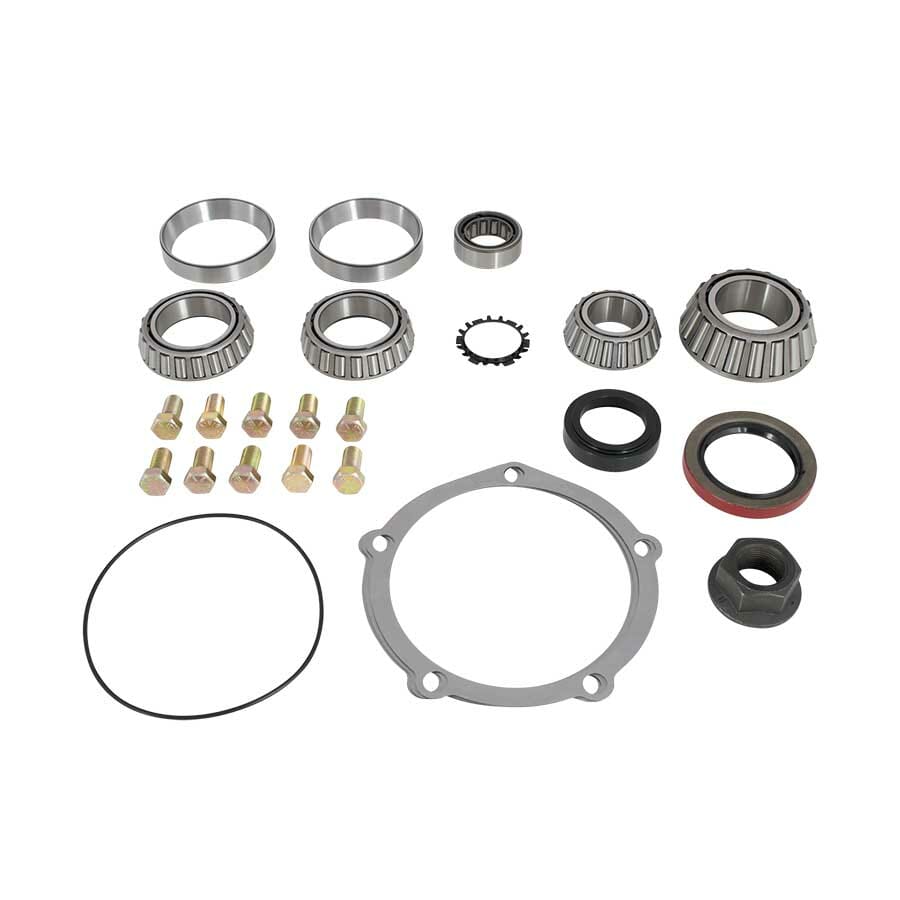

Kit Includes

Front and rear pinion bearings – N1936 / N1938
Side bearings and races – D1586, D1588, D1590, or D1592
Tail bearing – N1940 or N1943
Tail bearing retainer – N1941 (Except HD Pro)
Pinion seal – N1961
Pinion support o-ring – N1958A
Flanged pinion nut – N1922B
Adjustable pinion preload spacer – N1919
Solid machinable pinion preload spacer – N1924A
Pinion depth shim kit – N1962
1/2″-20 and/or 7/16″-20 ring gear bolts – N1964 / N1965 / D1565RK

Information Required

Case Bore Size
2.891″ / 3.062″ / 3.250″ / 3.812″

Specify if using HD Pro Aluminum case

For Strange Spool
Steel or Aluminum

For Other Spools
The ring gear bolts supplied are designed for a flange thickness of .375″
If your spool exceeds this dimension the ring gear bolts will be too short
Specify if using an aluminum spool


Related Components

Kit with pinion races………….. R5238WR
Fel Pro gasket……………………… H1112G
Fel Pro Teflon® gasket………… H1111
Lube Locker gasket……………… H1111S

Description

Ford 9″ installation kit for Strange N1922 / N2322 supports & 35 spline pinion- No support races

Additional information

Weight 8.95 lbs
