Ford 9″ Ring Gear Bolts                                                                                       7/16″ With Washers For Many Aluminum Spools

/, Drag Race, 9" Center Sections & Parts, 9" Center Sections & Parts, Installation Parts/

Ford 9″ Ring Gear Bolts                                                                                       7/16″ With Washers For Many Aluminum Spools

Ford 9″ Ring Gear Bolts                                                                                       7/16″ With Washers For Many Aluminum Spools

$10.00

Part Number: D1565RK

Application
Ford 9″ using aluminum spools – D1512 / D1513 / D1565

Includes

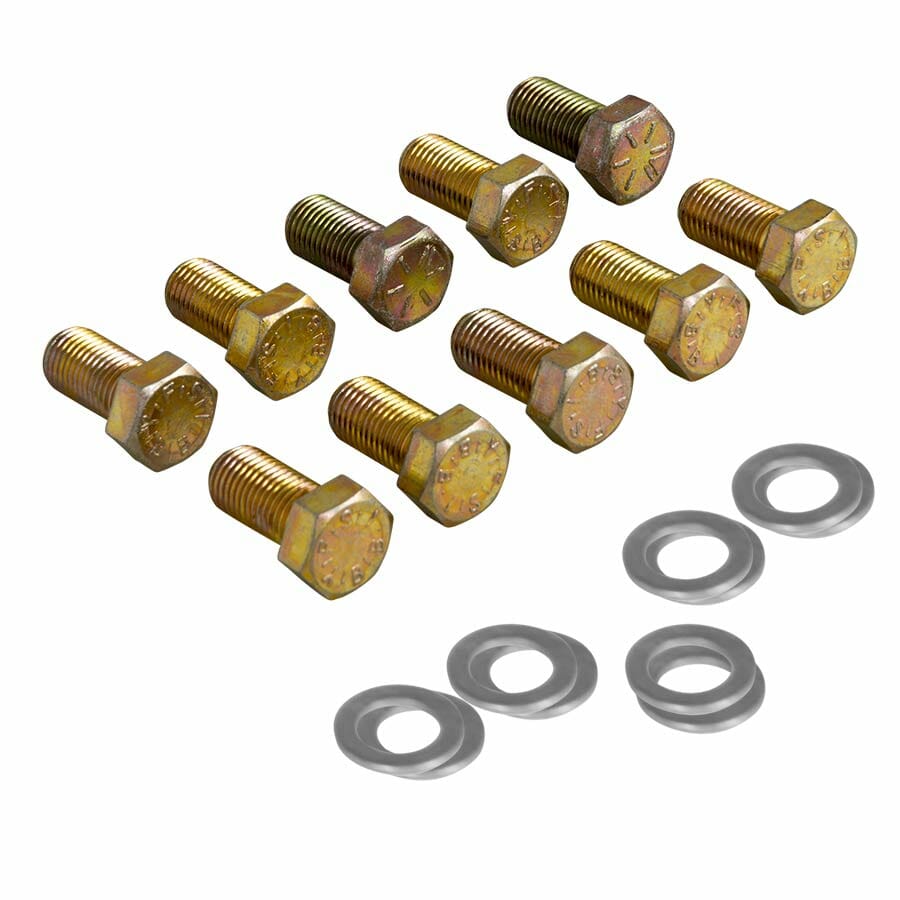

10 bolts & anti-marring washers

Specifications

Bolt
7/16″-20 x 1.00″
Grade 8 hex head
Cadmium plated
5/8″ wrench size

Washer
.750″ OD
.450″ ID
.060″ Thick

Red Locktite® is recommended


For 40 spline HD aluminum spool – See N1973

Description

Ford 9″ 7/16″ Ring Gear Bolts For Many Aluminum Spools

Additional information

Weight .8 lbs
