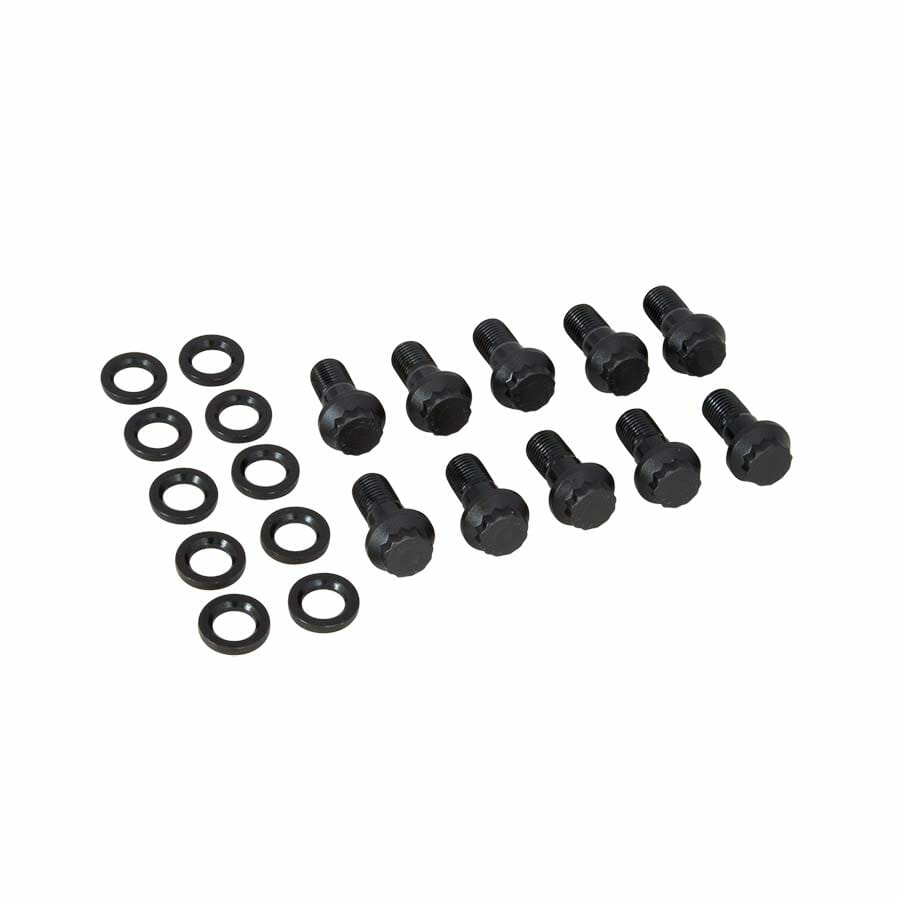

ARP 7/16″ Ring Gear Bolt Kit                                                                               For 9″ Ford 40 Spline HD Aluminum Spool

/, Drag Race, 9" Center Sections & Parts, 9" Center Sections & Parts, Installation Parts/

ARP 7/16″ Ring Gear Bolt Kit                                                                               For 9″ Ford 40 Spline HD Aluminum Spool

ARP 7/16″ Ring Gear Bolt Kit                                                                               For 9″ Ford 40 Spline HD Aluminum Spool

$65.00

Part Number: N1973

Application
Strange 9″ 40 spline aluminum spool – D2004

Note
Can be used with 35 spline aluminum spool – D1565

Includes
10 bolts & washers

Bolt
7/16″-20 x .950″
12 point with flanged head
1/2″ wrench size

Washer
.752″ OD x .442″ ID x .120″ thick
Inner chamfer to suit bolt radius



Other 9″ aluminum spools…….. D1565RK
Strange 9″ steel spools……… N1975 / N1976

Description

ARP 7/16″-20 x .950 ring gear bolts & washers (for D1565 & D2004 spool)

Additional information

Weight .70 lbs
