Strange S-Series 9" Case Nodular Iron - 3.250" Bore

$289.00

Part Number: N2206

Application

Differentials
35 spline

Spools
35 and 40 spline

Accepts OEM and aftermarket Ford 9″ pinion supports

Description

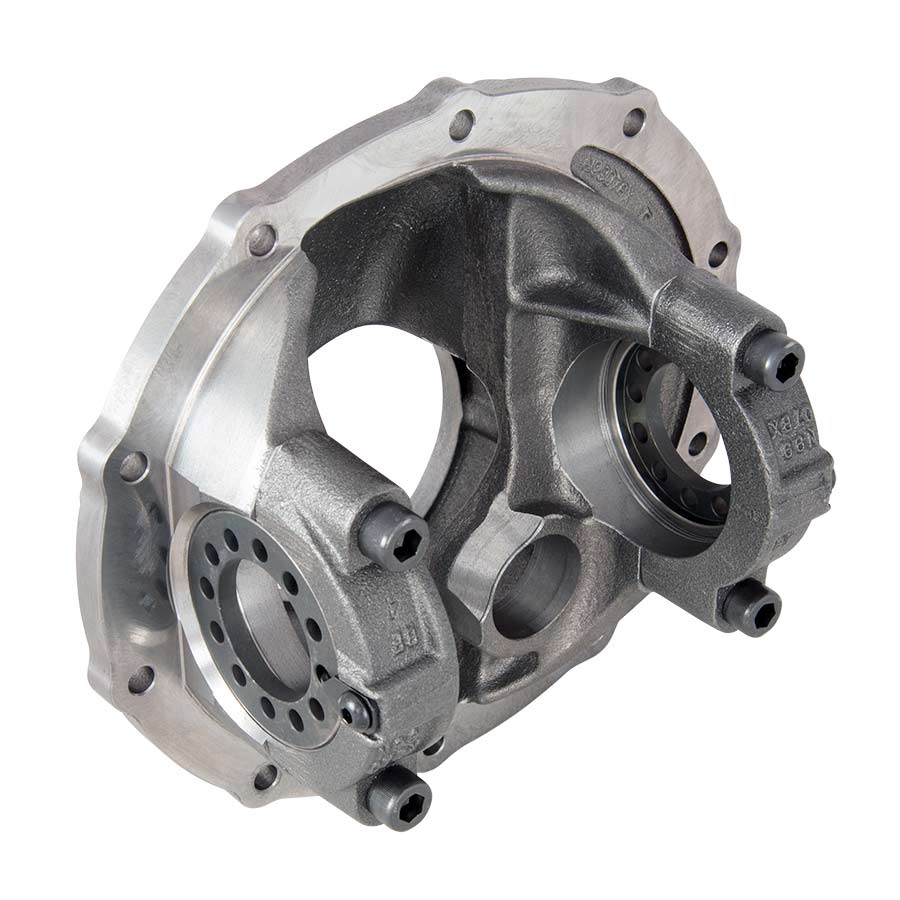

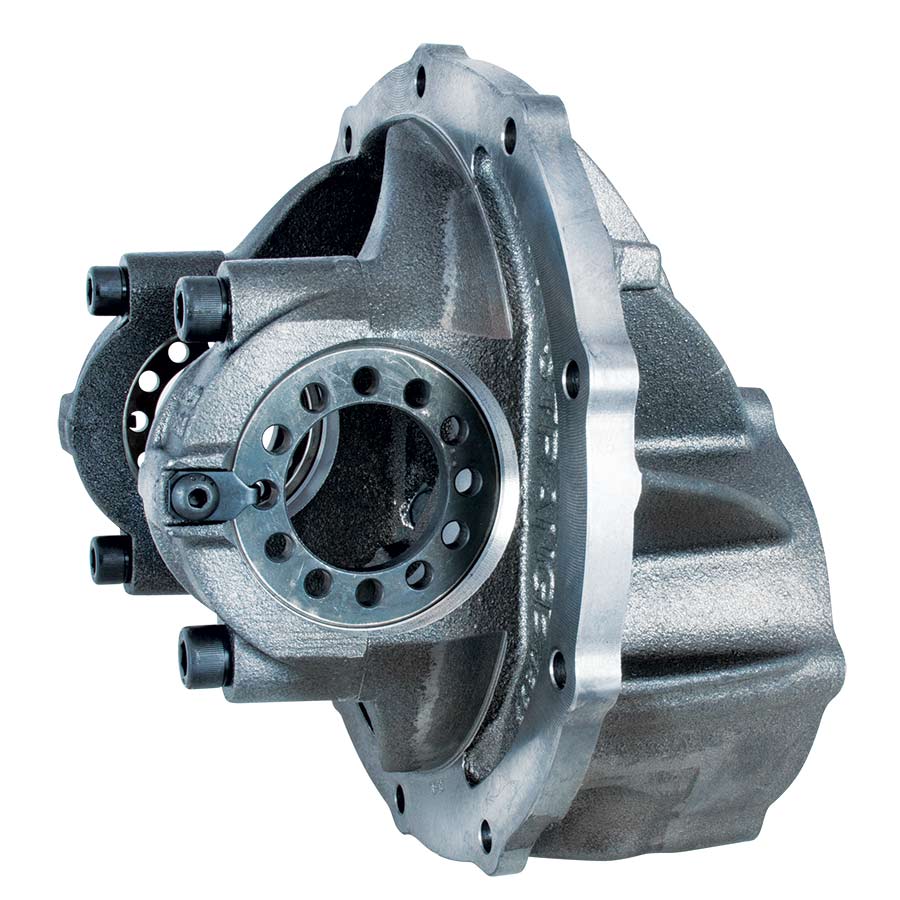

Strange S-Series 9″ Nodular Iron Case

Features

• Fresh design to 9″ nodular case
• 8-10% stronger material than stock nodular iron
• Additional mass in all critical areas
• Heavy duty nodular iron main caps
• Solid adjuster nuts
• Designed & machined by Strange
• Cast in the USA



Related Components

Cases
S-Series 3.062″ bore……… N2205
Pro Series 3.062″ bore….. N1905
Pro Series 3.250″ bore….. N1906

Supports
Iron Daytona…………………. N1914
Strange Aluminum………… N1917

Gaskets
Fel Pro………………………….. H1112G
LubeLocker…………………… H1111S



Description

Strange’s radial rib design significantly increases the rigidity of the case Strange Engineering’s own blend of nodular iron contains more bonding additive which increases material strength by 8-10%. Coupled with strategical reinforcements to the pinion support area, tail bearing pocket, and main caps, it exceeds the strength of the factory nodular case. The 3.062” bore case will fit all differentials and spools from 28 to 33 spline. The 3.250” will fit 35 spline differentials and spools, and 40 spline spools requiring a 3.250” bore case. The pricing allows an individual to purchase a new upscale case at a price of a used and fatigued factory part.

Guidelines and Torque spec
