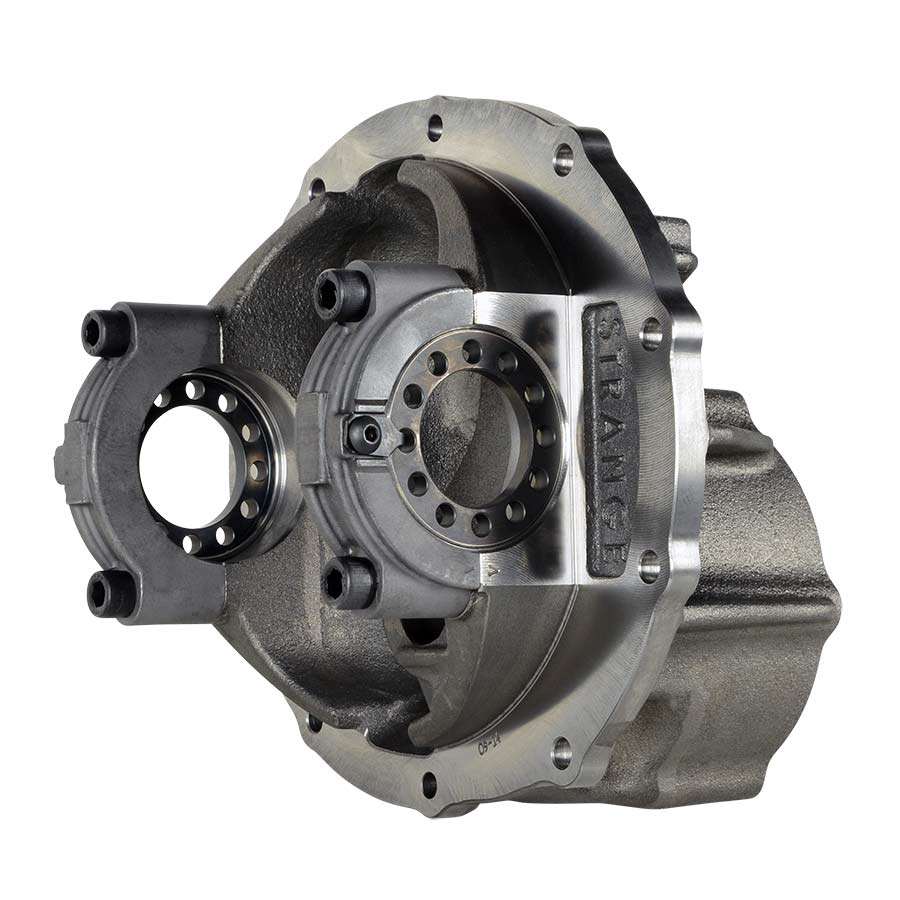

Strange Pro Series Ford 9" Nodular Iron Case
3.062" Bore Size

$369.00

Part Number: N1905


For Heavy / High Horsepower Vehicles
Extremely rigid design minimizes deflection

Pro Iron Case
• 8-10% stronger material than stock nodular iron
• Additional mass in all critical areas
• Chrome moly main caps
• Solid adjuster nuts
• Designed & machined by Strange
• Cast in the USA

3.062″ Bore Size
• 28 and 31 spline differentials
• 28, 31 and 33 spline Strange spools

Accepts OEM and aftermarket Ford 9″ pinion supports

Related
28 spline spool – D1515
31 spline spool – D1516
33 spline spool – D1554

28 spline differential – N1974 / N1981
31 spline differential – N1970F / N1979

Street / Track pinion support – N1917
Drag Race pinion support – N1922

Fel Pro gasket – H1112G
LubeLocker gasket – H1111S


Description

Nodular Iron Third Member 3.062″ Bore

With a housing manufactured from D-4512 nodular iron – which is significantly stronger than the iron used on factory rear ends.

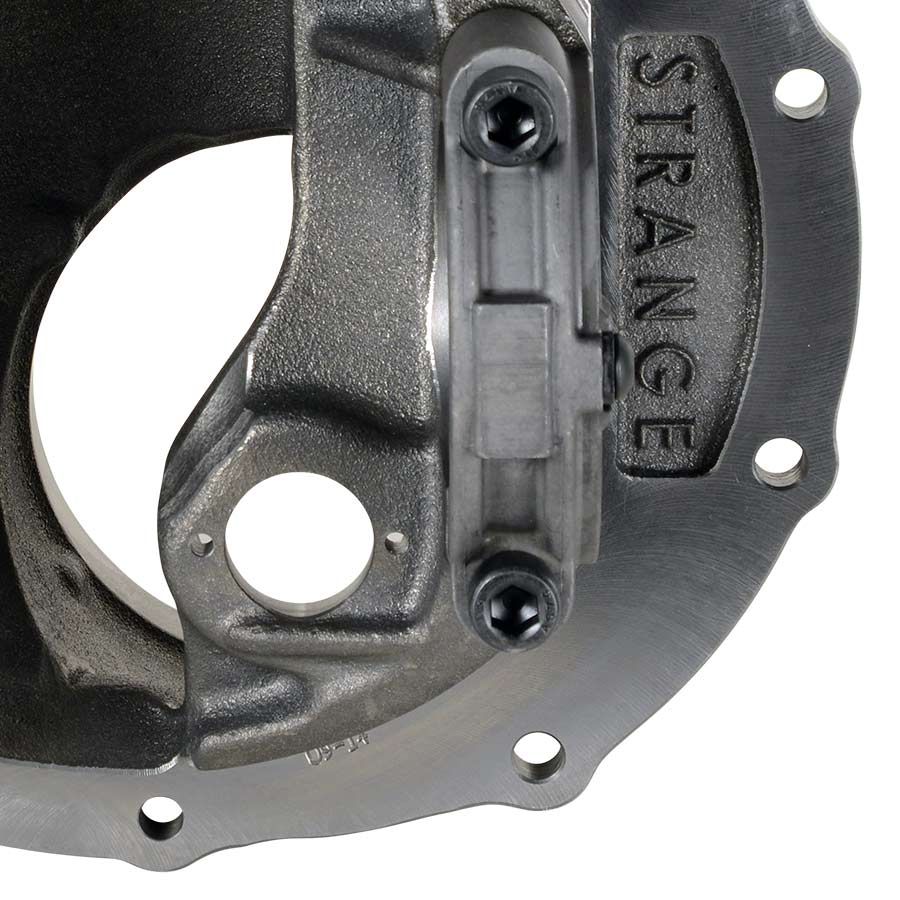

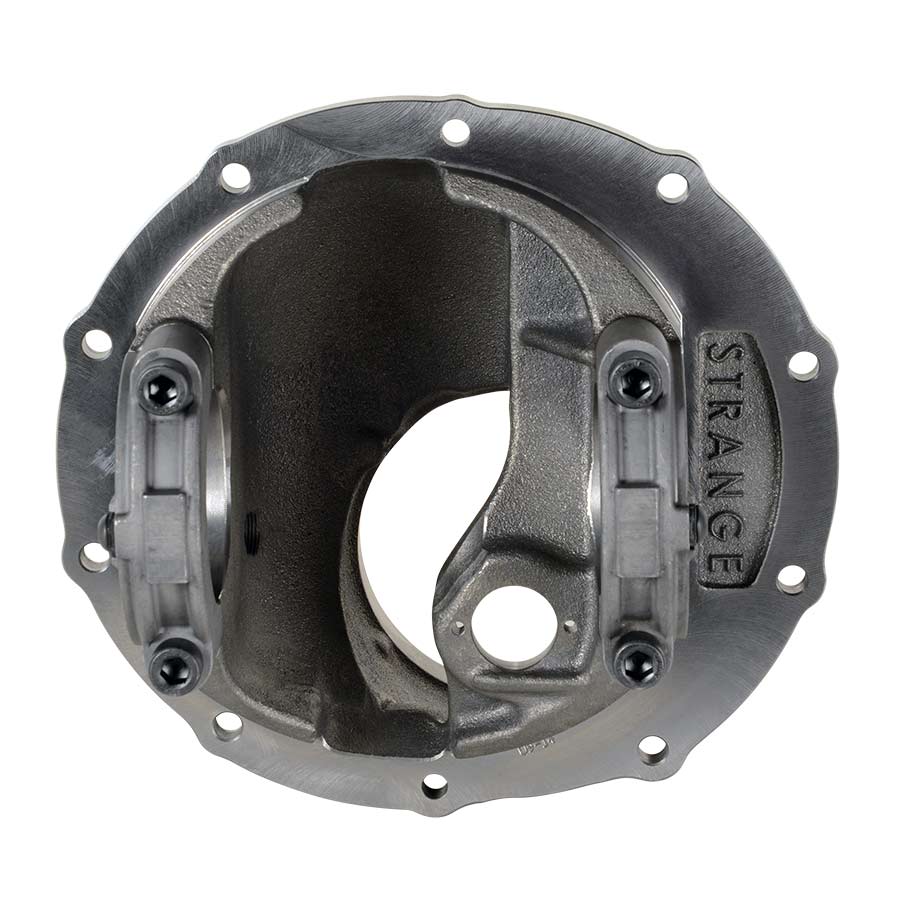

Strange Pro Iron Center Section Cases are reinforced with extra ribs and additional material; especially apparent in the areas of pinion support and carrier bearing bores. Massive chrome-moly bearing caps are retained by aircraft grade fasteners and solid steel adjuster nuts help to easily and securely setup ring and pinion preload and backlash. Specially engineered lubrication channels make Strange Pro Iron Center Sections the most reliable in the industry. All exterior bolt holes are spot-faced to prevent the possibility of lubricant leaks.

Guidelines and Torque spec
