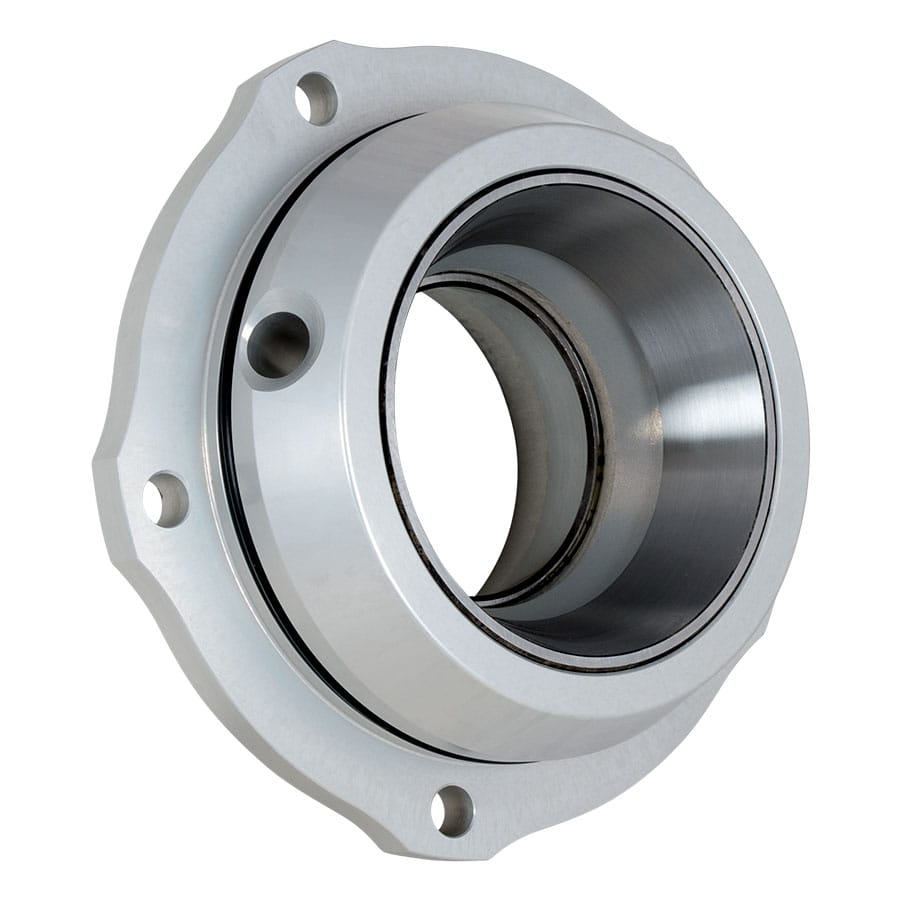

Strange 9" Ford Aluminum Pinion Support
For Drag Racing

$150.00

Part Number: N1922


Designed Specifically For Drag Racing
Fits Ford 9″ cases

Body
• Billet aluminum
• Lighter than nodular iron
• Ability to endure greater shock loads
• Reduced oil passage increases rigidity
• Machined for oversized races
• Fits 28 or 35 spline pinions
• Clear anodized finish

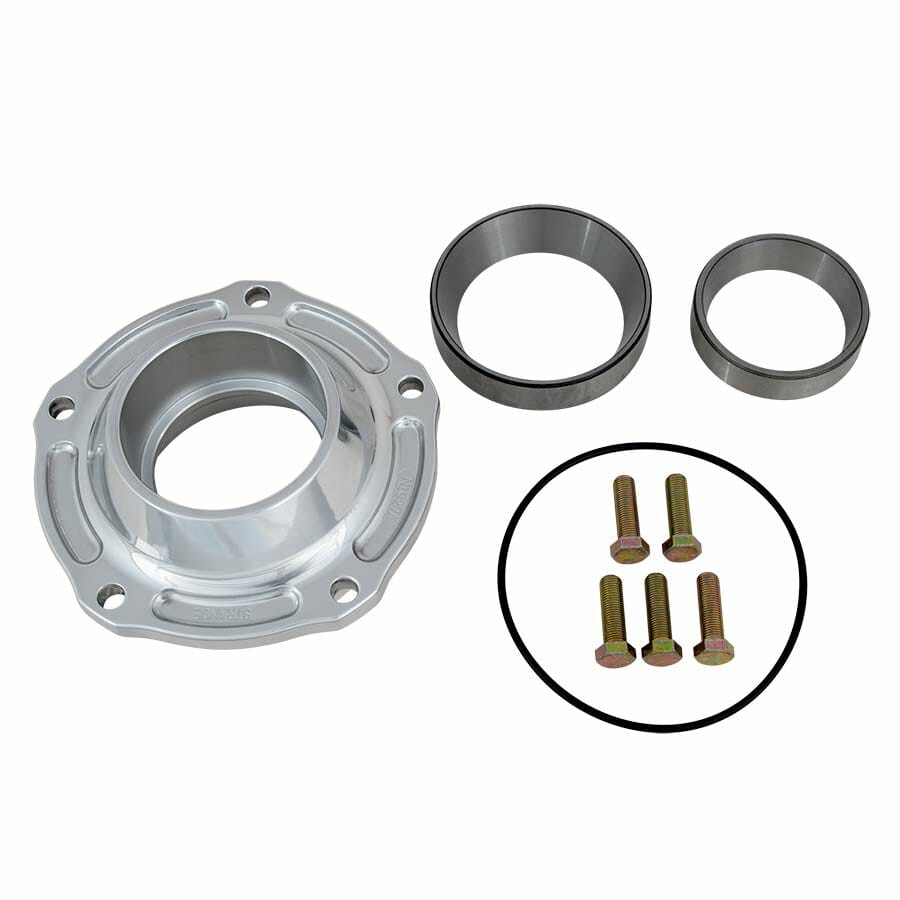

Includes
• Front & rear races – N1931 / N1939
• O-ring – N1958A
• Support bolts

Requires Bearing Kit & Yoke
Bearing sizes exceed OEM Ford and Ford Daytona
OEM yokes are too long for pinion nut to fully engage threads
Couplers are already made to the correct length

Related
Bearing kit for 28 spline pinion – N1923
Bearing kit for 35 spline pinion – N1924

Yoke for 28 spline pinion – U1603 / U1603B
Yoke for 35 spline pinion – U1604 / U1604B

Coupler for 28 spline pinion – U3627
Coupler for 35 spline pinion – U3629

Street, Street/Strip & Track support – N1917


Description

Strange Ford 9 inch pinion support, Tapered Bearing fits 9″ Ford Center Sections Used For Drag Racing.

Heavy duty Drag Race pinion support. It uses even larger front and rear pinion bearings than the Daytona or N1917, further increasing load capabilities to suit the most demanding requirements. Manufactured from billet aluminum, it offers better grain flow than billet aluminum supports. Oil channels have been reduced to allow more material around the race sections to maximize rigidity.

It can accept either 28 or 35 spline pinion gears, and comes in a clear anodized finish. The support is supplied with front and rear races installed, bolts, washers, and an O-ring. Bearing & seal kit is available separately. Manufactured from 2024-T4 billet aluminum.
