Pinion Support Bearing Kit                                                                                   For Use With 28 Spline Pinion Shaft

/, Drag Race, 9" Center Sections & Parts, 9" Center Sections & Parts, Installation Kits, Installation Parts, Ford, Ford, 9" Center Sections & Parts, 9" Center Sections & Parts, Installation Parts & Kits/

Pinion Support Bearing Kit                                                                                   For Use With 28 Spline Pinion Shaft

Pinion Support Bearing Kit                                                                                   For Use With 28 Spline Pinion Shaft

$75.00

Part Number: N1923

Application
Strange pinion supports N1922 / N2322
Using a 28 spline pinion shaft

Using a 35 spline pinion shaft? – See N1924

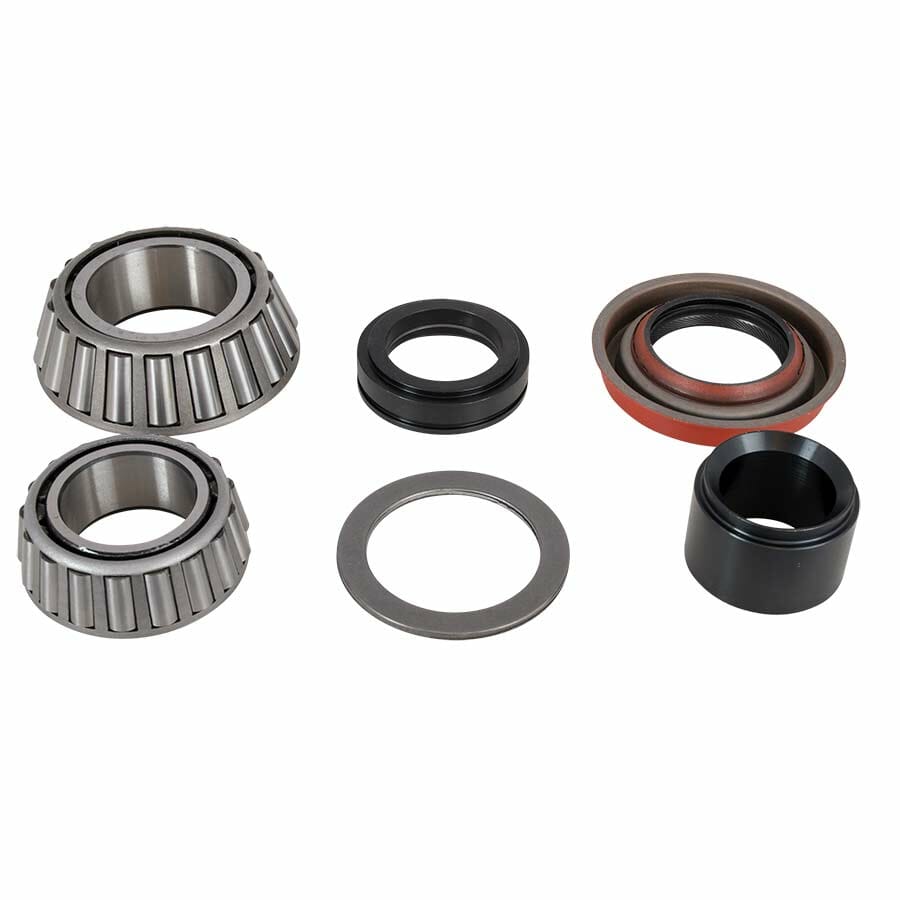

Kit Includes

Timken® front pinion bearing – N1930
Adjustable pinion preload spacer – N1919
Timken® rear pinion bearing – N1938
Rear bearing adapter collar – N1926A
Rear bearing shim – N1926D
Pinion seal – N1960

Note
New Supports Are Supplied With Races & O-ring



Related Components

Front pinion race… N1931
Rear pinion race….. N1939
Support o-ring……. N1958A

Parts List and Installation Guide pdf File

Description

Kit for N1922 / N2322 supports using 28 spline pinion

Additional information

Weight 3.35 lbs
