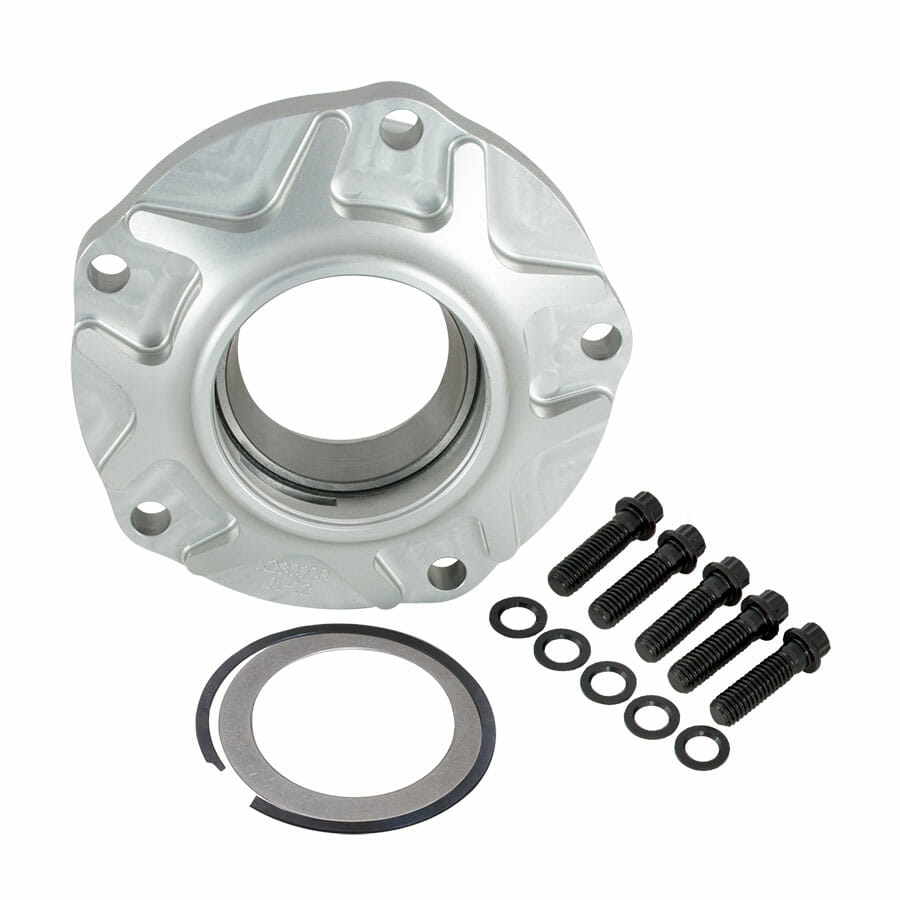

Tapered Bearing Pinion Support                                                                         For Strange HD Pro Aluminum Case

/, Drag Race, 9" Center Sections & Parts, 9" Center Sections & Parts, Pinion Supports, Street / Track, Street / Track, 9" Center Sections & Parts, 9" Center Sections & Parts, Pinion Supports, Ford, Ford, 9" Center Sections & Parts, 9" Center Sections & Parts, Pinion Supports/

Tapered Bearing Pinion Support                                                                         For Strange HD Pro Aluminum Case

Tapered Bearing Pinion Support                                                                         For Strange HD Pro Aluminum Case

$150.00

Part Number: N2322

Application
Strange HD Pro cases
N2300 / N2300P / N2303 / N2303P / N2307

Will Not Fit Any Other Cases

Features
Billet 6061-T6511 aluminum body
Clear anodized finish
Machined for oversized races
Grooved for snap ring to retain pinion seal
Able to accept 28 or 35 spline pinion with proper bearing kit

Includes
Front & rear TimkenĀ® races installed – N1931 / N1939
O-ring – N1958A
Pinion seal retaining washer & snap ring
Support bolts & washers

Note
Requires proper bearing kit and yoke or coupler
Bearing sizes exceed OEM Ford and Daytona style supports
OEM yokes will be .188″ to .313″ too long for pinion nut to fully engage threads



Related Components

For 28 Spline Pinion
Bearing kit…………………… N1923
Yokes… U2203HDA / U1603 / U1603P / U1633
Coupler……………………….. U3627

For 35 Spline Pinion
Bearing kit…………….. N1924
Yokes………. U1604 / U1604P / U1634
Coupler…………………..U3629

Description

Strange billet aluminum pinion support for HD Pro aluminum case

Additional information

Weight 5.15 lbs
